TL800
TL800

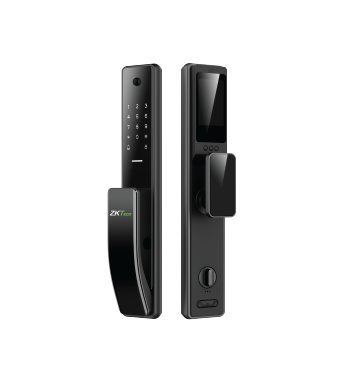

 Wi-Fi Smart Digital Lock with a Built-in Doorbell and LCD Screen

TL800 is a fully automatic smart lock with a built-in indoor monitoring OLED screen. It could unlock and lock
the door itself. TL800 is compatible with ZSmart for remote unlocking. which enhance your home security
measures.
TL800 can connect to Wi-Fi and can be compatible with ZSmart mobile app for real-time entrance monitoring.
What's more, the owner could observe the outdoor situation from the LCD screen of TL800.

  • Remote Unlocking With Mobile App
  • Audio Instructions
  • Capacitive Fingerprint Sensor
  • Smart Alerts
  • Lock Automatically
  • Wi-Fi Communication
  • Random Passcode
  • Emergency Charging Port
  • Built-in Doorbell
  • Capture Photos / Videos
Material Aluminum Alloy and Tempered Glass
Capacity IC S50 Card: 50
Fingerprint: 100
Password: 50
Communication IEEE 802.11b/g/n (2.4GHz Wi-Fi)
Video Camera 1280*720 pixel
Display LCD Screen 3.5 inch, 640*480 pixel
Power Supply 4,200mA; lithium battery
Emergency Interface Micro USB 5V
Mortise Type Chinese standard mortise (6068)
MCBF >100,000
Door Thickness 45mm to 60mm (customizable)
Static Current <80uA
Operating Temperature -25°C to 75°C
Operating Humidity 20% RH to 90% RH
Random Password Supports
Doorbell Supports
Audio Prompts English and Spanish
TF Card Slot Maximum 128 GB
Application Duplexes, townhouses, apartments, condos, and other residential areas
Dimensions Outdoor unit: 400*74*23mm (L*W*H)
Indoor unit: 400*74*34.8mm (L*W*H)
';

TL800_Data Sheet_20230915

1.63 Mb Data Sheet
2023-09-15

TL800 UM & IG English_20210907

30.08 Mb User Manual
2021-10-14
