Reliable Swing Barrier Elegance Meets Endurance

Multiple Biometric Authentication Methods
Rugged All-Weather Durability
High Performance Servo Motor
Safety and Security
IR Sensors for Enhanced Detection

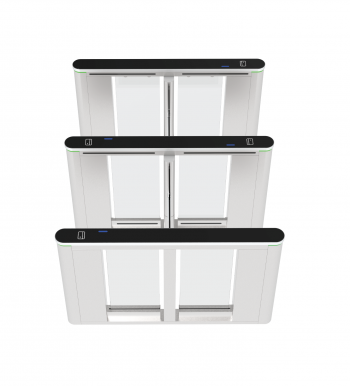

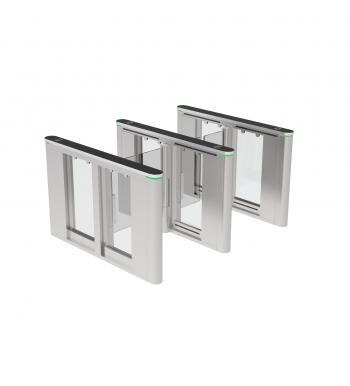

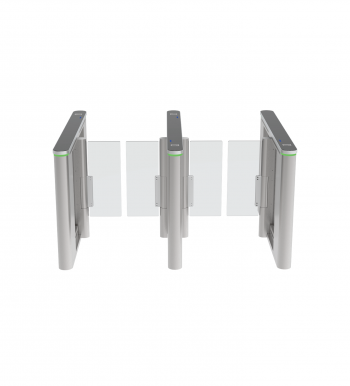

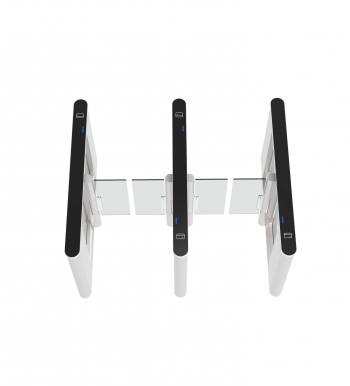

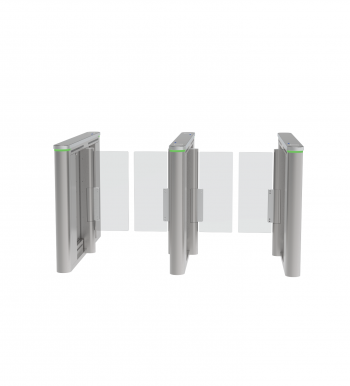

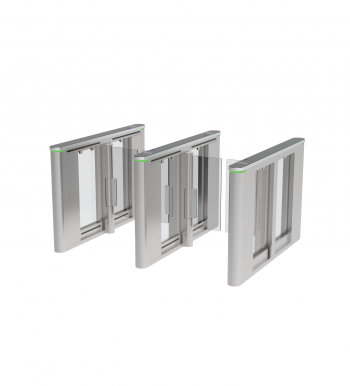

The ZKTeco SBTL8000/SBTL8200 series swing barrier provides advanced access control, blending robust security with an efficient passage experience. The transparent acrylic swing barriers and full aluminium top cover with tempered glass lid create a modern, premium aesthetic, and the SUS304 stainless steel chassis ensures durability and long-term stability.

What sets this series apart is its comprehensive integration of safety and deployment efficiency. Driven by a high-precision servo motor, the swing barrier provides smooth movement with an adjustable opening and closing time of 0.3 to 0.6 seconds, enabling efficient passenger flow while maintaining strict access control. The SBTL8000/SBTL8200 series is equipped with 12–18 pairs of infrared sensors for precise pedestrian detection and provides an adjustable lane width of 660 mm (standard) to 1000 mm (optional), accommodating diverse accessibility needs. The swing barrier is pre-assembled for rapid installation and integrates seamlessly with ZKBio CVAccess or ZKBio CVSecurity to form a comprehensive access control solution.

Multiple Biometric Authentication Methods
- Equipped with flexible under mount and pole mount authentication options, including facial recognition, RFID, and QR code (dynamic/ static), the swing barrier delivers secure, touchless access control tailored to your operational needs.
Rugged All-Weather Durability
- Achieved IPX4 water-resistant protection rating fits for all-weather conditions. The swing barrier delivers robust durability with a Mean Cycles Between Failures (MCBF) of up to 10 million, and ensures minimal downtime with a Mean Time To Repair (MTTR) of less than 60 minutes.
High Performance Servo Motor
- Designed for high-traffic environment, 0.3 to 0.6 second opening and closing time, enabling seamless passenger flow of up to 35 users per minute. Experience the perfect balance of speed and security, maintaining precise access control at every entry point.
Safety and Security
- Barriers auto-unlock on power outage or fire alarm, switching to normally open for rapid egress. The swing barrier also supports manual emergency door release to ensure unobstructed evacuation. It features anti-tailgating and anti-pinch protection enhance user safety
IR Sensors for Enhanced Detection
- The swing barrier integrates 12 pairs of infrared sensors (up to 18 pairs, optional ) for full-area pedestrian detection, enhancing antipinch and anti-tailgating safety. An internal clutch engages instantly to halt swing barrier operation, protecting users and preventing device damage.

Model Name	SBTL8000 Series SBTL8200 Series
Audio Indicator	Internal buzzer
Visual Indicator	Top LED indicator: Blue=Door closed / standby Green=Door open Red=Door close / alarm
Display	N/A
Lane Type	SBTL8000 Series: Single Lane SBTL8200 Series: Dual Lane
Lane Width (mm)	660mm (Standard) / 1000mm (Optional)
Barrier Movement Type	Swing
Barrier Material	Transparent Acrylic
Barrier Size	715mm * 295mm (L*W)
Motor	Servo motor
Movement Speed	Average 0.3s to 0.6s per movement (Adjustable open / close timing)
Movement Accuracy	N/A
Clutch	Equipped
Lid Material	Full aluminium top cover with tempered glass
Lid Options Authentication Methods	Undermount options: QR Code (Dynamic / Static) / RFID Post mount options: Facial Authentication
Chassis Material	SUS304 stainless steel
Chassis Colour	Metallic gray
IR Sensors	12 pairs (Standard) 18 pairs (Optional)
Motherboard Function	System configuration, access mode configuration
Motherboard Communication	Fire alarm port (Relay)1, RS485 port1
Controller	Not equipped, C3 series controller/ InBio series controller (optional). 3rd-party controller subject to turnstile chassis space.
Credential Options	Post mount RFID reader: (support model: Pro ID Series, KR Series) Post mount QR code reader: QR500
Flow Rate	Facial Authentication: 30 passengers per minute QR Code(Dynamic / Static): 30 passengers per minute RFID: 35 passengers per minute
Accessibility	Adult, children and elderly (with care), Disability (with care)
Power Supply	AC 100V–220V,50/60 Hz
Power Rating	40VA (Standby); 120VA (Operation)
Fire Signal	Input for voltage-free contact
Noise Level	Less than 60 dB
MTTR	60 minutes
MCBF	10 million
Weight	SBTL8000 Series: 220kg SBTL8200 Series: 130kg
Dimensions ( LWH )	16131341017.5mm (standard ;IPX4 protection rating) 16131341031.5mm (optional ; IP65 protection rating)
Dimensions of Product Parts with Packaging ( LWH )	SBTL8000 Series: 17703701125mm (2 boxes) SBTL8200 Series: 17703701125mm (1 box)
Operating Temperature	−20°C to 70°C
Operating Humidity	0% to 95% RH (non-condensing)
Certifications	CE, FCC
Ingress Protection Rating	IPX4 for water resistant(standard); IP65 for dustproof and waterproof(internal componenets customized upon customer request) Note: Please be aware that selecting the IP65 ingress protection rating will increase the overall device height by 14mm compared to the standard IPX4 configuration.
Supported Software	ZKBio CVAccess / ZKBio CVSecurity (depends on equipped access controller)
Safety Features	Power off unlock device/ Fire alarm active door release
Security Features	Anti-tailgating, anti-pinch
Product Delivery	Pre-assembled for easy installation
Application Environment	Indoor / outdoor
Site Preparation	Flat and level finished floor (optional base plate for unfinished floors)
Security Level	Middle
Emergency Mode	Swing barrier unlocks automatically
Packing Material	Wooden Box
