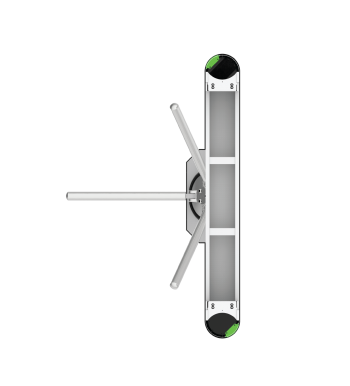

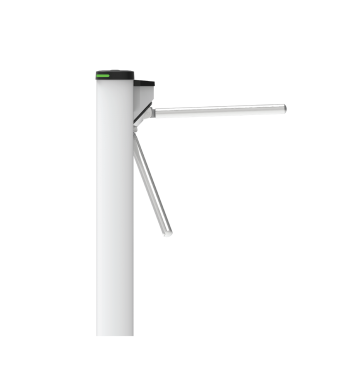

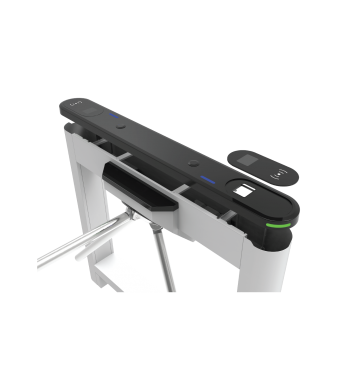

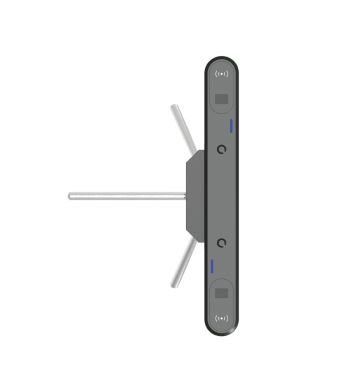

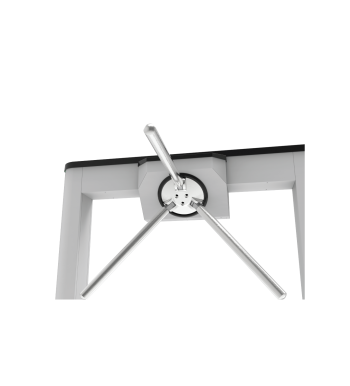

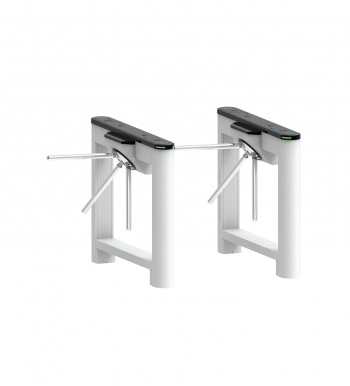

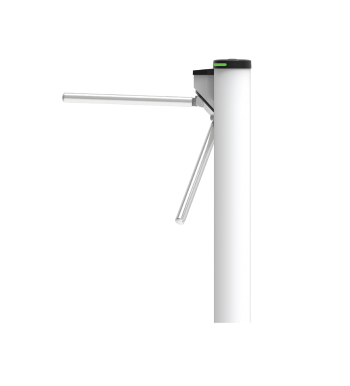

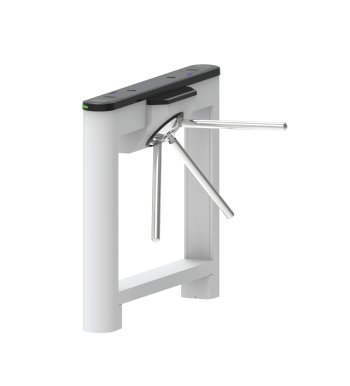

Drop Arm Tripod Turnstile

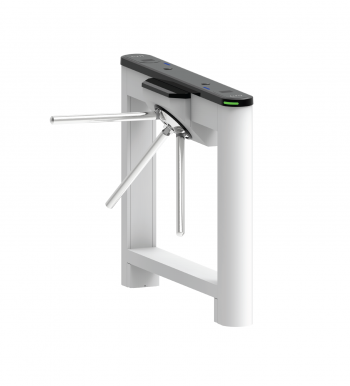

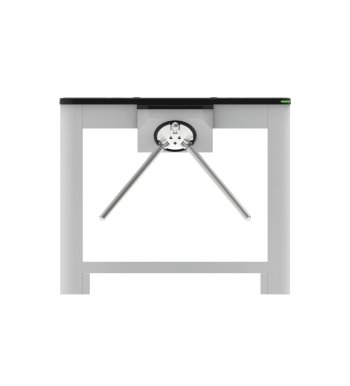

The Saturn-T1000 is a value-driven drop arm tripod turnstile designed for secure and efficient access control in public and commercial areas. Its cabinet is constructed from cold-rolled SPCC steel (GB700) with powder coating, paired with the SUS304 stainless steel tripod arm to maximize durability.
The pearl white turnstile features a 550mm lane width, supports throughput rate up to 25 persons per minute, and operates quietly at less than 65dB. In emergencies or power outages, the arm drops automatically for safe evacuation. Saturn-T1000 also features bi-directional operation and adjustable arm modes.
Multiple authentication options are available, including facial recognition, RFID and QR code (static and dynamic). The Saturn-T1000 seamlessly integrates with the ZKBio CVAccess and ZKBio CVSecurity for comprehensive security management.
| Model | Saturn-T1000 Series |
| Audio Indicator | Buzzer |
| Visual Indicator | LED Indicator Blue: Standby Green: Access Granted Red: Alarm / Error |
| Display | N/A |
| Lane Type | Single lane (Support bi-directional entry / exit lane) |
| Lane Width | 550mm |
| Barrier Movement Type | Rotating (Tripod) |
| Motor | Not speci ed |
| Movement Speed | N/A |
| Movement Accuracy | N/A |
| Clutch | N/A |
| Lid Material | Polycarbonate + 2.5D tempered glass |
| Lid Options Authentication Methods |
RFID / Facial Recognition / QR code (Dynamic / Static) |
| Chassis Material | Cold-rolled SPCC Steel (GB700) (with powder coating nishing) |
| Chassis Color | Pearl White (PWH) |
| Tripod Rod Material | SUS304 Stainless Steel |
| IR Sensors | N/A |
| Motherboard Function | System mode con guration. Access mode con guration |
| Motherboard Communication | Fire alarm Port (Relay)*1, RS485 port *1 |
| Controller | Access controller Options: C3, InBio series or third-party controller subject to turnstile chassis space. |
| Credential Options | Post mount Facial Recognition Device: G4 Pro Under mount QR code Reader: QR500 Under mount RFID Reader: ProID10 |
| Flow Rate | Face: 15 Passengers per minute RFID: 25 Passengers per minute QR code: 25 Passengers per minute |
| Accessibility | N/A |
| Power Supply | AC 110V~220V, 50/60Hz, DC 12V |
| Power Rating | Operating: 40W, Standby: 10W |
| Fire Signal | Input for voltage-free contact |
| Noise Level | <65dB |
| MTTR | N/A |
| Weight | 25kg |
| Dimensions (L*W*H) | 1200*734*1020mm |
| Dimensions with Packaging (L*W*H) |
1300*305*1106mm |
| Operating Temperature | -20°C to 70°C |
| Operating Humidity | 20% to 80% RH (Non-condensing) |
| Certifications | CE, FCC |
| Ingress Protection Rating | Self-laboratory test: equivalent to IPX4 |
| Supported Software | ZKBio CVAccess / ZKBio CVSecurity (Compatible with software only when connected to the control panel) |
| Safety Features | Auto drop arm during power failure and re alarm emergency |
| Security Features | Anti-tailgating |
| Product Delivery | Pre-assembled |
| Application Environment | Indoor / Outdoor (If sheltered) |
| Site Preparation | Flat and level nished oor (optional base plate for un nished oors) |
| Security Level | Middle |
| Emergency Mode | Drop arm function engages during power outage or re alarm events |
| Packing Material | Carton box |
