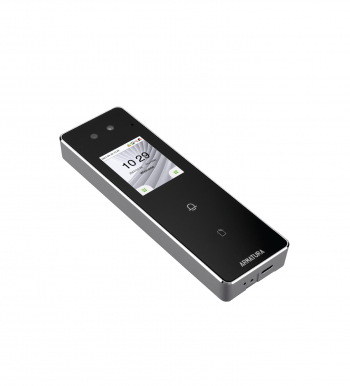

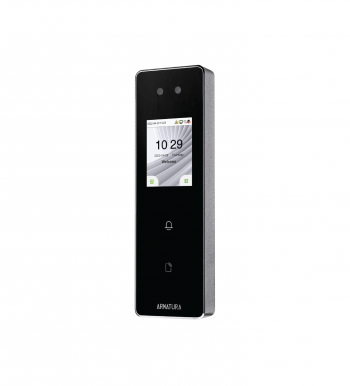

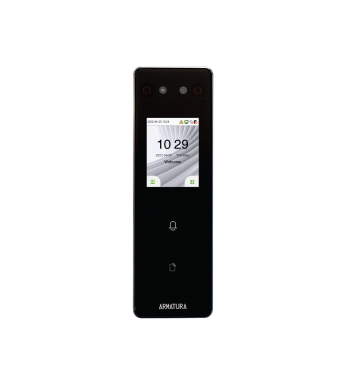

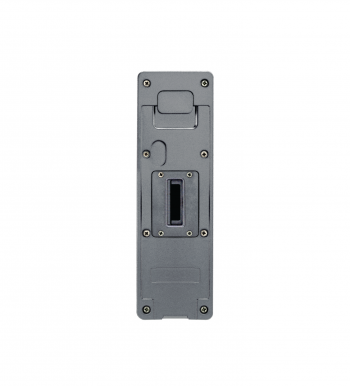

| Model | OmniAC20 |
| Primary Power | DC 12V@3A-24V@1.5A，Power Max. 10W |
| Operating Frequency/ Standard |
125KHz
13.56MHz: ISO14443 types A&B, JIS X6319, ISO 15693
2.4GHz Bluetooth (BLE)
|
| RS-485 connection | RS-485 standard / OSDP V2.0/ 2.2* |
| CPU | 1.2 GHz Quad Core ARM Processor |
| NPU | 2.4 TOPs NPU |
| Memory | 1GB RAM + 8GB Flash |
| Camera |
Face Automatic Exposure
Palm Automatic Exposure
Face Tracking
Palm Detection
50Hz/60Hz Anti-Flicker
Dual Camera
Visible Light Camera: CMOS, 2 MP resolution (Output image 720*960pixels)
IR Carmera: Global shutter CMOS, 1.3 MP resolution (Output image 720*960pixels)
|
| Ethernet network connection | 10 Base-T/ 100 Base-TX, Auto MDI/ MDIX |
| Data Protection |
Complies with TLS 1.2 for end-to-end secure communication channel Secured Communication between Standalone Terminal & Server)
AES128 (Secured Communication between Standalone Terminal & OSDP Reader & Access Control Panel) |
| Number of Ports |
1*TCP/IP
1*RS-485
4ch TTL Inputs
1ch TTL Output
3 relays
|
| Inputs |
Wiegand, Button, Sensor, Aux
|
| Outputs |
Wiegand, Lock Relay, Alarm Relay (Relay via dry contacts)
|
| Normally Open Contact Rating |
1A @30Vdc resistive
|
| Normally Closed Contact Rating |
1A @30Vdc resistive
|
| Tamper Switch |
Magnetic tamper detection system
|
| On-Board Monitor |
Size: 2.4", Resolution: 240*320 , Touch Screen，TFT LCD
|
| Audio Indicator |
Internal speaker with adjustable intensity (Configurable on UI)
|
| MIC |
Supported
|
| Video Intercom |
Support Standard SIP V2.0
|
| User Capacity |
50,000 (Standard), 100,000 (Optional)
|
| RFID Card Capacity |
50,000 (1:N)/ 50,000 (1:1) (Standard);
100,000 (1:N)/ 100,000 (1:1) (Optional)
|
| Maximum RFID Card Number Length |
Wiegand In & Out (up to 128 bits)
|
| Face Capacity |
10,000 (1:N)/ 50,000 (1:1)
|
| Palm Capacity |
5,000 (1:N)/ 20,000 (1:1)
|
| RFID Reading Distance |
13.56MHz & 125kHz: Up to 1.96"/ 50 mm (depending on environment and transponder)
|
| Face Authentication Distance |
15.7" - 55.1" (400mm - 1400mm)
|
| Face Authentication Posture Adaptability |
Yaw ≤ 30°, Pitch ≤ 30°, Roll ≤30°
|
| Face Authentication Accuracy |
True Accept Rate (TAR)=99%@, False Accept Rate(FAR)=0.01%
|
| Face Authentication Mode |
1:1, 1:N
|
| Face Authentication Speed |
< 100ms (Field Test Result)
|
| Face Authentication Liveness Detection |
Yes (Infrared-visible light mode, Visible Light Mode)
|
| Face Mask Detection |
Yes
|
| Palm Authentication Distance |
7” -15.7” (1800mm - 400mm)
|
| Palm Authentication Posture Adaptability |
Yaw ≤ 45°, Pitch ≤ 30°, Roll ≤ 90°, Bend ≤ 30°
|
| Palm Authentication Accuracy |
True Accept Rate(TAR)=98.7%@, False Accept Rate(FAR)=0.01%
|
| Palm Authentication Mode |
1:1, 1:N
|
| Palm Authentication Speed |
< 140ms (Field Test Result)
|
| Palm Authentication Liveness Detection |
Yes (Infrared Light Mode)
|
| QR Code Detection |
QR Code Scanner: Supported
QR Code Scanning Pattern: Area image (720*1280 pixel array)
QR Code Scan Angle: Horizontal: 37.9°/ Vertical: 62.9°
QR Code Capability: QR Code (Armatura ID); Static QR (customizable)
QR Code Scanning Performance*：
Armatura ID QR Code：0.5''-2.05'' (12.7mm - 52.07mm);
BioCode：0.59''-1.26'' (15mm - 32mm)
|
| Recommend Installation Height |
55" (140cm) (Using the plate with tilt angle)
59" (150cm) (Plate with horizontal angle)
|
| Transaction Buffer |
Records: 1,000,000
|
| Access group |
99
|
| On-Board Access Point Control |
1 access point on board
|
| On-Board Reader Support |
1 (OSDP over RS-485) or 1 (Wiegand Input)
|
| Protection / Resistance |
Weather & Dust Proof Protection Rating compliant with IP66
|
