M6

Time Attendance Terminal features Facial Recognition technology
Integrates with the Cloud-Based Management System BioTime Cloud

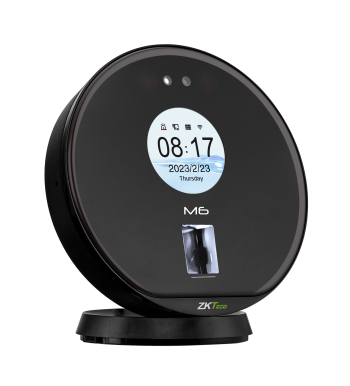

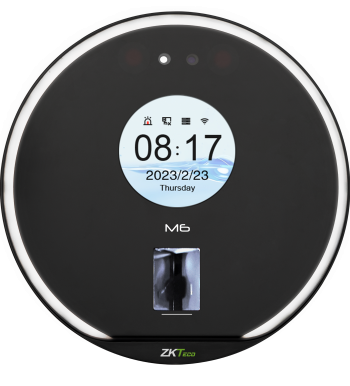

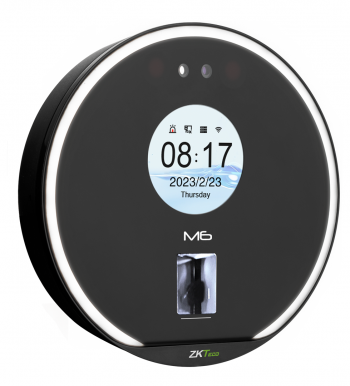

ZKTeco's M6 is a time & attendance terminal with multi-biometrics authentications and supportsconnecting BioTime Cloud. Also, M6 adopts the facial recognition technology and equips with the in-glass fingerprint verification method, providing an all-rounded time and attendancemanagement.

When M6 connects to BioTime Cloud, users can enjoy many features, including remote user registration and real-time reporting. Additionally, with BioTime Cloud, users can create flexible timesheets through M6, setting up timetables with multiple report formats to satisfy various time and attendance management needs.

  • Visible light facial recognition technology and in-glass fingerprint verification

  • Multiple authentication methods: Face / Fingerprint / Card

  • Card modules: 125kHz ID Card (EM) / 13.56MHz IC Card

  • Communication: TCP/IP / 2.4GHz Wi-Fi / Bluetooth 4.2

  • Supports simple access control function

  • Wall-mounted and desktop-mounted; 2-in-1 backplate design

  • Compatible with BioTime Cloud Cloud-Based Software & ZKBio TimeCloud Mobile App

Display

2.8’’ Non-touch LCD Display (40mm circular display area), 240x320 Pixel

Face Capacity

3,000

Fingerprint Capacity

3,000

Card Capacity

3,000

Transactions

150,000

Communication

TCP/IP, 2.4GHz Wi-Fi (IEEE 802.11b/g/n), Bluetooth 4.2

Standard Functions

ADMS, DST, T9 Input, Camera, 14-digit User ID, Multiple Verification Methods

HardWare

1.0GHZ Dual Core A7 CPU, 256MB RAM/512MB ROM, 1MP Binocular Camera

Access Control Interface

3rd Party Electric Lock, Door Sensor, Exit Button

Optional Functions

125kHz ID Card (EM) / 13.56MHz IC Card

Biometrics Algorithm

ZKFace VX3.5 & ZKFinger V10.0

Facial Recognition Speed

1s

Facial Recognition Distance

0.3 to 1.6m

Facial Recognition Rate

FAR < 0.001%; FRR < 1%

Supported Software

BioTime Cloud

Power Supply

12V / 1.5A

Working Humidity

20% to 80%

Working Temperature

0°C to 45°C

Dimensions (mm)

124.92 * 27.1 (Diameter*Width)

M6 Time and Attendance with Facial Recognition Leaflet_April 2023

0.91 Mb Data Sheet
2023-01-16
Download

ZK_D3 Series QSG_EN_v1.3_20230309_105X120mm April 2023

0.9 Mb Quick Start Guide
2023-04-05
Download

ZK_M6 Series IG EN_v1.1_20230116

3.24 Mb User Manual
2023-01-16
Download
