FaceKiosk-H13A
FaceKiosk-H13A
  • Visitor Management Firmware
  • Support QR code modules
  • IP65 (waterproof and dustproof)

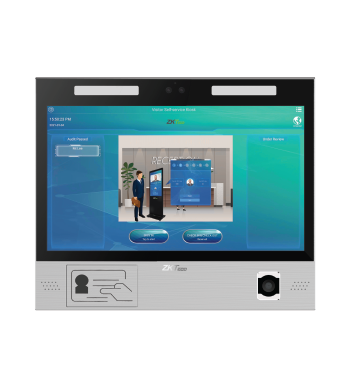

FaceKiosk-H13A, our 13.3-inch touch screen multipurpose facial recognition smart Kiosk with an Android system is designed to provide a friendly and interactive user experience by incorporating a QR Code module and RFID module in it.

FaceKiosk-H13A has a range of optional module functions available based on the FaceKiosk series including a built-in RFID card reader and QR Code scanner which can verify the user's identity not only through facial recognition but also QR Code and smart card even hybrid verification.

ZKTeco EDK (Facial Recognition, Age, and Gender Assessment) based on the Android platform is combined with a touch screen for facilitating the rapid deployment of third-party apps providing customers with high quality and stable hardware development environment.

Relying on the ZKTeco technology and synergizing with ZKBioSecurity, BioTime, and other ZKTeco software, it can be applied to many scenes and fields such as visitor self-service, conference display, e-learning classes, and so on.

  • Standard Firmware: Visitor Management
  • Support ID Card module (Optional: IC Card module)
  • Support QR code modules (Optional: fingerprint modules; recognition modules for national ID cards of Argentina, Chile, and Peru)
  • Support 1:1 and 1:N face comparison
  • Support TCP/IP, USB-Host, Wi-Fi
  • IP65 (waterproof and dustproof)
  • Integrated binocular camera with anti-spoofing function
  • Interactive operation experiences
  • Unique registration, one facial template per user
  • Strong flexibility and adaptability in applications
  • Elegant appearance
Record Capacity 100,000
Facial Template Capacity 10,000
User Capacity 10,000
Fingerprint Capacity 10,000
 ID/IC Cards 10,000
Communication TCP/IP, Wiegand, Wi-Fi
Screen Dimensions 13.3-inch capacitive touch screen
Resolution 1920*1080 pixels
Communication Ports 2*USB, 1*RJ45, TF card slot, 1*HDMI, RS232/485
Camera Pixel 2-megapixel
Operating System Android 5.1.1
RAM 2GB DDR3
ROM 16GB
GHz 1.8GHz
CPU Quad-core A17 1.8GHz (ZKTeco boosted)
Power Supply 12V-3A
Operation Environment
Operating Temperature: 0 ~ 50°C (32 ~ 41°F)
Operating Humidity: <90%
Storage Temperature: -40 ~ 60°C (-40 ~ 140°F)
Storage Humidity: 20% ~ 90%
Dimensions (L*W*H) 354 * 50 * 1420 mm (13.94 * 1.97 * 55.91 in)
';

FaceKiosk-H13A Data Sheet

0.53 Mb Data Sheet
2021-03-09

FaceKiosk-H13 User Manual

2.26 Mb User Manual
2021-03-09

Facekiosk-H13 Quick Start Guide

1.18 Mb Quick Start Guide
2021-03-09
