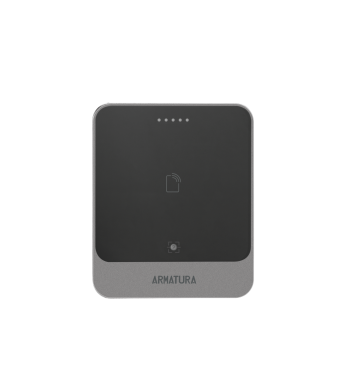

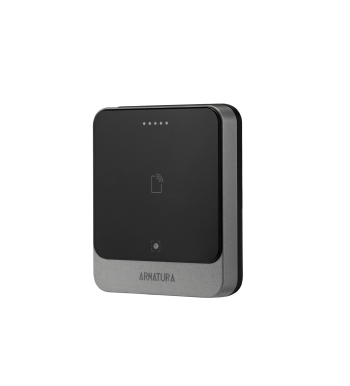

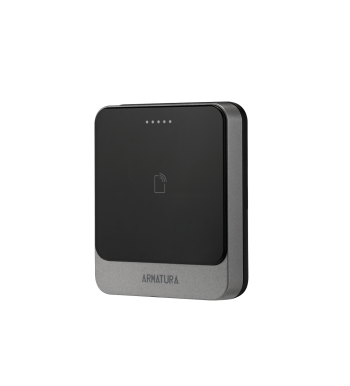

| Internal Number | EP20C | EP20CK | EP20CQ | EP20CKQ |
| Operating Frequency / Standards |
125 kHz
13.56 MHz: ISO14443 types A & B, ISO15693
2.4 GHz Bluetooth
|
|||
| Functions | RFID, Bluetooth 5.2 | RFID, Bluetooth 5.2 and QR code | ||

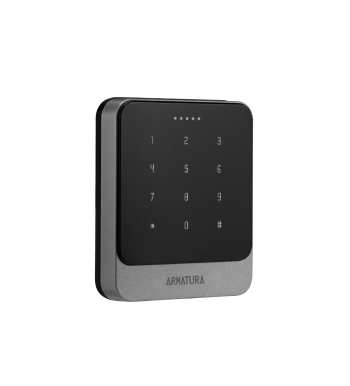

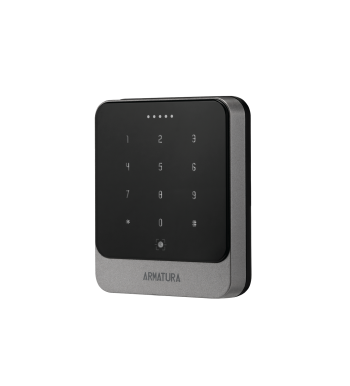

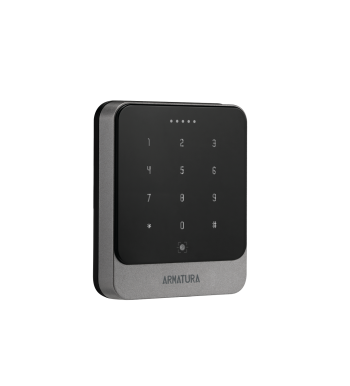

| Keypad | N/A | Touch Keypad | N/A | Touch Keypad |
| QR Code Scanner | N/A | Supported | ||
| QR Code Scanning Pattern | N/A | Area image (648*488 pixel array) | ||
| QR Code Scan Angle | N/A | Horizontal: 66°/ Vertical: 50° | ||
| QR Code Scanning Print Contrast | N/A | Print Contrast: 25% minimum reflectance difference
Rotation, Pitch, Skew: 360°, +/-40°, +/-60°
|
||
| QR Code Capability | One-Dimensional Code:
UPC-A , UPC-E, UPC-E1, EAN-8, EAN-13, EAN-14, EAN-128, UCC128, ISBN/ISSN,
CODE11, CODE32, CODE39, CODE39 Full ASCII, CODE93, CODE128, Interleaved 2 of 5 code, Industrial 2 of 5 code, Matrix 2 of 5 code, Toshiba code, UK/Plessey, GS1
Two-Dimensional Code: QR code, PDF417, Data matrix, MicroPDF417, Aztec
|
|||
| QR Code Scanning Performance* | N/A |
Narrow Width
6.0 mil (Code128)
9.0 mil (Code128)
15.0 mil (Code128)
20.0 mil (Code128)6.0 mil (QR)
9.0 mil (QR) 15.0 mil (QR) 20.0 mil (QR) |
Depth of Field
2.0"-3.1" (5cm-8cm)
2.0"-4.7" (5cm-12cm) 2.0"-2.3" (5cm-6cm) 2.3"-7.9" (6cm-20cm) 2.0"-3.5" (5cm-9cm) 2.0"-6.3" (5cm-16cm) |
|
| Communications & Panel Connection | Wiegand
OSDP (v2.2) via RS-485 (Up to 128bits SCP Secure Communication)
|
|||
| Reading Distance | 13.56MHz & 125kHz: Up to 2.3"/60 mm (depending on environment and transponder)
Up to 393.7"/ 10m with a Bluetooth Smartphone (configurable distances on each reader)
|
|||
| Data Protection | AES128 (Secured Communication between Reader & Controller)
Secure Data Storage in EAL6+ Certified Crypto Chip
|
|||
| Visual Indicator | RGB LEDs (Configurable By 'Armatura Connect' Mobile APP) | |||
| Audio Indicator | Internal buzzer with adjustable intensity
(Configurable By 'Armatura Connect' Mobile APP)
|
|||
| Power Requirement / Power Supply | 9 VDC to 24 VDC (Below 0 degrees, the reader needs separate power supply. Above 0 degrees, a single reader requires a minimum of 2.4W power. Below 0 degrees, a single reader requires a minimum of 8W power) | |||
| Operating Temperature | -22°F - 158°F /-30°C to 70°C | |||
| Dimensions | 3.54"W x 4.24"H x 0.86"D (89.8 x 107.8 x 21.9mm) | |||
| Tamper Switch | Magnetic tamper detection system | |||
| Certifications | CE, FCC, RoHs3.0, WEEE，UL294, IEC EN/ BS EN 60839 Grade 4 | |||

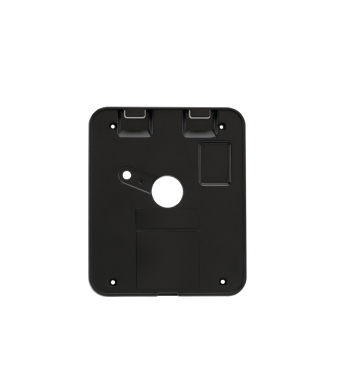

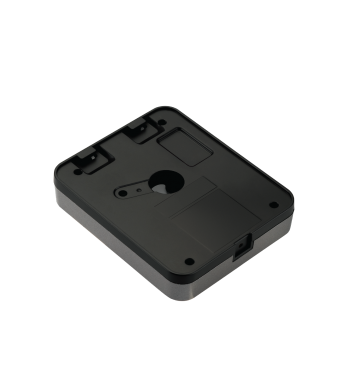

| Mounting | Suited for Asian / European / single-gang installations or any flat surface mounting | |||
| Protection / Resistance |
Weather & Dust Proof Protection Rating compliant with IP68 Reinforced Vandal-proof Structure IK10 certified
|
Weather & Dust Proof Protection Rating compliant with IP68 Reinforced Vandal-proof Structure IK07 certified
|
Weather & Dust Proof Protection Rating compliant with IP68 Reinforced Vandal-proof Structure IK07 certified
|
Weather & Dust Proof Protection Rating compliant with IP68 Reinforced Vandal-proof Structure IK07 certified
|
| UV Stability | Nil structural degradation for the life of the reader in 3 years | |||
| Housing Material | Polycarbonate UL94-V0 & UL746C (F1) | |||
| Remarks:
**Standard version provides “Read only” function. Customization is required for “Read & Write” function.
*This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/)
QR scanning performance was resulted in a laboratory testing environment, the luminance was recorded as 250 Lux
|
||||
