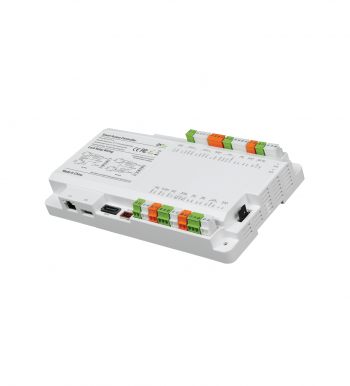

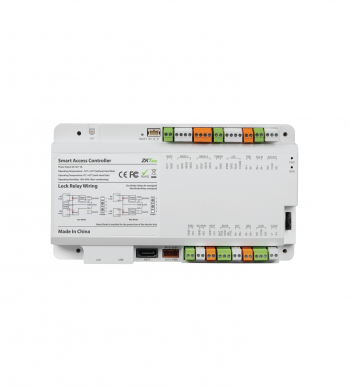

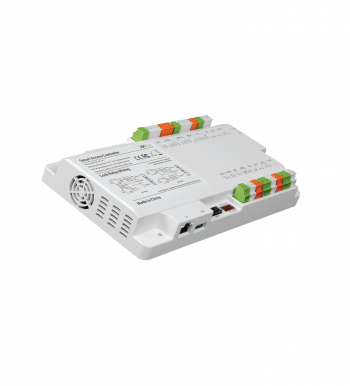

The CVEdge 160 by ZKTeco is an AI-powered access control controller with video analytics. It provides enhanced access control management and delivers greater security and convenience.
The CVEdge 160 supports multiple authentication methods, including fingerprint authentication, RFID, QR code (static) and password verification. These authentication methods can be configured in various combinations to meet diverse risk profiles.
When CVEdge 160 is paired with ZKTeco’s DE10 door expansion units, it can manage a maximum of 16 doors, allowing for scalable door control. Alternatively, the CVEdge 160 provides primary-secondary mode, connecting as many as 15 secondary CVEdge 160 units, making it ideal for campuses, banks, hospitals, and retail warehouses.
More importantly, CVEdge 160 stands out due to its video analytics functionality, including object detection, line-crossing detection and intrusion alarm. The CVEdge 160 can connect up to four IP cameras to monitor entrances from different angles and coordinate video analytics with access control for unified monitoring and event review. For instance, the area-intrusion alarm can be linked to access event to prevent tailgating, ensuring that only one person passes per valid credential. The CVEdge 160 also supports a 3.5-inch surveillance-grade HDD for local recording. Each alert event can trigger video capture for forensic review. Video structured search helps operators quickly locate relevant event footage.
CVEdge 160 provides flexible connectivity for easy setup and unified management. Its on-board web console enables direct login from PC or mobile web browsers, even via device’s Wi-Fi AP mode, so that you can manage devices, configure personnel management, access control and video analytics management, plus perform online firmware upgrade with no external server required.
| Model | CVEdge 160 |
| Operation System | Linux |
| Hardware | CPU: Quad Core with max. clock rate 1.5GHz RAM: 2GB eMMC: 16GB Compute Power: 4 Tops |
| Authentication Method | Fingerprint / RFID / QR code (static) / Password |
| Access Point Capacity | Onboard Access Point: 1 Scalabe Door Control Points: up to 16 via ZKTeco's DE10 door unit OR via Primary-Secondary mode |
|
Type of Reader Supported |
RS-485: ZKTeco RS-485 Protocol / OSDP (Version 2.1.7) Wiegand: 26 / 34 / 66-bit (via WR485) (Coming Soon) |
| IO Expansion Board Capacity | 8pcs EX0808 (RS-485 connection) |
| User Capacity | 5,000(Optional: 100,000) |
| Card Capacity | 5,000 (1: N) (Standard) Optional: 100,000 (1:N) |
| Fingerprint Template Capacity | 10,000 (1: N) (Standard) Optional: 20,000 (1:N) |
| Facial Template Capacity | N/A |
| QR Code Capacity | 5,000 (Static QR Code) ; Optional: 100,000 |
| Transaction Capacity | 300,000 |
| Fingerprint Authentication Speed | less than 0.5sec (Fingerprint) |
| False Acceptance Rate (FAR) % | FAR 0.0001% (Fingerprint) |
| Fingerprint Authentication Algorithms | ZKFingerprint Algorithm V13.0 (Default) / V10.0 |
| False Rejection Rate (FRR) % | FRR 0.01% (Fingerprint) |
| Number of Inputs | 1* Exit Button, 1* Door Status, 1 * AUX Inputs,1* Tamper,1* Fire Alarm;or 64 (with 8pcs of EX0808 IO expansion board) |
| Number of Outputs | 1* Form C Relay for Lock, 1* Form C Relay for Aux Output,1* Audio output;or 64 (with 8pcs of EX0808 IO expansion board) |
| Max. Card Number Length | 16 digits |
| QR Code | Standard QR code (Static) |
| Communication | TCP/IP * 1 RS-485: ZKTeco RS-485 / OSDP (Optional) * 2 USB 3.0: Type A (USB Drive Only) * 1 SATA: (3.5" SATA HDD, up to 20TB) * 1 Wi-Fi: IEEE 802.11 b/n/g @ 2.4 GHz ; AP mode Aux Inputs * 1, Aux Outputs * 1, Electric Lock * 1, Door Sensor * 1, Exit Button * 1, Alarm * 1, Tamper * 1, Audio out * 1 |
| Standard Functions | Webserver, Up to 14-digit User ID, Access Levels, Access Groups, Holidays,Anti-passback, Anti-tailgating, Linkage, Global Linkage, Multiple Authentication Methods,Power Detection, LED Status Output, Primary-Secondary Mode |
|
Access Control Interface |
RS-485 (RS-485 Card Reader / Fingerprint Reader / QR code Reader);Wiegand (Card Reader) (Coming soon) |
Intelligent Video Analytics (IVA) |
|
|
Audio and video |
Video Channel: 4 Decoding Format: H.264/H.265; Split Screen: 4; Decoding Capacity: 4; Synchronized Playback Channels: 4; Maximum video resolution: 8MP/5MP/3MP/1080P/960P/720P/D1VGAV4CIF/DCIF/2CIF/CIF/OCIF |
|
Absent Detection (Standard) |
Absent detection, Detects employee absence from designated stations. Configurable: zone occupancy count, motion sensing, time threshold. Alarm triggered when absence duration exceeded |
|
Cross-line Count (Standard) |
Cross line statistics(target counting) Configurable detection lines within zones count targets crossing in/out. Supports flow statistics alarm (triggers when count reaches threshold within statistical interval) and cumulative statistics alarm (triggers when total count reaches threshold over defined period). Countable targets: person, motor vehicle, non-motor vehicle |
|
Object Detection (Standard) |
Supports missing object detection, abandoned object detection, and object removal / abandonment detection |
|
Area Detection (Standard) |
Monitors zone entry, exit, entry / exit, loitering, and intrusion (persistent alarm on zone breach) |
|
Tripwire Detection (Standard)
|
Triggers when persons, motor vehicles, or non-motor vehicles cross designated lines |
|
Anti-Tailgating (Standard) |
Validates single-person entry during access authentication. Video intrusion detection counts individuals in the verification zone-door unlocks only when exactly one person is detected. Door remains locked if count exceeds one or no person is detected |
|
Video Structured Search (Coming soon) |
Fast recorded video search based on on customizable criteria by person attributes (gender, age, clothing color, eyewear, mask, headwear) or vehicle attributes (licence plate number, licence color, vehicle type/color) |
|
Optional Detection |
Spark & Smoke Detection, Safety Hat Detection, Bear Detection, Pose Detection (Hands-up Duress mode), Pose Detection 3D(Fall Detection) |
General |
|
|
Power Supply |
DC 12V 5A |
|
Operating Temperature |
-10℃ to 55℃ (Without Hard Disk) 0℃ to 45℃(With Hard Disk) |
|
Operating Humidity |
10% to 90% RH (Non-condensing) |
|
Dimensions |
200mm*111mm* 32mm (L*W*H) |
|
Gross Weight |
0.55 Kg |
|
Net Weight |
0.35 Kg |
|
Ingress Protection Rating |
N/A |
|
Supported Software |
On-board web console |
|
Installation |

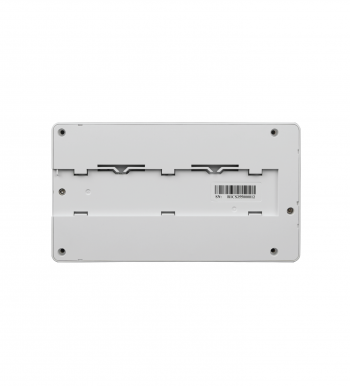

Supported DIN35 Rail / Wall mount /Metal Enclosure (Optional) |
|

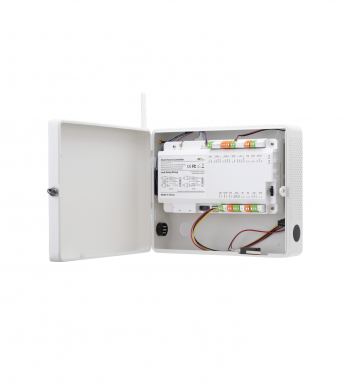

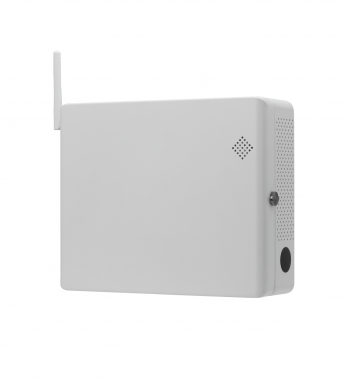

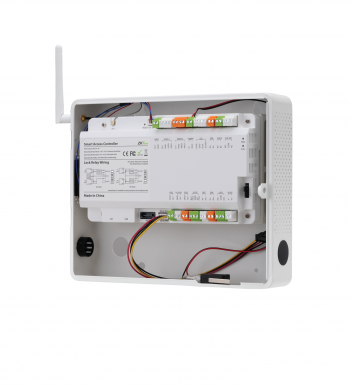

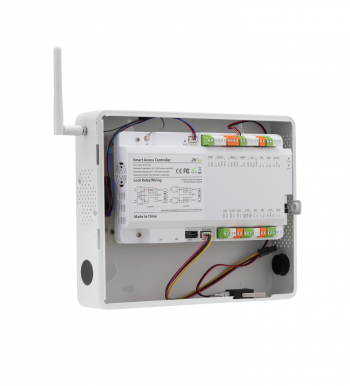

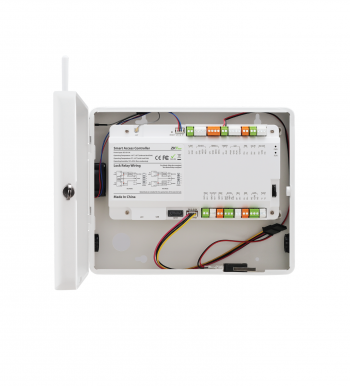

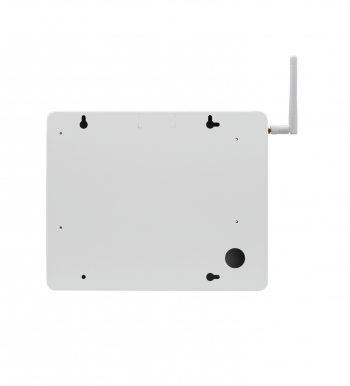

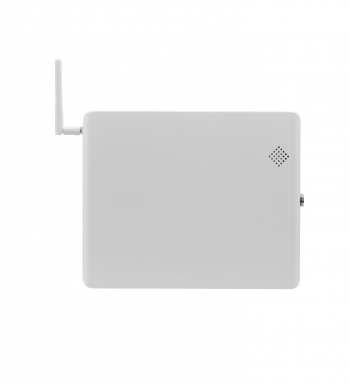

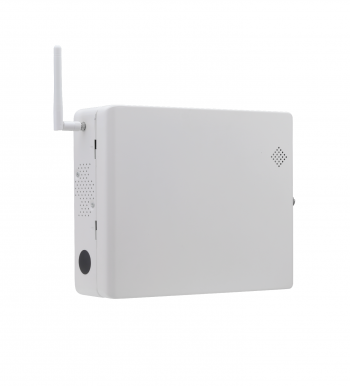

Enclosure (Optional) |
Size: 242mm*197mm*72mm (L*W*H) Material: SPCC steel Net Weight: 2.12 kg (without hard disk) |
|
Certifications |
ISO14001, ISO9001, CE, FCC, Equivalent to RoHS |
|
Factory ID |
AC02-CB41H-42 |
