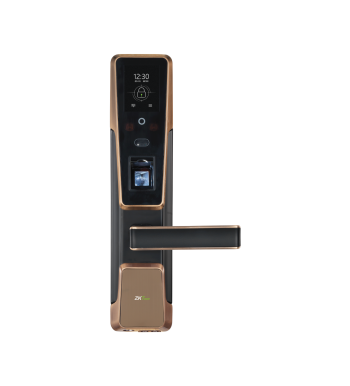

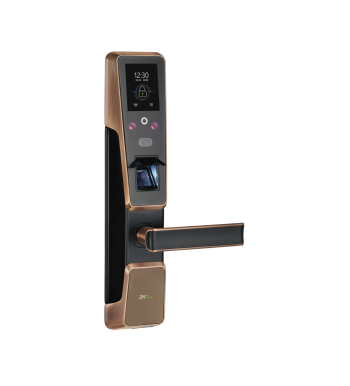

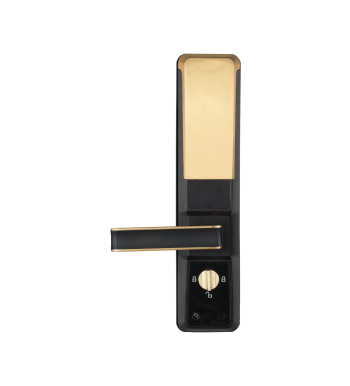

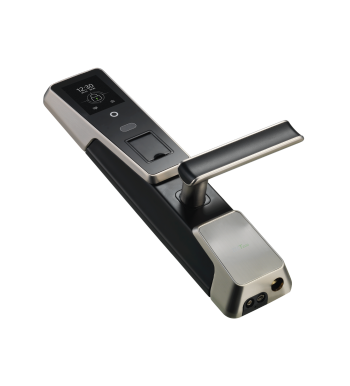

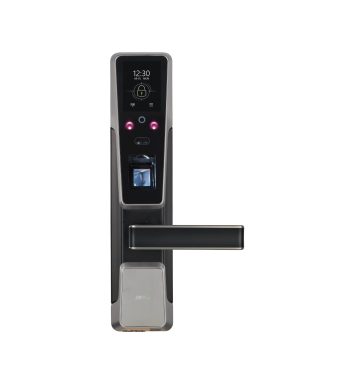

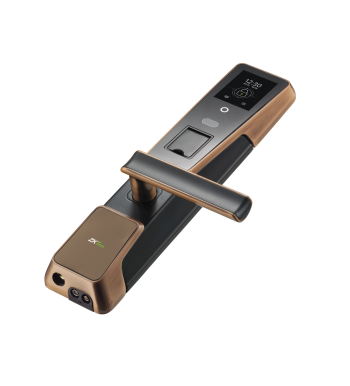

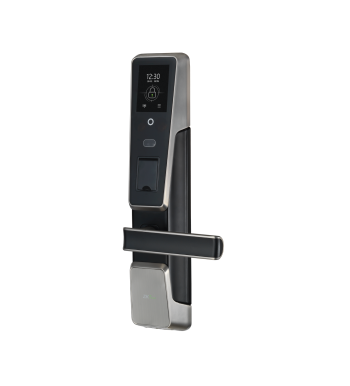

ZM100

The smart lock with hybrid biometric recognition technology

  • Face Regonition
  • Touch Screen
  • Z-ID Sensor
  • Lithium Battery
  • Mutilple language
  • Mifare Card
  • Smart Alarm
  • USB Port

Face Regonition

  • ZK Face Algorithm V7.0 Verification Speed< 1s

Touch Screen

  • 2.8 Inches Capacitive Screen with Visual Menu

Z-ID Sensor

  • PIV Certificate, Live Fingerprint Detection ( Dry, Wet, Rough).

Lithium Battery

  • The Rechargeable Battery Can Last One Year When It Is Fully Charged

Mutilple language

  • English, Spanish, Portuguese (Support Customization)

Mifare Card

  • Advanced Encryption Technology

Smart Alarm

  • Low Battery Warning & Illeglal Operation

USB Port

  • Upload and Download the Data via USB
  • Accurate and high-speed face recognization in 1:N mode
  • Capacitive touch screen with visual icon menu
  • Equipped with Z-ID fingerprint sensor
  • Provide high security unlock way by safety mode - Face+Fingerprint
  • Rechargeable lithium battery
  • Reversible design to fit for all door open direction
  • External terminals to draw back-up power from a 9V battery
  • Smart alarm for low battery & illegal operation & Anti break-in
  • Supported passage mode
  • Mifare card module is optional
Material Zinc Alloy
100 User Face/FP/Password/FRID Card
Card Module Mifare
Communication USB
Power Supply 4000mAh lithium battery
Battery Life Over 8000 times
Door Thickness 35 - 90 mm
Dimensions Front - 78(W)×350(L)×44(D) mm
Back - 78(W)×350(L)×34(D) mm

ZM100 Datasheet-20230511

2.8 Mb Data Sheet
2023-05-11
Download

ZM100 Smart Lock User Manual V1.0_20180911

2.16 Mb User Manual
2018-09-12
Download

ZM100 Installation InstructioV2.0-20190214

2.36 Mb Installation Guide
2019-05-25
Download

ZM100 Template

0.24 Mb Installation Guide
2019-05-25
Download
