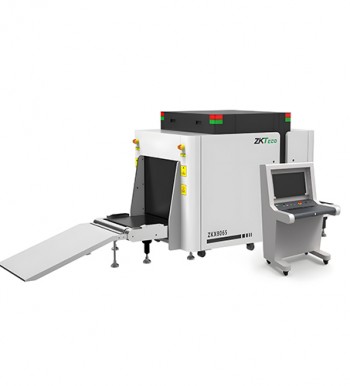

ZKX8065 X-ray Inspection System features a tunnel opening of 800 mm (W) x650 mm (H) and is designed for bags, parcels, and small cargo packages, its equipped with a movable console to enhance work efficiency and operator comfort , allowing it to be placed in factories, shopping malls, transportation hubs, and similar locations. The ZKX8065 X-ray Inspection System uses reliable, high-quality X-ray generators and detectors, as well as image processing algorithm, to provide clear scanning images. This allows operators to visually identify potential threat items.
General Specifications |
|
| Tunnel Size (W x H) | 800mm * 650mm |
| Conveyor Speed | 0.20 m/sec |
| Conveyor Load (Max. Load) | 180kg (Adequate distribution) |
| Conveyor Height | 375mm |
| Detector | Dual-energy Detector |
| View | Single-view |
| Supported Software | ZKBio SIS |
| Communication Interface | RJ45(TCP/IP) |
| Dimensions (L * W * H) | 2924mm * 1207mm *1500mm |
|
Console Dimensions (L * W * H) |
747mm * 706mm * 1279mm |
|
Package Dimensions (L * W * H) |
2200mm *1300mm * 1700mm |
|
Console Package Dimensions (L * W * H) |
890mm * 840mm * 1502mm |
|
Gross Weight (with Package) |
840kg+140kg (Console) |
|
Net Weight |
700kg+100kg (Console) |
|
Film Safety |
ASA/ISO1600 |
|
Certifications |
CE-EMC, CE-MD, FCC sDOC |
X-ray Generator & Image Performance |
|
|
Anode Voltage |
80-160kV (adjustable) |
|
Tube Current |
0.3-1.0mA(adjustable) |
|
Wire Resolution |
36AWG |
|
Steel Penetration |
34mm |
|
Spatial Resolution |
HorizontalΦ1.3mm / VerticalΦ1.3mm |
|
Penetration Resolution |
32AWG |
|
Generator Cooling |
Sealed Oil Bath with Forced Air |
|
Beam Direction |
Vertically Upward |
|
X-ray Converter |
L-shaped Detector Line |
Computer |
|
|
Operating System |
Windows 10 |
|
Processor |
i5-10500H |
|
RAM |
8GB |
|
Hard Drive |
1TB HDD |
|
Max Storage |
Up to 100,000 Scanned Images |
|
Monitor |
21.5"Color LED Screen (1920 x 1080P) |
Operating Environment |
|
|
System Power |
220 VAC +/- 10% 50/60Hz 110 VAC +/- 10% 50/60Hz |
|
Power Consumption |
< 800W |
|
Noise Level |
< 58dB(A) |
|
Operating Temperature |
-10°C to +45°C |
|
Storage Temperature |
-20°C to +60°C |
Health & Safety |
|
|
Radiation Leak Dosage
|
< 0.5μSv/h (10cm From the Surface) Compliant with Radiation Safety Standards (< 5μSv/h ) for Cabinet X-ray Systems |
