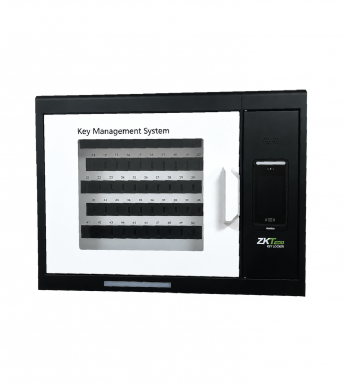

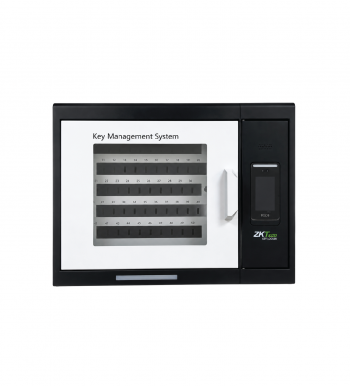

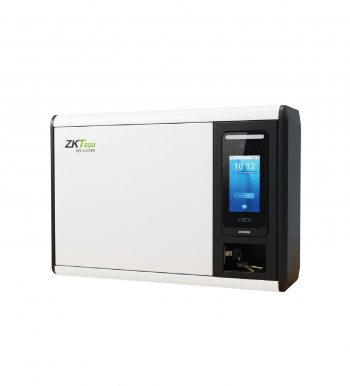

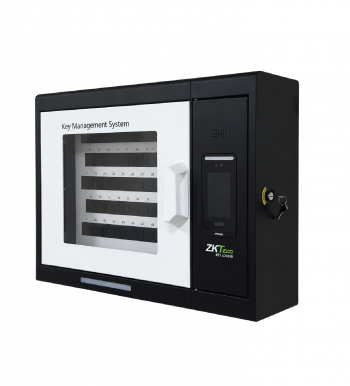

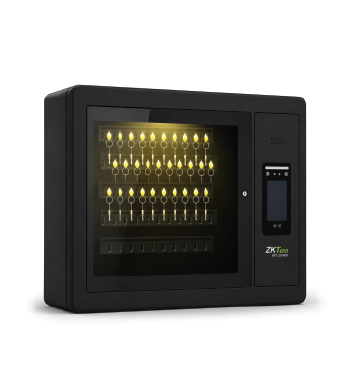

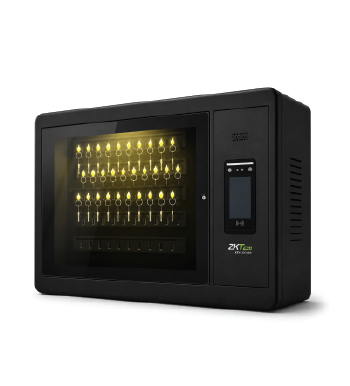

ZKi-KeyVault M Series

Smart Key Management Cabinet

  • Biometric Authentication
  • Smart Anti-Theft KeyTag
  • Real-Time Key Usage Logging
  • Image Capture on Key Access
  • Remote Key Release
  • System Integration Support

ZKTeco’s Smart Key Management Cabinets are designed to modernize and secure the way organizations manage physical keys.

Utilizing smart chips and intelligent access technology, these cabinets ensure that only authorized personnel can retrieve assigned keys, significantly improving control and accountability compared to traditional key storage methods.
Each key transaction is recorded in real time, allowing administrators to track usage by time, user, and access level. The system supports both single-level and multi-level authorization, making it ideal for unattended environments where security is critical.

Engineered for ease of installation and use, ZKTeco’s intelligent key management cabinets offer an intuitive interface where authorized users can quickly retrieve or return keys with minimal training.

  • Biometric Authentication: Advanced fingerprint recognition ensures only authorized personnel can access keys.
  • Smart Anti-Theft KeyTag: Combines physical keys with intelligent tags for secure, trackable key management.
  • Hierarchical & Customizable Access: Define roles and permissions for administrators, users, and specific keys.
  • Real-Time Key Usage Logging: Automatically records who accessed each key and when, with full audit trails.
  • Multi-Person & Two-Way Authorization: Enhanced security for sensitive keys through dual authentication and user-key pairing.
  • Image Capture on Key Access: Captures user photos during key retrieval/return for added verification.
  • Remote Key Release: Allow key access remotely for on-site or emergency operations.
  • System Integration Support: Easily integrates with existing access control and security platforms.
Model ZKi-KeyVault M (30) ZKi-KeyVault M (50) ZKi-KeyVault M (70) ZKi-KeyVault M (100)
Key Positions 30 50 70 100
Material Cold rolled steel, 1.5~2.0mm thickness
Technology RFID RFID
Login Option Face / Fingerprint / Palm (Customized) / Card / Password (Virtual Keypad)
Temperature -10°C to 45°C (14°F to 113°F)
Network TCP/IP, Wi-Fi
Net Weight Approx. 35Kg Approx. 42Kg Approx. 48Kg Approx. 120Kg
Dimension 695*500*202mm 695*640*202mm 695*790*202mm 850*1820*400mm
Power Supply Input: 100~240V AC, Output: 12V DC
Power Consumption Peak 60W, Idle 13W Peak 60W, Idle 18W Peak 60W, Idle 18W Peak 65W, Idle 25W
Installation Wall-Mounted Installation Floor-standing
Display 5"@ ISP Color LCD Screen (720*1280)
CPU CPU: 1.GHz Dual Core RAM: 1GB; ROM: 8GB
OS Linux
Module Fingerprint Recognition
Performance

FAR ≤ 0.01%; FRR ≤ 0.02% (Visible Light Facial Recognition)

FAR ≤ 0.0001%; FRR ≤ 0.01% (Fingerprint; ZKFingerprint V10.0)

FAR ≤ 0.05%; FRR ≤ 1.8% (ZKPalm V12.0)
 Speed Verification  less than 0.3 sec (Fingerprint)

less than 1 sec (Facial Recognition)

less than 0.35 sec (Palm)
 Optional Device  G5 (coming soon)
