- 32-bit dual-chip decoding CPU
- High-speed decoding
- USB drive

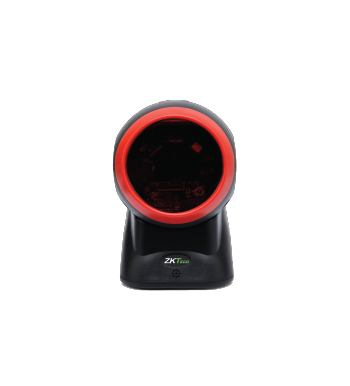

ZKB107 is a high-performance 1D barcode scanning platform with, 20-line rastering omnidirectional scan pattern for increased productivity to no matter novice and expert users, resulting in shorter checkout lines, better customer satisfaction.
- 32-bit dual-chip decoding CPU
- High-speed decoding
- USB drive
- Omnidirectional scanning
- Long depth of field
- Single-line scanning function
|
Mechanical Characteristics |
|
|
Dimensions |
100mm × 95mm × 150mm |
|
Weight |
330 g, without cable |
|
Cable |
Straight 2.0 m |
|
Connector Type |
RJ-45 |
|
Indicator |
LED |
|
Interface Supported |
RS-232, USB Keyboard, USB Virtual COM |
|
Electrical Characteristics |
|
|
Input Voltage |
4.5 – 5.5 VDC |
|
Current |
235 mA |
|
Scan Performance |
|
|
Scanning Speed |
1500 lines/s |
|
Scanning patterns |
All-orientation space scanning (20 laser lines, 5 directions) |
|
Print Contrast |
30% minimum reflective difference (UPC/EAN 100%) |
|
Decoding Capability |
1D: UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN (Bookland EAN), ISSN, Code 39, Code 39 full ASCII, Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5 (Discrete 2 of 5), Matrix 2 of 5, Codabar (NW7), Code 128, UCC/EAN 128, ISBT 128, Code 93, Code 11 (USD-8), MSI/Plessey, UK/Plessey. |
|
Minimum Resolution |
0.102mm (4mil) @ Code 39, PCS = 90% |
|
Decoding Depth |
0 mm – 300 mm |
|
Environmental Characteristics |
|
|
Temperature |
Operating: -10° to 50°C (14° to 122°F); Storage: -20° to 60°C (-4° to 140°F) |
|
Drop |
1.2m drops to concrete (for six sides, one drop per side) |
|
Humidity |
I5% to 95% (non-condensing) |
|
Safety |
EMC: EN55022, EN55024 | Electrical Safety: EN60950-1 | Sealing: IP54 |
|
EMI:EN50081 | Drop Resistance: Withstands multiple 1.5 m drops to concrete |
|
