ZK-VSCN100 is a portable under-vehicle scanning system. It has a great mobility in checkpoints need to be moved or installations where roads cannot be dug up. ZK-VSCN100 does not need civil construction and can be installed in 10 minute include wiring. In addition, it is convenient to move and deliver because all components are able to be stored in a cabinet with wheels.
When vehicle passes, system can quickly generate a high definition image of vehicle undercarriage, which will be recorded in the computer. It helps operator accurately identify forbidden objects attached to the underside of vehicles. This under vehicle inspection system greatly improves the efficiency and accuracy of security check in order to achieve a higher level of safety.
*Kindly Note: The product can only be used for temporary inspection, and can not be used under the rain.

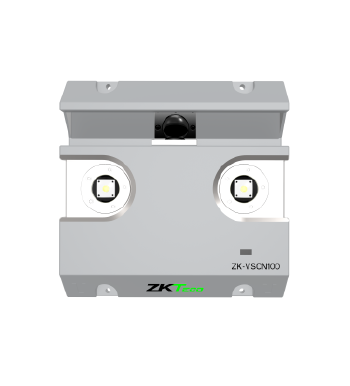

Scanner: Built-in a high-speed line-scan CCD camera, it can dynamically scan the undercarriage of passing vehicles.
Operator terminal: With advanced image processing technology, the software provides kinds of functions to help operator find forbidden objects easily in a userfriendly interface.
Surveillance camera: can record the scanning process and capture images of vehicles. Then the picture and video are stored with corresponding undercarriage image. Can replace to LPR (optional).
General Specifications |
|
| Technology | High-Speed Line-Scan CCD Dynamic Imaging |
| Image Resolution | 12000 x 7500 (20 MP) |
| Scan Speed | 1-60 km/h (Recommended speed: ≤ 30 km/h) |
| Imaging Time | Real Time |
| Maximum Scan Rate | 18kHz |
| Effective Field of View (FOV) | ≥ 170º |
| Load Bearing | ≥ 20T |
| Vehicle Undercarriage Ground Clearance Limit | 80 - 800 mm |
| Vehicle Width Limit | ≤ 4500 mm |
| Vehicle Length Limit | No limit |
| Scanner Height Above Ground | 78 mm |
| Scanner Shell Material | Aluminum Alloy |
| Scan Direction | Single-direction Scanning |
| Scanner Weight | 28 kg |
| Scanner Dimensions (L*W*H) | 450 * 400 * 78 (mm) |
| Fill Light | 2 LED Lights |
| Trigger | IR Sensor |
| Image Format | BMP / JPEG |
| Surveillance Camera | 2MP HD Camera |
| License Plate Recognition | Optional (E-LPRC500) |
| Main Cable | 10 meters |
| Weight | Gross Weight: 95 kg Net Weight: 52kg |
| Dimensions (L*W*H) | 670 * 550 * 740 (mm) |
| Dimensions with Packaging (L*W*H) | 850 * 650 * 970 (mm) |
Computer |
|
| Operating System | Win7 |
| Processor | i5-3570 |
| RAM | 4GB |
| Hard Drive | 1TB HDD |
| Max Storage | Up to 200,000 Scanned Images |
| Monitor | 24"Color LED Screen (1920 x 1080P) |
Operating Environment |
|
| System Power | 220 VAC +/- 10% 50/60Hz 110 VAC +/- 10% 50/60Hz |
| Operating Voltage | DC 24V |
| Power Consumption | ≤ 500W |
| Operating Temperature | -20°C to +60°C |
| Application Environment | Indoor / Outdoor |
