ZK-TK500
  • Blocking width from 2m to 6m
  • Blocking height of spikes above surface level: 550mm
  • Electromechanical operation

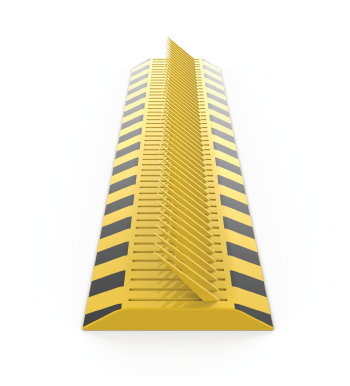

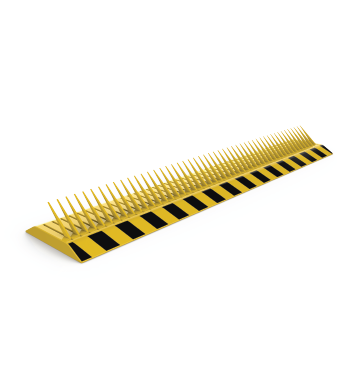

Electromechanical tire killer is one of the most high-end vehicle access control products to prevent vehicle intrusion.

Drive unit is placed into one end of the tire killer and the product is installed above ground level. Its “one- piece” design is aimed to achieve smooth transmission of motion as well as minimize the effect of external factors.

To operate this device, you just need to use the remote controller to raise the spikes and it will be raised within 2 seconds for blocking vehicles in the single directional driveway.

  • Electromechanical operation
  • Blocking width from 2m to 6m
  • Blocking height of spikes above surface level: 550mm
  • Loop detector is provided for safety
  • Manual operation in case of power failure
  • The solid blocking spikes are 10 mm thick and welded to the solid rotation axis at a distance of approx. 150mm to each other
Material A3 Steel
Material thickness 12 / 14 / 16mm
Surface treatment Painted with reflective strip
IP rate IP67
Surface treatment Black and yellow
Length Customizable
Width 550mm
Height 85mm
Max. loading weight 80t
Weight 0.3t (Standard)
Spike height 150mm
Spike thickness 12mm
Drive mode Electromechanical
Working environment -40 °C ~ +70°C
Control mode Short range wireless remote control / drive-by-wire
Control distance ≤100m
Remote control distance Within 50m
Raising / Lowering time ≤1~2s
Power supply 220V electric drive
System dynamic power 180W
