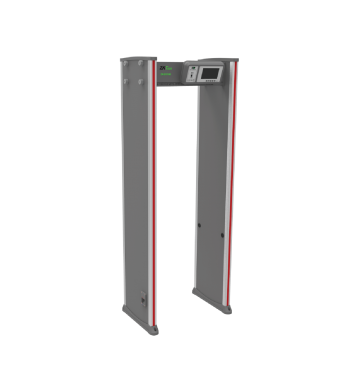

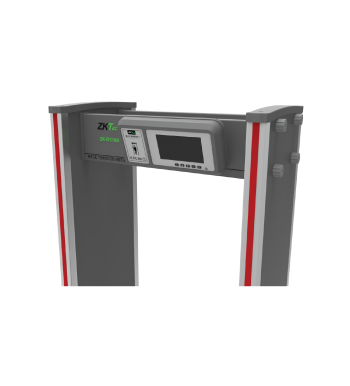

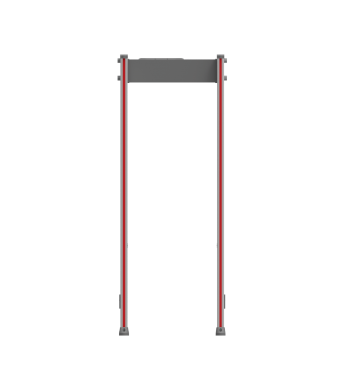

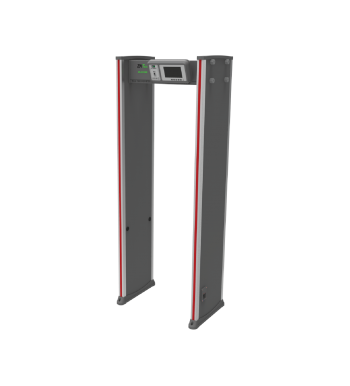

ZK-D3180
ZK-D3180
  • 18 detection zones
  • 500 sensitivity levels
  • 7’’ LCD display
  • Gate linkage
  • 18 detection zones
  • 500 sensitivity levels
  • 7" LCD display
  • Separate counting in and out
  • TCP/IP communication
  • Gate linkage
  • Supports app
  • Simple installation and use
  • Synchronous sound and LED alarm
  • Fireproof material
  • Waterproof bottom
  • Excellent anti-interference
  • Harmless to the human body
  • Password protection
Power Supply AC100V to 240V (DC12V/3A)
Working Temperature -20°C to 55°C
Working Humidity <95% (non-condensing)
Working Frequency 5.7KHz to 9.6KHz
Input Voltage DC12V
Working Current 1.2A
Running Power 14W
Dimension (L*W*H) 2226*845*580 (mm)
Lane Size (L*W*H) 2000*710*498 (mm)
Dimensions of Product with Packaging (L*W*H) 2280*347*660 (mm)
Weight with Packing 52kg
';

ZK-D3180 Data Sheet

0.79 Mb Data Sheet
2021-11-22

ZK-D3180 User Manual

4.08 Mb User Manual
2021-11-22
