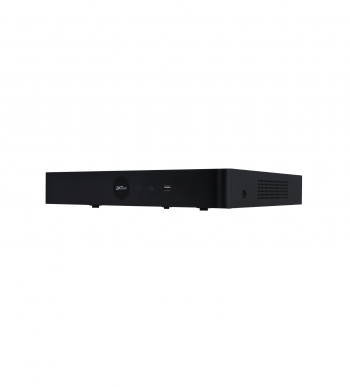

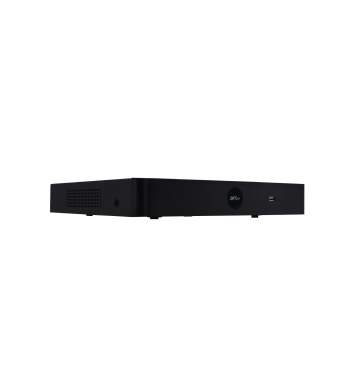

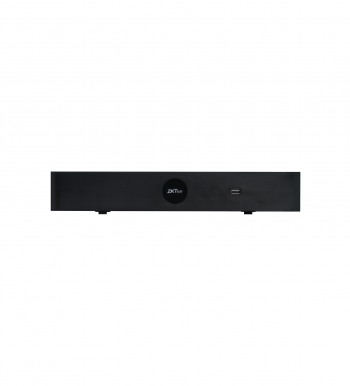

Z8632NFR-S

H.265+ 32 Channels ZKBio Sense Smart Network Video Recorder

  • Supports H.265+,H.265, and H.264 video formats with enhanceddecodingperformance
  • Compatible with up to 12MP IP cameras inputs
  • Supports 16-channelsrealtime playback synchronously
  • 2 SATA Port, up to 16 TB storage capacity
  • P2P cloud service supported
  • Compatible with ONVIF Profile S/T/G

ZKBio Sense smart network video recorder (NVR) enhances the efficiency and safety of video surveillance system. ZKBio Sense smart NVR features a powerful CPU hardware and ZKTeco's intuitive graphical operating system, these recorders provide 24/7 continuous recording of all video channels and intelligent alarm events. The system automatically classifies and stores footage by human and vehicle detection on the hard drive. Moreover, an advanced retrieval functions enable rapid playback of specific targets (human/ vehicle), allowing users to quickly locate critical footage and alarm events.

ZKBio Sense smart NVR enhances surveillance system efficiency and safety across diverse applications including educational facilities, corporate offices, industrial parks, residential communities, and public security operations.

H.265+

  • H.265+ is an optimization of the H.265 algorithm. Through technologies such as dynamic bitrate control and scene-adaptiveencoding, itreducesthe required bitrate by 20% - 40% compared with H.265 while maintaining the same video quality.

Intelligent Video Analytics (IVA)

  • ZKBio Sense Network Video Recorders support multiple intelligent video analytic functions , such as: Line Crossing, Area Detection, TargetCounting, Counting Statistics, Object Lost/Left ,Smart Motion Detection base on human and vehicle targets classification.

Smart Retrieval

  • ZKBio Sense Network Video Recorders supportsmart retrieval for video and alarm events by human & vehicle classification, enablingusersto efficiently search and locate the targeted video clips and alarm events.

ANR (Only for SD card IPC models)

  • When the connection between IPC and NVR is lost, the video is saved in the SD card. The saved video is automatically transferredtotheNVR when network connection is restored, preventing any video loss.

Alarm Push Notification

  • When the NVR receives alarm events, it can trigger actions including email, alarm alerts and buzzer activation. Also, the alarmmessagesare pushed to mobile app and management platform software in real-time.
Model Z8632NFR-S

System
Main Processor Multi-core embedded processor
Operating System Embedded LINUX

Video and Audio

Max IPC Video Input

 32CH
Two-way Talk Support
Audio Compression G.711u
Max Audio Input 32CH by IPC
Third Party Camera Access ONVIF & RTSP

Live View
Display Split 1/4/6/8/9/16/32CH
Resolution 12MP(4000*3000)/8MP(3840*2160)/6MP(3288*1850)/5MP(2592*1944)/4MP((2560*1440
)/3MP(2304*1296)/2MP(1920*1080)/1.3MP(1280*1024)/ 1MP(1280*720)/D1(1024*768)
Live View Capability Local AI OFF:2CH@12MP, 4CH@6MP/5MP,6CH@4MP,8CH@2MP,9CH@2MP,16CH@720P,32CH@D1
Local AI ON:2CH@12MP, 4CH@6MP/5MP,6CH@4MP,8CH@2MP,9CH@2MP,16CH@720P,32CH@D1

Recording
Video Compression H.265+ / H.265 / H.264
Recording Resolution 12MP/8MP/6MP/5MP/4MP/1080P/960P/720P/D1/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Max. Decoding Capability Local AI OFF:2CH@12MP, 4CH@6MP/5MP,6CH@4MP,8CH@2MP,9CH@2MP,16CH@720P,32CH@D1
Local AI ON:2CH@12MP, 4CH@6MP/5MP,6CH@4MP,8CH@2MP,9CH@2MP,16CH@720P,32CH@D1
Incoming Bandwidth Local AI OFF:256Mbps
Local AI ON:250Mbps
Outgoing Bandwidth Local AI OFF:128Mbps
Local AI ON:128Mbps
Stream Type Video, Video & Audio
Bit Rate Main Stream: 16Kbps ~ 12288Kbps
Sub Stream: 16Kbps ~ 4096Kbps
Storage Method Local hard drive and network
Record Mode Schedule, Manual, Motion Detection, IVA Events Alarm
Record Interval 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 1~ 10 min

Playback and Backup
Playback Channel 16CH synchronously playback
Search Mode Time / Date, Alarm Types, IVA Search
Playback Function Play, Stop, Play Forward, Play Backward, 30 Seconds Forward, 30 Seconds Backward, Fast
Play, Slow Play, Single Frame Play, Hide/Show Time Bar, Backup, Snapshot, Full Screen

Backup Mode

 USB Device / Network Remote

Intelligent Video Analytics

IVA by Camera

 Line Crossing, Area Detection, Smart Motion Detection (base on human and vehicle
classification), Target Counting, Object Lost/Left, Fire Detection, Temperature
Measurement, Heat Point Detection, Smoking Detection

Local IVA Functions

 Line Crossing, Area Detection, Smart Motion Detection (base on human and vehicle
classification), Target Counting, Counting Statistics, Object Lost/Left

IVA by Device(Number of Channels)

 2

IVA by Camera (Number of Channels)

 32

IVA Alarm

Smart IVA Alarm

 Line Crossing, Area Detection, Smart Motion Detection, Target Counting, Object
Lost/Left, Fire Detection, Temperature Measurement, Heat Point Detection, Smoking
Detection

Regular Detection

 Motion Detection / Video Shelter / Video Loss / Privacy Mask

Anomaly Alarm

 HDD Full, No HDD, S.M.A.R.T error, Network disconnected, IP conflict

Alarm Linkage Actions

 Preview, Recording, Snapshot,Buzzer, Preset, Email, Tour, Upload center

Smart Search

 Support smart search out target video by human and vehicle classification filtering

Network

Network Protocol

 TCP/IP, HTTP,HTTPS, ONVIF, DHCP, DNS, DDNS, RTSP, NTP, UPnP, SMTP, IPv4, IPV6,UDP,SSL/TLS, PPPoE, WebSocket, ICMP, IGMP, RTMP, RTP, RTCP, ARP

Max. Online Users

 30

Web Browser

 Google Chrome/Microsoft Edge/Firefox/Safari

Operation System

 Windows

Management Platform

 ZKBio CVSecurity / CVAccess / AntarVis 2.0

Mobile Application

 AntarView Plus (iOS & Android)

P2P Cloud Service

 Support OTA updates via the AntarView Plus

Interoperability



 ONVIF Profile S/T/G, SDK, CGI, API

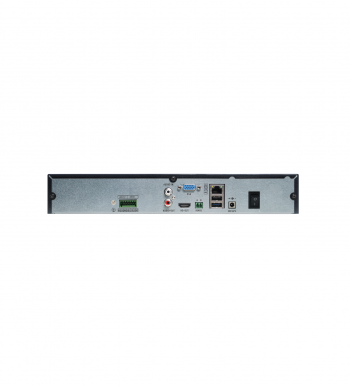

Storage & Auxiliary Interface

SATA Ports

 2 SATA Port, up to 16 TB storage capacity

eSATA

 N/A

Raid 0 /1 / 5 / 6 / 10



 N/A
IPSAN/NAS Support

HDMI

 1*HDMI (4K)

VGA

 1*VGA(1920*1080/60Hz, 1280*1024/60Hz)(support independent output)

Network Interface

 1 RJ-45 Port (10/100/1000 Mbps self adaptive )

PoE Ports

 N/A

Standard

 N/A

USB

 2*USB 2.0,1*USB 3.0

Audio Input/Output

 1 In / 1 Out

Alarm Input/Output

 4 In / 2 Out

RS-485

 Support

RS-232

 N/A

Power

Power Supply

 DC 12V/5A

Power Consumption

 ≤24W(without HDD)

General

Casing

 1.5U

Working Temperature

 -10°C ~ 55°C / 14°F ~ 131°F

Working Humidity

10% ~ 90%

Storage Humidity

10% ~ 90%

Operating Altitude

3,000 m (9,842.52 ft)

Installation

Desktop / Cabinet mount

Dimensions(L*W*H)

325*307*52(mm)

Net Weight

3KG(without HDD)

Gross Weight

3.5KG(without HDD)

Certifications

CE-LVD; CE-EMC; FCC certification

Environment

CE-RoHS, WEEE, Reach self-declaration
