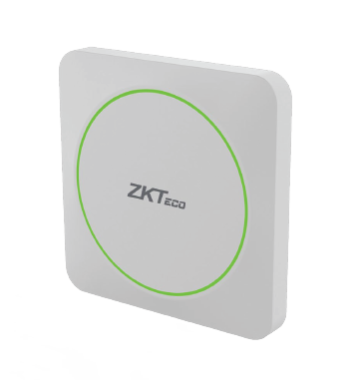

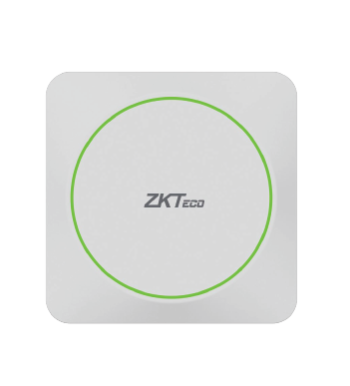

U1000 Pro

UHF RFID Standalone Terminal

  • Long Distance Fixed Vehicle Management
  • Long Distance Access Control Management
  • Long Distance Pedestrian Access Management
  • Automatic Garage Door Management



The U1000 Pro is a remote RFID access control machine based on the U1000 upgrade, which integrates a high-performance reader and C3 Pro controller. LED interactive experience in different scenarios, and easy to operate. Supports ARMATURA ONE and ZKBio CV Security, can debug parameters on the reader web, and has passed IP66 CE and FCC certifications.

  • Long Reading Distance
  • IP66 Protect Level
  • Support WEB Offline Configuration
  • Access Control Function
  • RGB Indicator Light
  • 100,000 Card Lists and Record Storage Capacity
  • Integrate the C3 Pro Series Access Control Controller
  • Free SDK Support for Secondary Development is Provided
Model

U1000E Pro

U1000F Pro
Card Capacity 100000 cards
Log Capacity 10,000 Transactions
Hardware Platform ZMM220
Working Frequency

865MHz-868MHz

902MHz-926MHz
Reading Distance 0 - 9m (Stable is 0 - 5m)
Communication TCP/IP
Access Control Interface Wiegand In, RS485, 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm
Access Control Functions Standard Access Functions, Anti-passback
Antenna Gain 9dBi
Output Power 10dBm-30dBm
Maximum Power Consumption <2W
Protection Level IP66
Support Software ARMATURA ONE, ZKBio CVSecurity
Working Voltage DC 9V - 12V
Working Current 150mA (Always Reading )
Working Temperature -20°~ +60°C
Working Humidity <95% (25°C)

U1000Pro Datasheet-20250618

0.59 Mb Data Sheet
2025-06-18
Download

ZK_U1000 Pro_UM_EN v1.0_20250619

1.92 Mb User Manual
2025-06-19
Download
