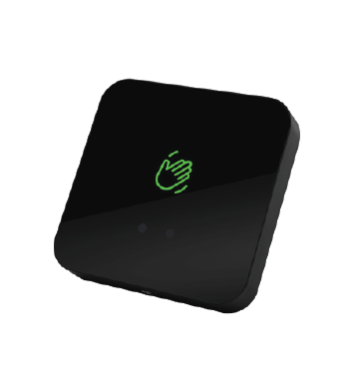

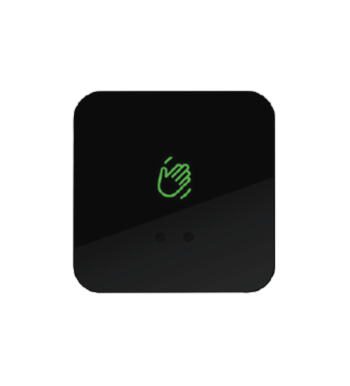

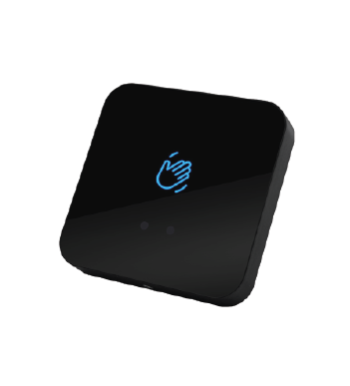

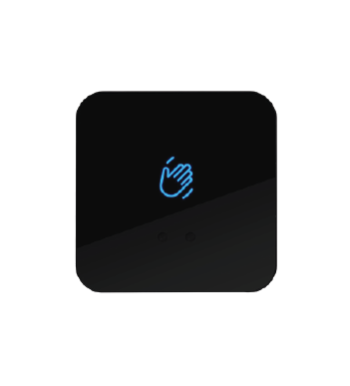

The TLEB201 / TLEB201M Series is a precision-engineered non-contact infrared exit switch designed for modern access control systems. Utilizing advanced infrared sensing technology, both models enable secure and hygienic door release through a simple wave of the hand, eliminating physical contact and significantly reducing the risk of cross-contamination.

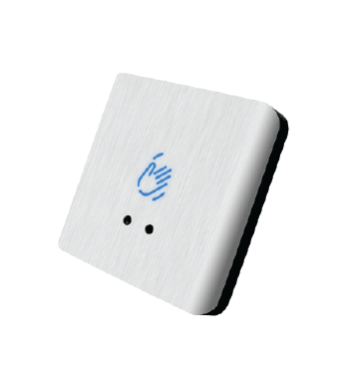

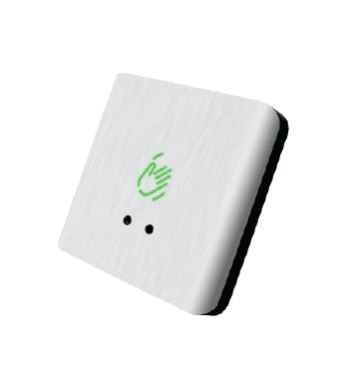

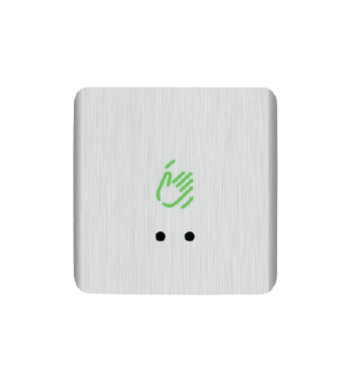

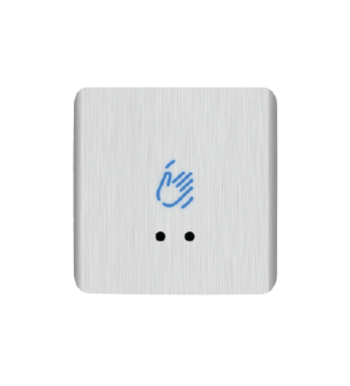

Engineered for reliability and ease of integration, the series offers two distinct options to meet different installation requirements: the TLEB201 with Equivalent to IP67 waterproof protection in durable ABS construction, and the TLEB201M featuring a refined aluminum alloy housing for enhanced aesthetics and robustness. Both models deliver stable performance across a wide temperature and humidity range, making them ideal for commercial offices, healthcare facilities, educational institutions, public buildings, and other access control applications.
| Parameter | TLEB201 (Black) | TLEB201M (Silver) |
| Dimensions (L × W × H) | 86 × 86 × 14 mm | 86 × 86 × 16 mm |
| Power Supply | DC 12–24 V | DC 12–24 V |
| Material | ABS | Aluminum alloy housing + plastic base plate |
| Waterproof Rating | Equivalent to IP67 | - |
| Signal Output | NO / NC / COM | NO / NC / COM |
| LED Indication | Blue (Standby) / Green (Triggered) | Blue (Standby) / Green (Triggered) |
| Operating Temperature | -20 °C to +55 °C | −20 °C to +55 °C |
| Operating Humidity | 100,000 cycles | 100,000 cycles |
| Certification | CE, FCC | CE, FCC |
| Package Weight | 0.084 kg | 0.093 kg |
