TF1700

Your best choice for
outdoor access control
8,000 Fingerprint
Available Now

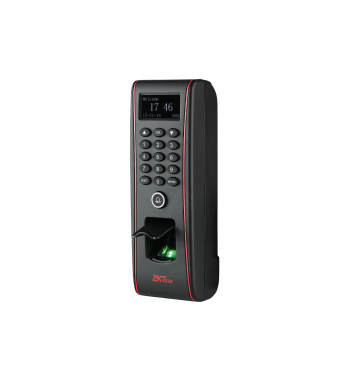

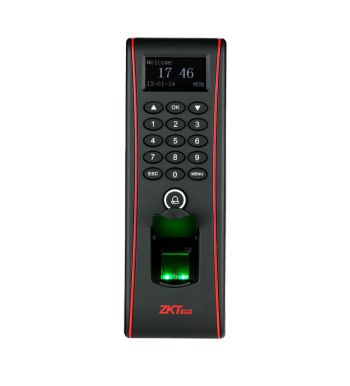

TF1700 is one of the world’s smallest Ethernet connection-based fingerprint terminals, used for access control and time attendance features, with IP65 waterproof housing.

With its IP65 rated rugged waterproof and dustproof structure, TF1700 offers extra durability in harsh conditions such as outdoor environments. It is specially designed for standalone applications such as house, office, shop, garage, factory and others.

The 2013 version of TF1700 is equipped with a sensor cover to protect the optical reader and updated with new firmware that supports ZKBio CVAccess management software which has versatile features and powerful functions.

Rugged Structure for Outdoor Installation and Extra Durability

  • IP65 rated waterproof and dustproof structure

Slim and Elegant Design

  • One of the world’s smallest fingerprint terminals
  • Sleek and slim design for narrow spaces

Fast and Accurate Fingerprint Algorithm

  • 1 touch a-second user recognition
  • Store 3,000 fingerprint templates, 30,000 cards and 100,000 transactions

Easy Installation and Connectivity

  • Wiegand input & output
  • Network interface by TCP/IP

Full Access Control Features

  • Anti-passback
  • Access control interface for 3rd party electric lock, door sensor, exit button, alarm and doorbell

Easy Operation and Management

  • Work without computer
  • OLED, buzzer, 3×5 keypads
  • Built-in keypad and RF card reader for multi-modal authentication (Fingerprint/PIN/Card)

Fingerprint Sensor

Infrared detection fingerprint sensor

Algorithm Version

ZK Finger 10.0

Communication

TCP / IP, RS485*, USB Host

Fingerprint Capacity

3,000 Fingerprints (8,000 Optional)

Card Capacity

10,000 Cards

Log Capacity

50,000 Transactions

RF Card

EM (standard) / IC Card (optional)

Authentication

Finger / PIN / Card

Wiegand Signal

Wiegand input & output

Ingress Protection Rate

IP65

Display

128 x 64 OLED

Keypad

3 x 5 keypads & doorbell

Sound and Interface

Buzzer and multi-color LED

Operating Voltage

12V DC 3A

Operating Temperature

-10 °C to 50 °C (14°F ~ 122°F)

Dimension

62.5mm×185mm×41.5mm (W×H×D)
