SL03-T420H

Zigbee Digital Lever Mortise Lock

  • Remote Management
  • Secure Mortise Design
  • Smart Event Alarms
  • Long Battery Life
  • Full Firmware OTA
  • USB Type-C Interface

SL03-T420H is a ZigBee digital lever mortise lock specially designed for the apartment scenarios. In this new  generation of smart lock products, ZKTeco’s T4 smart lock series bring a modern and distinctive family-style industry design, combining an aluminum alloy housing and a 2.5D tempered glass panel.

To ensure robust physical security, the standard mortise lock is designed with an anti-card auxiliary latch and  a deadbolt. Users can easily lift the handle to lock the door from inside or outside. Additionally, the door lock is equipped with a built-in detector, enabling the tamper-alarm function for enhanced protection.

Powered by the reliable Zigbee technology, the door lock can be remotely controlled and monitored in  real time, significantly improving management and maintenance efficiency. More importantly, the Zigbee  technology shows a better performance in terms of low power consumption, stable network connectivity and cyber security. SL03-T420H will be an ideal choice for apartments, dormitories and short-term rentals, offering a more  reliable, secure and convenient lifestyle.

Remote Management

  • Remotely Control the devices and monitor their status in real-time

Smart Events Alarms

  • Supports low battery, tamper and continuous authentication error alarms

Full Firmware OTA

  • Supports the firmware upgrades for easier after-sales maintenance

Secure Mortise Design

  • Designed with an anti-card auxiliary latch and a deadbolt

Long Battery Life

  • Last for more than 2.5 years thanks to the reliable Zigbee technology

USB Type-C Interface

  • Equipped with a commonly used Type-C emergency power interface

Material


Housing Material Aluminum Alloy
Color Options Matt Black, Space Gray
Front Panel Tempered Glass (2.5D edge processing)

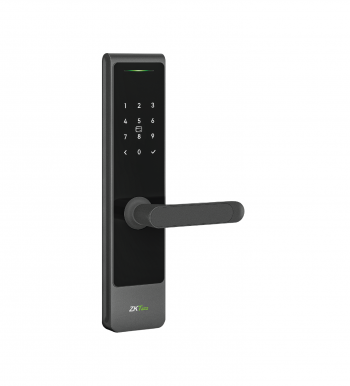

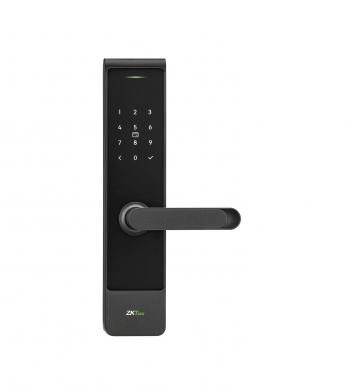

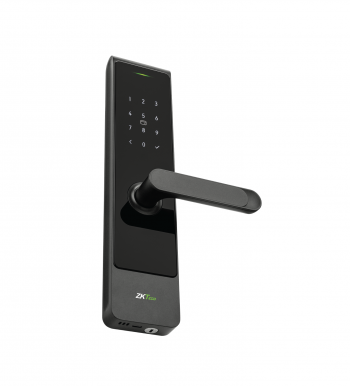

Touch keypad (12 digits)

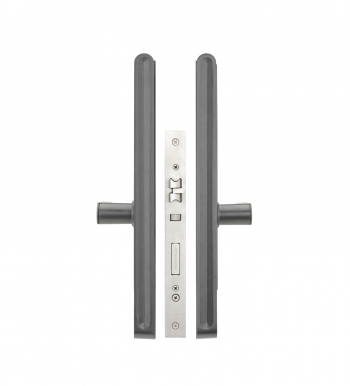

Mortise Lock


Type European Standard
Backset 55 mm
Axe Distance 72 mm
Square Spindle 7.8 mm
Faceplate (H×W) 24×235 mm; squared standard

Technical


Unlocking Methods Passcode (dynamic/ periodic) ; Card (IC/ NFC)
Mobile HTML5 Links ; Mechanical Key.
Capacity User: 100; Passcode: 100; Card: 100;
Local Records: 500
Card Reader IC Card @13.56 MHz
NFC Supported (ISO/IEC 14443A)
Audio Prompt Language English, Spanish
Indicator Green (access granted)
Red (Verification failed)
Blue (OTA update)
White Light (Keypad backlight)
Wireless Communication Zigbee 3.0 (IEEE 802.15.4)
Emergency Power USB Type-C Interface, DC 5V
Power Supply 8 x AA Alkaline Batteries (Not Provided)
Battery Life approximately 2.5 years
Supported Software ZKBio CVSecurity SmartLock

Door Compatibility


Door Type Wooden Swing Door
Door Thickness 35 to 60 mm (standard)
Opening Direction All Direction (reversible lever design)

General


Net Weight 2.5 kg
Gross Weight 3.0 kg
Product Dimensions (H×W×T) Exterior: 330.9×75.2×25.3 mm
Interior: 330.9×75.2×24.5 mm
(* Lever not included)
Package Dimensions (L×W×H) 225.0×130.0×430.0 mm
Operating Temperature -20°C to 55°C (-4°F to 131°F)
Operating Humidity 10% to 90% RH (Non-condensing)
Certifications CE, FCC
Standard Functions Unlock, Temporary Passcode (dynamic, periodic), Anti-Peeping Codes (up to 20 digits), Passage Mode, Tamper Alarm, Low Battery Alarm, Continuous Authentication Error Alarm, Firmware OTA
Package Contents Exterior Assembly, Interior Assembly, Mortise Kit, IC Card * 2, Mechanical Key * 2, Studs & Screws Kit, Installation Template, Installation Guide
