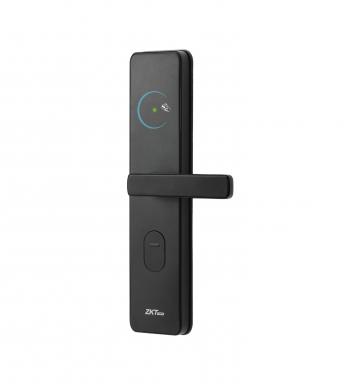

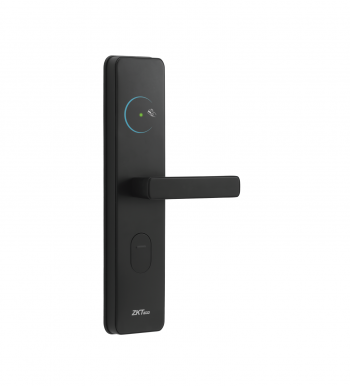

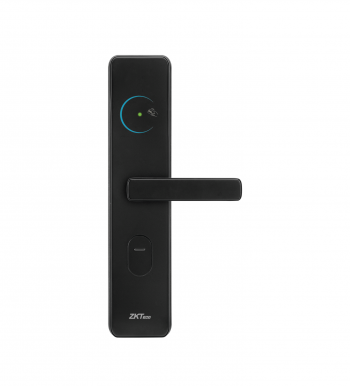

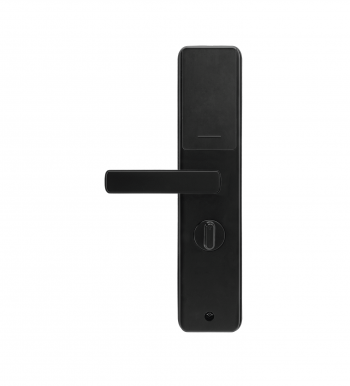

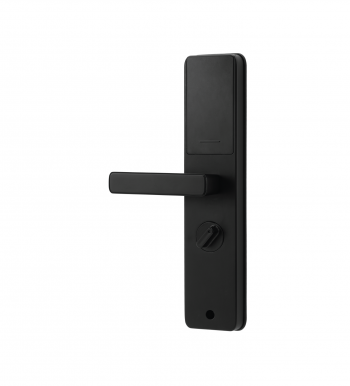

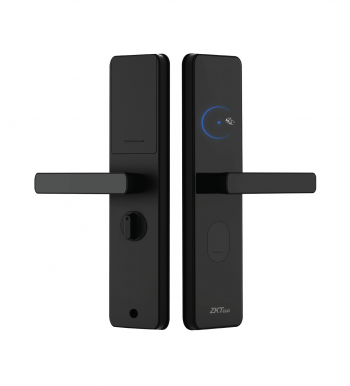

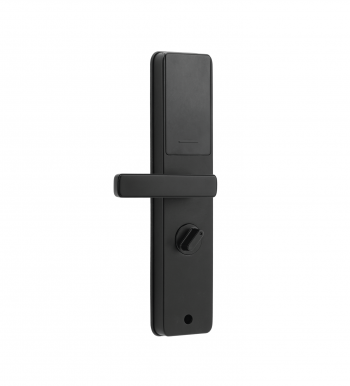

SL02-ZL140H

Minimalist Elegance Constructed of Durable Aluminum Alloy

  • Remote Monitoring
  • Mobile Credential
  • Integrated Card Management
  • Free Egress

SL02-ZL140H offers the convenience of a wireless hotel lock, it supports connecting to the hotel lock management system-ZKBio CVSecurity SmartLock, the lock supports remote control, status monitor and unlock record synchronization. Users can achieve access control and elevator control system by Multi-Tech cards. It is an ideal solution for smart hotels and resorts.

Remote Monitoring

  • Monitor doors’ status in real-time from anywhere

Mobile Credential

  • Unlock simply with a smartphone HTML5 (H5)

Integrated Card Management

  • When writing guest's cards, you can quickly select the access control and elevator control permissions of the guests simultaneously

Free Egress

  • The lock can always be opened from the inside, and it is also possible to use software to unlock multiple devices in batches
Model SL02-ZL140H

Material


Housing Material Aluminum Alloy
Front Panel ABS
Color Black

Mortise Lock


Type American Standard
Backset 62mm (2-7/16")
Axe Distance Lever to Cylinder: 95mm (3-3/4"),
Lever to Thumbturn: 62mm (2-7/16")
Square Spindle 8x8mm square
Faceplate (H×W) 26×204 mm (1-1/41" x 8-1/32"), squared standard
Built-in Detectors Latch Bolt, Deadbolt, Cylinder

Technical


Unlocking Methods Card, Web Application, Mechanical Key Backup
Capacity Event Log: 500 entries (Auto-overwrite)
Card Reader S50/S70 IC Card @13.56 MHz
NFC Supported Yes ( ISO/IEC 14443 A)
Encoder D147-H
Audio Prompt Language English
Wireless Communication Zigbee 3.0 (IEEE 802.15.4)
Power Supply 4 × LR6 AA (Alkaline recommended only)
Battery Life Approximately 1 year and 7 months
(* Based on lab testing: 10 daily cycles with deadbolt actuation and Zigbee connected.)
Supported Software ZKBio CVSecurity SmartLock

Door Compatibility


Door Type Swing Mortise Door
Door Thickness 40 to 63 mm (Standard)
Door Swing Right Inward (Standard). (For non-standard door swing, please specify at purchase for proper fit.)

General


Net Weight 2.3 kg
Gross Weight 2.7 kg
Product Dimensions (H×W×T) Exterior: 330 × 71 × 22 mm
Interior: 330 × 71 × 22 mm
* Excluding lever height: 41 mm
Package Dimensions (L×W×H) 460 × 240 × 95 mm
Operating Temperature -20°C to 55°C (-4°F to 131°F)
Operating Humidity 5% to 95% RH (Non-condensing)
Certifications CE, FCC
Package Contents Front/Rear Trim;
Washer; Lock Body Kit (Includes mortise, strike plate, locking box);
Lock cylinder Kit (Includes 2 mechanical keys);
Studs & Screws Kit; IC Card * 2; Installation Template;
