SBTL6200
  • Visible light recognition
  • Palm verification
  • QR code
  • Fingerprint verification
  • RFID

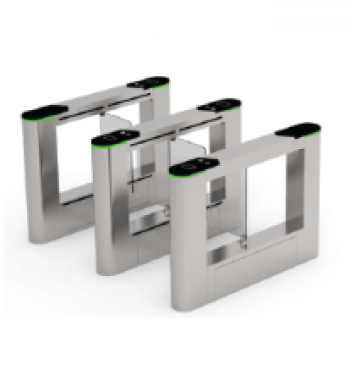

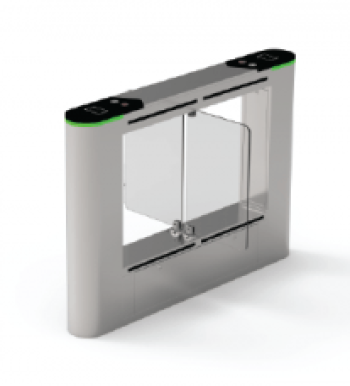

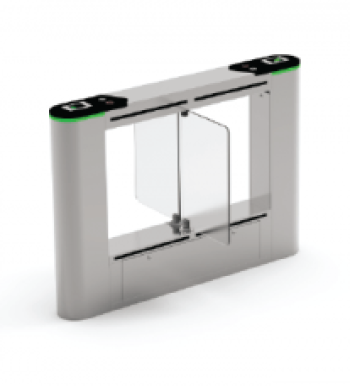

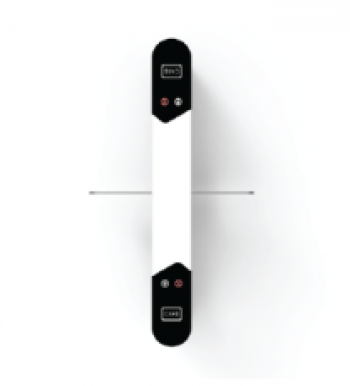

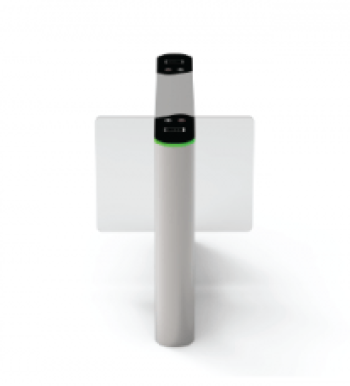

SBTL6200 is a dual lane swing barrier designed and served as an additional lane besides SBTL6000 to meet specific client requirements. It is a swing barrier with a modular design that realizes fast switching between different readers. And reader installation can be completed by merely pull-out and plug-in. After installing the corresponding readers, SBTL6200 can support multiple verification methods, including RFID, fingerprint, QR code, palm verification, and visible light facial recognition. Especially, palm verification and visible light facial recognition can realize touchless entrance control that avoids hands exposing to bacteria and boost public hygienic security.

Power Requirements AC 100 ~ 120V / 200 ~ 240V, 50 / 60Hz
Working Temperature -28°C ~ 60°C
Working Humidity 20% ~ 95% (non-condensing)
Working Environment Indoor / Outdoor (if sheltered)
Lane Width (mm) 635
Infrared Sensor 6 pairs
Dimension (L*W*H) 1400 * 180 * 1000 (mm)
Dimension with Packing (L*W*H) 1580 * 340 * 1270 (mm)
Weight with Packing (kg) 85
LED Indicator Support
Cabinet Material SUS304 Stainless Steel
Lid Material SUS304 Stainless Steel + Acrylic
Barrier Material Acrylic
Barrier Movement Swing
Emergency Mode Support

SBTL6200 Datasheet

0.36 Mb Data Sheet
2020-09-15
