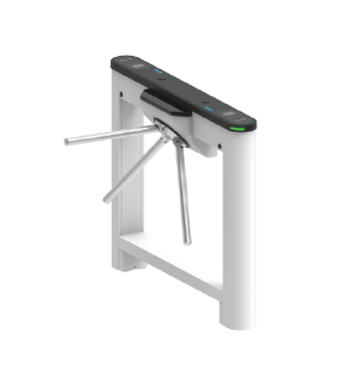

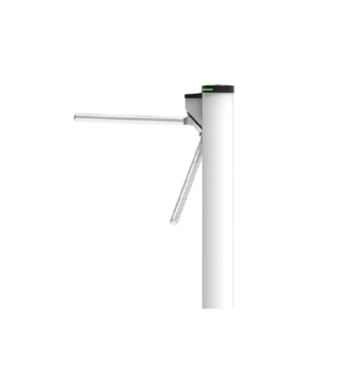

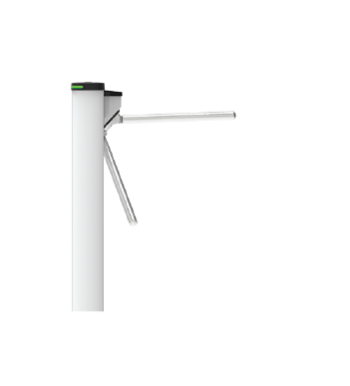

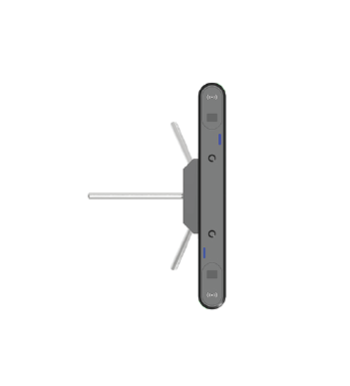

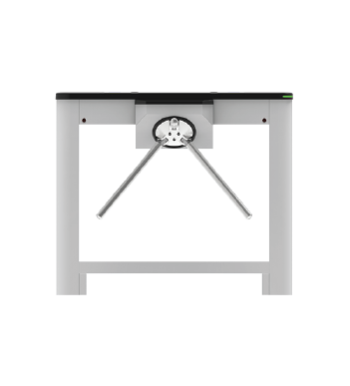

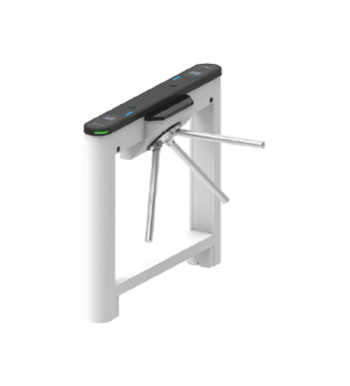

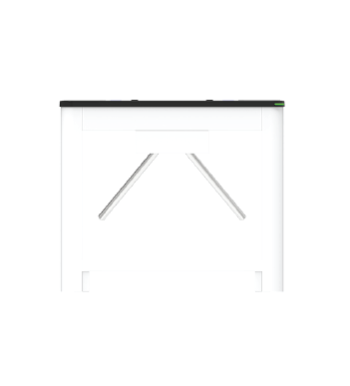

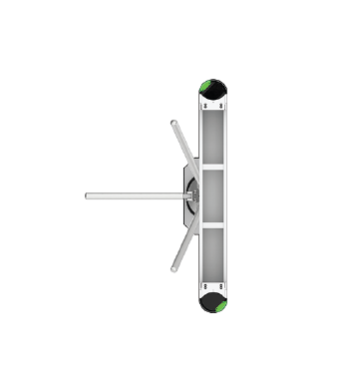

The Saturn-T1000 Pro is built for reliable entrance and exit management. Powered by a smooth brushlessmotor drive, it delivers fast, frictionless bi-directional passage with gentle-touch rotation and clear LED guidance, creating a smooth flow for users while enforcing strict lane discipline and anti-tailgating control. Its housing, constructed from 1.0mm electro-galvanized steel with a baked enamel finish and an integrated molded top cover, offers a compact profile that resists rust and stands up to daily wear. With an IPX4 ingress protection rating, the Saturn-T1000 Pro performs dependably indoors, under shelter, or fully outdoors. Supporting multiple authentication methods—including facial authentication, QR code scanning and RFID card verification. The Saturn-T1000 Pro is equipped with the standard electrical interfaces and standard internal wiring, ensuring straightforward deployment across enterprise entrances, stations, ports, exhibition centers, and public leisure facilities.
| Model Name | Saturn-T1000 Pro Series |
| Audio Indicator | Internal buzzer |
| Visual Indicator | LED Indicator Blue: Standby Green: Access Granted Red: Alarm / Error |
| Display | N/A |
| Lane Type | Single lane (Support bi-directional entry / exit lane) |
| Lane Width | 550 mm |
| Barrier Movement Type | Rotating |
| Motor | Brushless DC Motor |
| Movement Speed | N/A |
| Movement Accuracy | N/A |
| Clutch | N/A |
| Lid Material | Polycarbonate body + 2.5D Tempered Glass Panel |
| Lid Options Authentication Methods | Streamlined under mount options: RFID / Facial Authentication / QR code (Dynamic / Static) |
| Chassis Material | Electro-galvanized steel plate, with baked enamel finish. (T=1.0mm) |
| Chassis Color | Pearl White (PWH) |
| Tripod Material | SUS304 stainless steel |
| LiDAR Sensor (dToF technology) | None (standard) ; 2 pcs (optional) |
| Motherboard Function | Tripod release duration, access mode configuration |
| Motherboard Communication | Fire alarm port(relay)*1, RS485 port *1 |
| Controller | Access controller options: C3, InBio series or third-party controller subject to turnstile chassis space |
| Credential Options | Under mount RFID reader: (support model: ProID Series, KR Series) Under mount fingerprint reader: FR1200/FR1500S |
| Flow Rate | Face: 15 Passengers per minute RFID: 25 Passengers per minute QR code: 25 Passengers per minute |
| Tripod Length | 500 mm |
| Accessibility | Options: Wireless remote control, wired remote control, QR reader |
| Power Supply | AC 110V~220V, 50/60Hz, DC 12V |
| Power Rating | Operating: 40W, Standby: 10W |
| Fire Signal | Input for voltage-free contact |
| Noise Level | < 65 dB |
| MTTR | Less than 60 minutes |
| MCBF | 5 million |
| Weight | Gross weight (25kg) Net weight (30kg) |
| Dimension (L*W*H) | 1200 × 228 × 1020 mm |
| Operating Temperature | -28~60℃ |
| Operating Humidity | 5% to 80% RH (Non-condensing) |
| Certifications | CE, FCC (pending) |
| Ingress Protection Rating | IPX4 (self-laboratory test) |
| Supported Software | ZKBio CVAccess / ZKBio CVSecurity (Compatible with software only when connected to the control panel) |
| Safety Features | Auto drop arm during power failure or emergency signal, allowing free passage |
| Security Features | Anti-tailgating |
| Product Delivery | Pre-assembled |
| Application Environment | Indoor/ Sheltered-outdoor/ Outdoor |
| Site Preparation | Flat and level finished door (optional base plate for unfinished floors) |
| Dimensions with Packing ( L*W*H ) | 1300×305×1106mm (L*W*H) |
| Security Level | Medium |
| Emergency Mode | Automatic drop arm during power outage or fire alarm events |
| Packing Material | Carton(standard), wooden(optional) |
| Warranty | 1 years |
