Swing Barrier Turnstile

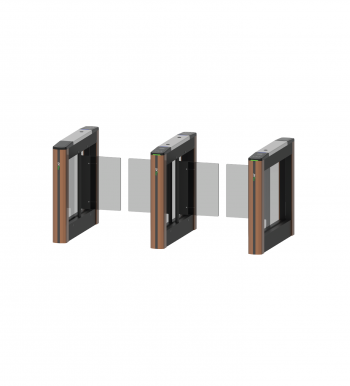

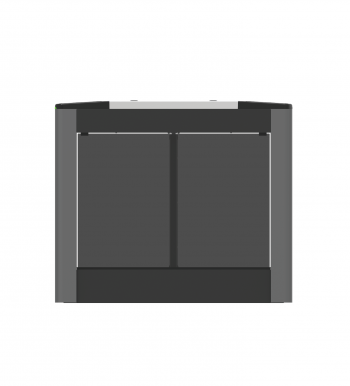

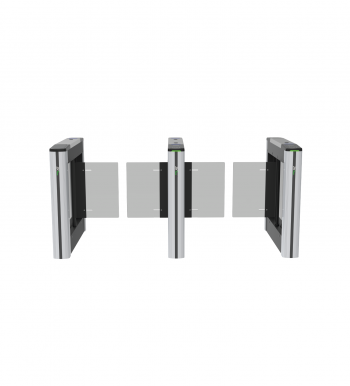

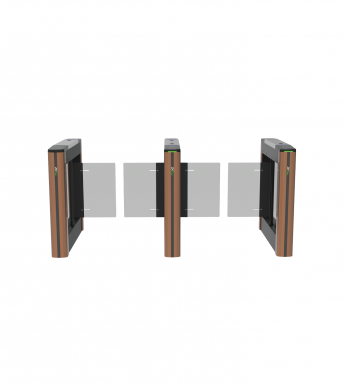

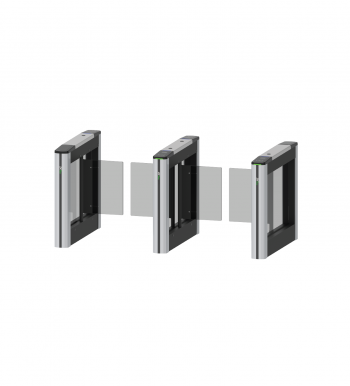

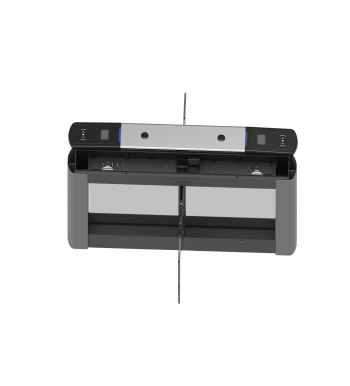

Unveiling the ZKTeco Saturn Plus Series , an innovative swing barrier turnstile designed for an unparalleled passage experience. The Saturn Plus Series offers two models (S1000 Plus and S1200 Plus). Its chassis is made from cold-rolled steel SPCC (GB700), providing an IPX4 protection rating that ensures it can withstand water and dust.
The Saturn Plus Series has been upgraded with a notable feature: the addition of six pairs of infrared sensors for dual pinch protection. It ensures enhanced safety and improved obstacle detection. Also, the authentication area is enhanced with 2.5D tempered glass for scratch resistance.
Saturn Plus Series maintains its multi-authentication flexibility as before, with facial, QR code and RFID card verification. Additionally, the pedestal removal design makes it easier to installation.
| Model Name | Saturn-S1000 Plus Saturn-S1200 Plus |
| Audio Indicator | Internal speaker |
| Visual Indicator | Top LED indicator: Blue=Door closed/stand by Green=Door opening Red=Door closing/alarm Side LED indicator: Green=Lane available Red=Lane unavailable |
| Display | NA |
| Lane Type | Saturn-S1000 Plus: Single lane Saturn-S1200 Plus: Dual Swing (for additional lane) |
| Lane Width | 600mm (Standard) Max 900mm (Optional) |
| Barrier Movement Type | Swing |
| Motor | DC brushless motor |
| Movement Speed | Average 1s per movement (Adjustable open/close timing) |
| Movement Accuracy | NA |
| Clutch | NA |
| Lid Material | Stainless steel & Polycarbonate |
| Lid Options Authentication Methods | Streamlined under mount options: QR Code / RFID Surface mount option: Facial Authentication |
| Chassis Material | Cold-rolled steel SPCC (GB700) (Chassis Body) / Aluminum Alloy (Gate Column) |
|
Chassis Colour |
Sliver(standard), Gray(optional), Brown(optional) |
|
Barrier Material |
Light gray transparent acrylic (555*300mm) (standard) / Light gray transparent acrylic (555*375mm) (optional) |
|
IR Sensors |
6 pairs |
|
Motherboard Function
|
System configuration, access control |
|
Motherboard Communication |
Fire alarm port (relay)*1, RS485 port*1 |
|
Controller |
Not equipped, allowing optional from C3 / InBio Series or customization |
|
Credential Options |
Under mount RFID reader (support model: Pro ID Series, KR Series) Under mount fingerprint reader: FR1200 / FR1500S |
|
Flow Rate |
Facial Authentication: 15 passengers per minute QR Code: 30 passengers per minute RFID: 35 passengers per minute |
|
Accessibility |
Adult, children (with care), Disability (with care) |
|
Power Supply |
110V / 220V ±10% AC @50Hz/60Hz |
|
Power Rating |
10VA(Standby) 40VA(Operation) |
|
Fire Signal |
Input for voltage free contact |
|
Noise Level |
Less than 60dB |
|
MTTR |
Less than 60 minutes |
|
MCBF |
3 million |
|
Weight |
Saturn-S1000 Plus: 50kg Saturn-S1200 Plus: 30kg |
|
Dimension (L*W*H) |
1200 * 150 * 1020 mm |
|
Dimensions with Packing ( L*W*H ) |
Saturn-S1000 Plus: Carton(standard): 1265*220*1070 mm(2 boxes); Wooden box(optional): 1300*480*1224mm(1 box) Saturn-S1200 Plus: Carton(standard): 1265*220*1070mm(1 box); Wooden box(optional): 1300*260*1224mm(1 box) |
|
Operating Temperature |
-30 °C to 70 °C |
|
Operating Humidity |
5% to 90% RH (Non-condensing) |
|
Certifications |
CE, FCC |
|
Ingress Protection Rating |
IPX4 |
|
Supported Software |
ZKBio CVAccess / ZKBio CVSecurity (Depends on equipped access controller) |
|
Safety Features |
Voltage free contact input for fire alarm fail state automatic swing barrier open during power off |
|
Security Features |
Anti-tailgating, anti-pinch |
|
Product Delivery |
Pre-assembled |
|
Application Environment |
Indoor / outdoor (if sheltered) |
|
Site Preparation |
Flat & level finished floor (base plate in options for unfinished floor) |
|
Security Level |
Low |
|
Emergency Mode |
Support (swing barrier open automatically) |
|
Packing Material |
Carton (standard) / Wooden (optional) |
