ProMA Series

Multi-Biometric Outdoor Access Control with Integrated Video Intercom

ProMA series is an advanced standalone terminal that unifies multi-biometric authentication, RFID, and integrated video intercom into one rugged device. Its aluminum alloy chassis achieves IP67 waterproof and dustproof, and reaches IK07 vandal resistance, delivering dependable security in all-weather environments.

Three models for Every Security Need:

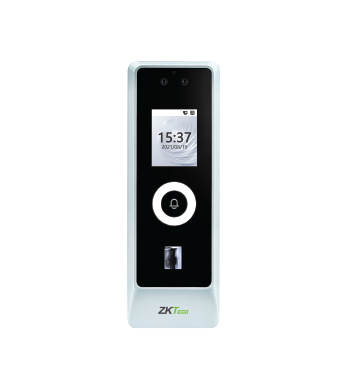

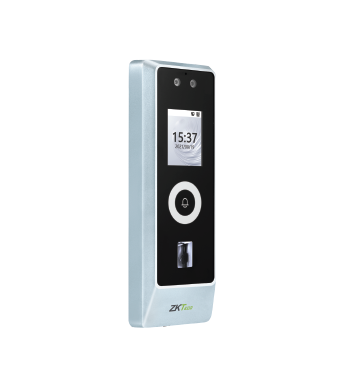

ProMA: facial authentication + fingerprint + RFID + palm (optional).

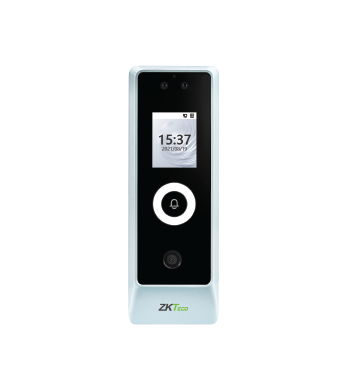

ProMA-RF: facial authentication + RFID + palm (optional).

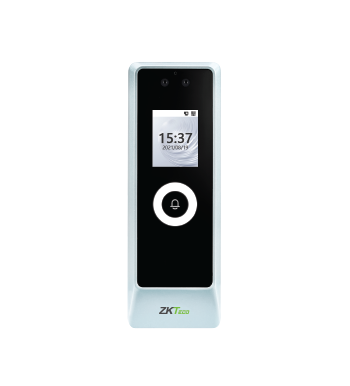

ProMA-QR: facial authentication + QR code (dynamic/ static) + RFID +palm (optional).

ProMA series authenticates users in under 0.35 seconds and supports up to 30,000 facial templates, 50,000 RFID credentials, and expandable biometric template storage (facial templates: up to 50,000 ; fingerprint template: 10,000). Optional palm authentication adds up to 5,000 templates, ensuring rapid throughput during peak traffic.

What sets ProMA series apart is its dual camera 2MP WDR imaging delivers superior facial authentication in backlighting and lowlight conditions. Its ONVIF and SIP protocol compatibility enables seamless video intercom, realtime visitor screening, and remote door release in a single device. Also, ZKTeco PUSH integration connects to ZKBio CVSecurity for centralized security management.

ProMA series eliminates the need for multiple hardware units and reduces installation complexity for your access control infrastructure across corporate buildings, campuses, logistics hubs, and residential communities.

Data Security

Deploys the AES 256-bit algorithm encryption to protect data storage. The ProMA series also secures communication between the server and the web client through HTTPS / TLS1.2 encryption.

Unified Access and Attendance Integration

Integrate with ZKTeco’s ZKBio CVSecurity for access control and security management. Dual PUSH integration: ZKBio CVAccess (Access Control) via AC PUSH or ZKBio Time (Time & Attendance) via TA PUSH—user-selectable deployment mode.

Supports Video Intercom

Video Intercom (SIP Protocol Ver. 2.0) Indoor Monitor: VT07-B22L, VT07-B26L-W
Software: ZKBio CVSecurity, BioTalk Pro.
Supports ONVIF (Compatible with Profile S/T/G/C/Q/A) to integrate with third-party network video recorder (NVR).

Embedded Web Server for Centralized Configuration

Manage ProMA series configuration via embedded web server, providing a centralized device configuration with no software installation required. Configure network settings, cloud services, video intercom setup and mobile credential (only for ProMA-QR) through the intuitive web-based dashboard.

Multiple Biometric Authentication Methods

Multiple biometric authentication methods: Facial authentication, Fingerprint authentication, Palm authentication (optional), QR Code (dynamic/static) and RFID.
Compatible with multiple RFID reader modules supporting up to 100 + card types, including:
-125 kHz: ID / HID Prox / HID iclass.
-13.56 MHz: IC/DESFire EV1 / EV2, HID iClass, LEGIC.
Supports dynamic and static QR code as secure mobile credentials via ZKBio CVSecurity App for contactless authentication.

Model Name	ProMA ProMA-RF ProMA-QR
Display	2.0" @ Color LCD Screen (240 × 320)
Camera	Binocular Camera @ 2MP WDR
Operation System	Linux
Hardware	ProMA: CPU: Quad Core A55 @1.2GHz; RAM: 512MB (Optional Palm: 1GB); ROM: 8GB; Supplement Light: Yes; Virtual Keypad: N/A; Fingerprint Sensor: Z-ID ProMA-RF: CPU: Quad Core A55 @1.2GHz; RAM: 512MB (Optional Palm: 1GB); ROM: 8GB; Supplement Light: Yes; Virtual Keypad: N/A ProMA-QR: CPU: Quad Core A55 @1.2GHz; RAM: 512MB (Optional Palm: 1GB); ROM: 8GB; Supplement Light: Yes; Virtual Keypad: N/A
Authentication Method	ProMA: Fingerprint / Face / Card / Palm (Optional) ProMA-RF: Face / Card / Palm (Optional) ProMA-QR: Face / Card / QR Code (Dynamic / Static) / Palm (Optional)
Fingerprint Template Capacity	ProMA: 10,000 (1:N), 50,000 (1:N) (Optional) ProMA-RF: N/A ProMA-QR: N/A
Face Template Capacity	30,000 (1:N) 50,000 (1:N)(Optional)
Palm Template Capacity	5,000 (1:N)(Optional, only for 1GB RAM Mainboard)
Card Capacity	50,000 (1:N)
User Capacity	50,000 (1:N)
Transaction Capacity	500000
Max. User Password Length	8 Digits
Biometric Authentication Speed	ProMA: less than 0.5 sec (Fingerprint) ; less than 0.35 sec (Facial Authentication); less than 0.35 sec (Palm Authentication) ProMA-RF: less than 0.35 sec (Facial Authentication); less than 0.35 sec (Palm Authentication) ProMA-QR: less than 0.35 sec (Facial Authentication); less than 0.35 sec (Palm Authentication)
Touchless Biometric Authentication Distance	30cm to 170cm (Facial Authentication) 15cm to 45cm (Palm Authentication)
False Acceptance Rate (FAR) %	ProMA: ≤0.01% (Facial Authentication); ≤0.0001% (Fingerprint); ≤ 0.01% (Palm) ProMA-RF / ProMA-QR: ≤0.01% (Facial Authentication); ≤ 0.01% (Palm)
False Rejection Rate (FRR) %	ProMA: ≤0.02% (Facial Authentication) ; 0.01% (Fingerprint); ≤ 0.17% (Palm) ProMA-RF / ProMA-QR: ≤0.02% (Facial Authentication); ≤ 0.17% (Palm)
Biometric Algorithm	ProMA: ZKFace V3.6 / ZKFingerprint V13.0 (Default) / V10.0 ZKPalmVein VX20.1 ProMA-RF: ZKFace V3.6 / ZKPalmVein VX20.1 ProMA-QR: ZKFace V3.6 / ZKPalmVein VX20.1
Card Type	ID & IC DESFire EV1/EV2 @ 125 kHz & 13.56 MHz (Dual Frequency) (Standard) Multi-Tech Module (Optional): Module 1: ID & IC & DESFire EV1/EV2 & FeliCa & HID Prox (125 kHz & 13.56 MHz Mutil-Frequency) (Optional) Module 2: ID & IC & DESFire EV1/EV2 & FeliCa & HID Prox & HID iClass (125 kHz & 13.56 MHz ; Mutil-Frequency) (Optional)
QR Code	ProMA: N/A ProMA-RF: N/A ProMA-QR: Dynamic QR code authentication via ZKBio CVSecurity mobile app.(Compatible with QR600 reader)
Communication	TCP/IP1 Wiegand (Input & Output)1 RS485: ZKTeco RS4851 Aux Inputs 1, Aux Outputs 1, Electric Lock1, Door Sensor1, Exit Button1, Alarm*1
Standard Functions	Webserver, DoorBell, ADMS, DST, Up to 14-digit User ID, Access Levels, Groups, Holidays, AntiPassback, Record Query, Tamper Switch Alarm, Multiple Verification Methods, DM10, AC Push and TA Push Protocol Switch, Photo ID (up to 1,000 personnel photo capacity), HTTPS / SSH Backend Access, SIP Protocol Video Intercom (Version 2.0), ONVIF Protocol (Compatible with Profile S ,Profile T ,Profile G, Profile C, Profile Q, Profile A)
Optional Functions	RFID module 1 and module 2 (switchable); Expandable biometric capacity: Palm(5,000); Fingerprint (50,000); Face Template (50,000); RFID (50,000)
Video Intercom	ZKTeco Private Protocol (TCP/IP) over Ethernet LAN; ONVIF compatible for NVR integration Support Devices: Standalone Terminal: ProMA Series(Only ZAM230 Platform) Indoor Monitor: VT07-B01, VT07-B01-W (recommended) (via Standard SIP Protocol Ver2.0) Support Devices: Standalone Terminal: ProMA Series(Only ZAM230 Platform) Indoor Monitor: VT07-B22L, VT07-B26L-W (recommended) Software: ZKBio CVSecurity, BioTalk Pro Mobile App: ZKBio Zexus
Access Control Interface	RS485 (DM10 Controller 1 Door Expansion / RS485 Card Reader / Biometric Reader)
Power Supply	DC 12V 3A
Operating Temperature	-26°C to 55°C (14.8°F to 131°F)
Operating Humidity	10% to 90% RH (Non-condensing)
Dimensions (L * W * H)	194.7mm68.7mm28.3mm
Gross Weight	1.56 Kg
Net Weight	0.45 Kg
Ingress Protection Rating	IP67 Water proof & dust proof IK07 Vandal Resistant
Supported Software	On-Premise Software: ZKBio CVSecurity (AC Push) & ZKBio Time (TA Push)
Installation	Wall-mount (Compatible with Asian Gang-box / Single Gang-Box)
Housing Material	Aluminium Alloy
Certifications	ISO 14001, ISO 9001, CE, FCC, Equivalent to RoHS
Factory ID	ProMA: AC01-PF08H-47 ProMA-RF: AC01-PF07H-47 ProMA-QR: AC01-PF06H-47
