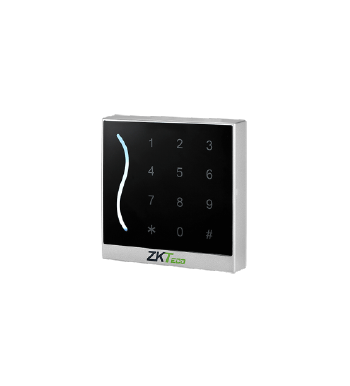

ProID RS485
ProID RS485
  • High stability and energy efficiency
  • RS485 output
  • Waterproof design

The ProID-RS family of card readers is designed to offer card technologies options to customers such as 125KHz EM, 13.56MHz MIFARE, DESFire.

With a robust all-weather protection and a beautiful modern design, the ProID-RS family is the best choice for indoor or outdoor applications.

  • High stability and energy efficiency.
  • LED light and touch keypad.
  • RS485 output.
  • Waterproof design suitable for indoor or outdoor applications.
  • Black or white color available.
Read Range ≥5cm
Reading Time ≤300ms
Input Port External LED Control
External Buzzer Control
Material ABS+PC
Supported Panel InBio160 Pro, InBio260 Pro
InBio460 Pro
Output Format RS485
Power Operating Voltage 7~13V DC
Current Draw < 80mA
LED Pulsing White Standby Light
Red and Green LEDs
Operating Temperature -20 °C ~ 65 °C
Operating Humidity 10% ~ 90% Relative Humidity
Audio                                      Beep
Index Protection IP65
Dimensions ProID20/30-RS: 90 × 90 × 16mm.

ProID RS485

0.23 Mb Data Sheet
