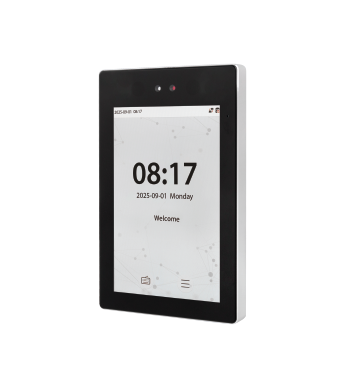

ProFace X
ProFace X
  • 2MP starlight CMOS sensor camera with WDR function
  • 8" touch screen with 400 lux
  • Ultra-large capacity of facial and card templates

ProFace X is a fully upgraded version of the ProFace product line, which is designed to deal with all kinds of scenarios. It’s powered by the latest ZKTeco-customized CPU for running the intellectualized engineering facial recognition algorithm to boost up the performance in all aspects.

With its powerful core and the latest facial recognition algorithm, the ProFace X facial recognition capability has reached a new height in the biometrics industry with a maximum of 50,000 facial templates, facial recognition speed less than 0.3 sec per face, ultimate anti-spoof ability against almost all types of fake photos and videos attack.

Other than the powerful core, ProFace X is also equipped with the latest face capture system, which enables the terminal to recognize faces under extremely strong light conditions (50,000 lux), and a microwave detector to precisely evaluate the distance between the user and the device for waking up the terminal.

ProFace X comes with a robust design that can work in extreme weather conditions from -30°C to 60°C; The IP68 dust and waterproof standard and IK04 protection standard also enhance its outdoor durability.

  • Ultra-large capacity of facial templates; 1:N - 30,000 facial templates (standard), maximum 1:N - 50,000 facial templates (optional)
  • Rapid facial recognition within 0.3s
  • Anti-spoofing algorithm against print attack (laser, color, and B/W photos), videos attack, and 3D mask attack
  • Intelligent energy-saving design precisely evaluates the distance up to 2.5m (8.2ft) between the user and the device by a microwave detector before waking up the recognition terminal
  • Integrated 125 kHz prox card reader (optional Mifare)
  • 2MP starlight CMOS sensor camera with WDR function, which enables the terminal to recognize faces under extreme lighting conditions (0.5 lux – 50,000 lux)
  • Supplement lighting with adjustable brightness
  • 8” touch screen with 400 lux, which offers high visibility under strong and direct light
  • Multiple communication methods: TCP/IP, RS485, RS232, Wi-Fi (optional)
  • IP68 dust-proof and waterproof standard and IK04 protection standard
  • Wide range of working temperature (-30 ~ 60°C; -22~ 140°F)
Capacity
 Faces  30,000 (1:N) / 50,000 (Optional)
Users / Cards  50,000
Transactions  1,000,000
User Photos  30,000
Event Photos 10,000
Compatibility Security Relay Box / Wiegand / RS485 / RS232 Slave Reader with FP / RFID / Barcode / QR-code / ZKBioSecurity Software
Hardware 900MHz Dual Core Customized CPU
512MB RAM / 8G Flash
8" High Brightness (400lux) IPS Touch LCD
125KHz EM Reader / 13.56MHz MF (Optional)
2MP WDR Low Light Camera
Brightness Adjustable LED
Hi-Fi audio
Microphone with Sensitivity Receiver
Distance Detection Sensor
Reset Button and Tamper Switch
Access Control Interface Lock Relay Output / Alarm Output / Auxiliary Input / Exit Button / Door Sensor
Special Functions IP68 & IK04
0.3s High-Speed Facial Recognition
Face Liveness Detection
Communication Https Encryption (Optional)
Event Snapshot
Standard Functions Access Levels, Groups, Holidays, DST, Duress Mode (Password), Anti-Passback, Record Query, Custom Wallpaper &Screen Saver, Tamper Switch Alarm
Communication TCP/IP / Wiegand Input / Output / Wi-Fi (Optional) / RS485 / RS232
Additional Info
Face Algorithm ZKLiveFace5.8
Working Temperature -30°C ~ 60°C,(-22°F~ 140°F)
Working Humidity ≤93%
Storage Temperature -40°C ~ +65°C
Storage Humidity ≤93%
Net Weight 853g
Dimensions (H*L*D) 227*143*26mm
Power
Operating Voltage 12V DC
Current Draw < 2,000mA
';

ProFace X Datasheet

1.3 Mb Data Sheet
2019-08-03

ProFace X User Manual

2.89 Mb User Manual
2019-08-02

ProFace X Quick Start Guide

2.04 Mb Quick Start Guide
2019-08-02
