mTS1000 Series

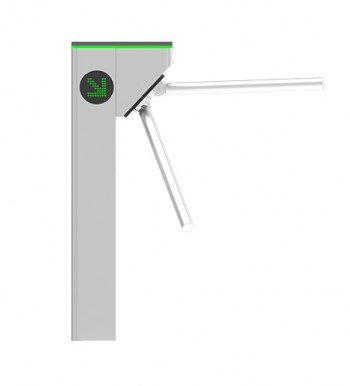

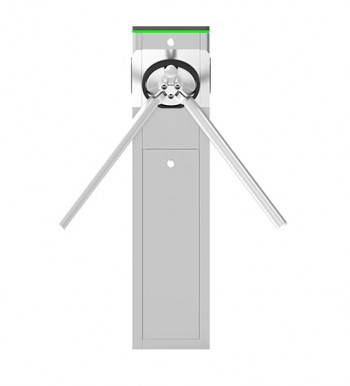

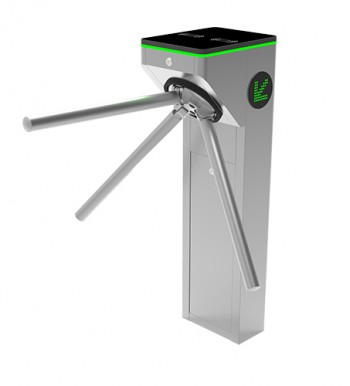

mTS1000 Tripod Turnstile

mTS1011 Tripod Turnstile
(w/ controller and RFID reader)

mTS1022 Tripod Turnstile
(w/ controller and combination of fingerprint & RFID reader)

The new tripod turnstile with compact design to reduce occupancy of floor space, whole body made up of stainless steel with are durable. Integrated with entry indicator light on conspicuous position to guide passage. Turnstile are will drop arm automatically once occur emergency events.

  • SUS304 stainless steel housing

  • Bi-directional tripod turnstile with arm drop function

  • LED pictograms for intuitive use and high throughput in both directions

  • High quality at a cost effective price

  • Low power consumption

  • Wide range of accessories

  • Easy and simple installation process

Power Requirements

AC110V / 220V, 50 / 60Hz

Working Temperature

-28 °C to 60 °C

Working Humidity

5% to 80%

Working Environment

Indoor/Outdoor (if sheltered)

Speed of Throughput

Maximum 25 /minute

Lane Width

478 (mm)

Footprint

138*250 (mm)

Dimension (L*W*H)

798*750*950 (mm)

Net Weight (kg)

35 ± 2.5

Weight with Packing (kg)

40 ± 5

LED Indicator

Y

Cabinet Material

SUS304 stainless steel

Lid Material

Acrylic+Glass

Barrier Material

SUS304 stainless steel

Barrier Movement

Rotating

Emergency Mode

Y

Security Level

Medium

MCBF

2M

Options/Accessories

Cardbox, Remoter control, QR reader
