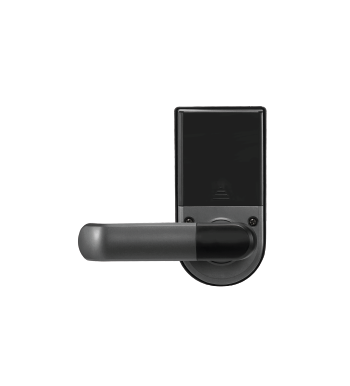

ML200
  • Water resistance
  • No drilling required
  • Smart alerts

ML200 is a new entry-level digital keypad smart lock with Bluetooth communication for semi-outdoor scenarios. With the water-resistant design in all aspects, it reliably secures the front door in some rainy situations. It's super easy to install on the existing lever or knob of a single-hole door directly and finish the lock's setup with just a few processes in minutes.

The additional Bluetooth Gateway allows you to unlock the door lock remotely, check the log history, and share the temporary or dynamic passcode via ZSmart App. More importantly, you can unlock the lock with voice commands when paired with a compatible Amazon Echo or Google Nest device.

ML200 will be a better choice for the front door, garage entry and dramatically creates a more straightforward, smarter, and more convenient life.

  • No drilling required
  • Water resistance
  • Remote control
  • Random Passcode
  • Temporary access
  • Voice control
  • Smart alerts
  • Reversible design
Case Material Zinc Alloy (Level & Front Panel) + ABS (Back Shell)
Mortise American Standard Single Latch German Standard Mortise (optional)
Identification Mode Smart Phone and Passcode
User Capacity 100
Passcode Capacity 100
Communication Bluetooth 5.0
Remote Access Bluetooth Gateway Required
Voice Control Amazon Alexa, Google Assistant
Power Supply 4×AA Alkaline Battery (not included)
Backup Power Interface Micro-USB Port Supported
Battery Life Up to 1.5 years (about 12,000 access)
Door Thickness 30-60mm (standard)
Backset Adjustable 60 or 70 mm (only for single latch)
Dimensions (W*L*D) Front – 75*138*23 (mm) Back – 75*150*27 (mm)
Color Options Silver / Gray
Operating Temperature -20°C to 55°C
Operating Humidity 10%~90% RH (non-condensing)
Certifications CE-RED, FCC ID
';

ML200 Datasheet

0.9 Mb Data Sheet
2020-11-05

ML200 User Manual

0.69 Mb User Manual
2020-11-05

ML200 ML300 Series Installation Guide (ASSL)

2.5 Mb Installation Guide
2020-11-05

ML200 ML300 Series Installation Guide (GSM)

2.44 Mb Installation Guide
2020-11-05
