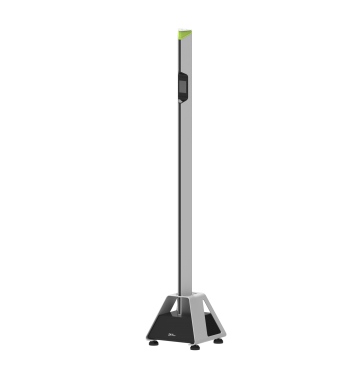

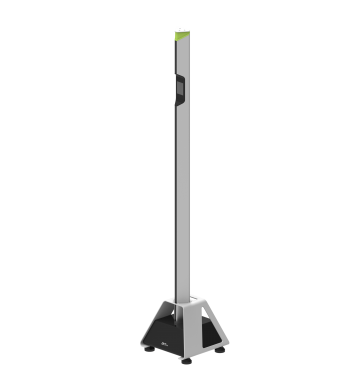

MDS100

Ferrous Contraband and Smartphone Detector



  • Detect smartphone (switch ON/OFF mode), smartwatch and ferrous contraband
  • Strong anti-Interference ability
  • Cutting-Edge Single-Axis Magnetic Field Sensor Supporting a High Throughput Rate of up to 50 People per Minute
  • Accurate Two-Zone Detection (Optional Three-Zone) with a Maximum Detection Distance of up to 120
  • 100 adjustable sensitivity levels for each detection zone
  • Highly secure as no radiation emitted, safe for pregnant women and people who implanted peacemakers
  • Embedded rechargeable battery supports up to 28 operating hours
  • Waterproof with protection level IPX5
  • Easily portable and quick to assemble
  • Optional Millimeter-Wave Radar for Precise Human Detection

Model

MDS100

Maximum Detection Distance

120cm

Detection Radius

Up to 80cm

Throughput Rate

50 people/minute

Sensitivity Level

100

Alarm Zone

2 Zones (Standard), 3 Zones (Optional)

Touch Screen Size

3.5inches

Alarm Volume

1 to 10 Levels

Alarm Ring

6 Types(selectable)

Input Voltage

15V

Embedded Rechargeable Battery

8Hrs to be fully charged ; Supports 26 Hrs of operation

Battery Capacity

9000mAh

Input Voltage

15V

Operating Current

260mA

Operating Power

3.9W

Housing Material

Aluminum Alloy

Protection Level

IPX5

Operating Temperature

10 to 50

Storage Temperature

-35 to 70

Operating Humidity

0%RH to 95%RH (non-condensing)

Dimension(L*W*H)

360.6*380.0*1969.4(mm)

Dimension with Packing(L*W*H)

470*545*2380(mm)

Net Weight

15kg

Weight with Packing

40kg

Certifications

CE FCC

Optional Accessories

Millimeter-Wave Radar (24 GHz, Operating Range: 0.5 m to 3 m),

Detector Moving Wheels

MDS100_Datasheet_20250218

2.14 Mb Data Sheet
2025-02-18
Download
