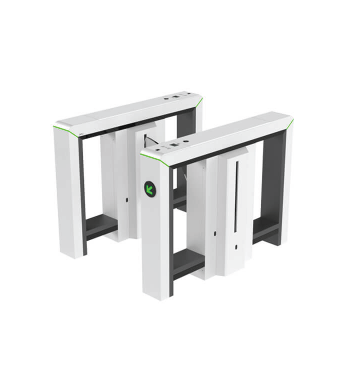

Mars Pro-F1000 Series
Mars Pro-F1000 Series
  • Singe-lane flap barrier turnstile
  • Highly durable and low maintenance cost
  • Switchable reader panel

Highly Durable and Low Maintenance Cost

  • Modularized structure design
  • Exposed mounting holes for easy installation
  • Mainly made of SPCC (option: SUS 316 stainless steel)

PGIC Controller

  • Equipped with a PGIC controller
  • Access control
  • General features and parameters settings on the controller's menu

Switchable Reader Panel

  • Six panels available: RFID only, RFID & Fingerprint, RFID & QR Code, RFID & Fingerprint & QR Code, RFID & Card Slot, RFID & Card Slot & QR Code
  • Reducing middlemen's inventory pressure
  • Reducing installation time and expenses

Installation Place for Facial Recognition A&C Terminal

  • Diameter: 34mm
  • Integration with Facial Recognition, Temperature and Mask Detection Terminals

LED Indicator

  • Visual cues for correct walking direction
  • Clear guidance with green and red illustration

Infrared Sensors

  • 16 pairs of infrared sensors for stronger tailgating detection
Model Mars Pro - F1000 Series
Power Requirements AC100V to 120V / 200V to 240V, 50 to 60Hz
Working Power 50W; 22W (stand-by)
Drive Unit Brushless Motor
MCBF 10 million
Technical Throughput Rate Up to 30 people per minute
Barrier Movement Retract
Noise <60dB
Infrared Sensor 16 pairs
LED Indicator Support
Working Temperature -25°C to 65°C
Working Humidity 20% to 95% (non-condensing)
Working Environment Indoor / Outdoor (if sheltered)
Lane Width 600mm
Dimensions (L*W*H) 1360 * 180 * 1010 (mm)
Dimensions with Packaging (L*W*H) 1510 * 365 * 1216 (mm) (2 boxes)
Net Weight 180kg (±5kg)
Cabinet Material SPCC (option: SUS316 stainless steel)
Lid Material SPCC (option: SUS316 stainless steel)
Barrier Material Acrylic
Packing Material Wooden case
Protection Level IP34
