Mars-F1200 Series
Mars-F1200 Series
  • Dual-lane flap barrier turnstile
  • Highly durable and low maintenance cost
  • Switchable reader panel

Mars Series is the latest and finest creation from ZKTeco, which designed to deliver an ultimate user experience, safety level, and integration friendliness. Up to 22 pairs (Mars-Pro Series) Infrared sensors greatly enhanced its anti-tailgate performance. Creative snap-fit, screwless, modularized design, which makes installation and maintenance work easier than ever, and saved up to 30% production lead time.

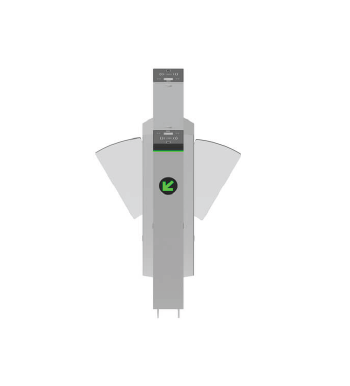

Mars-F1200 Dual-Lane Flap Barrier Turnstile
Mars-F1211 Dual-Lane Flap Barrier Turnstile (w/ controller and RFID reader)
Mars-F1222 Dual-Lane Flap Barrier Turnstile (w/ controller and fingerprint & RFID readers)

Highly Durable and Low Maintenance Cost

  • Modularized structure design
  • Exposed mounting holes for easy installation
  • Mainly made of SPCC (option: SUS 316 stainless steel)

PGIC Controller

  • Equipped with a PGIC controller
  • Access control
  • General features and parameters settings on the controller's menu

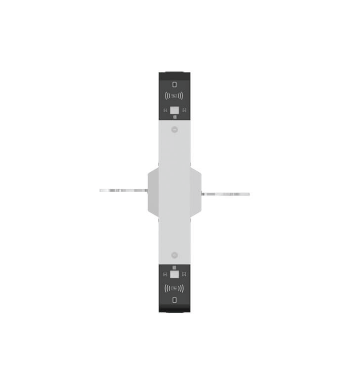

Switchable Reader Panel

  • Six panels available: RFID only, RFID & Fingerprint, RFID & QR Code, RFID & Fingerprint & QR Code, RFID & Card Slot, RFID & Card Slot & QR Code
  • Reducing middlemen's inventory pressure
  • Reducing installation time and expenses

Installation Place for Facial Recognition A&C Terminal

  • Diameter: 34mm
  • Integration with Facial Recognition, Temperature and Mask Detection Terminals

LED Indicator

  • Visual cues for correct walking direction
  • Clear guidance with green and red illustration

Infrared Sensors

  • 5 pairs of infrared sensors for stronger tailgating detection
  • Maximum 8 pairs of sensors could be installed
Model Mars-F1200 Series
Power Requirements AC100V to 120V / 200V to 240V, 50 to 60Hz
Working Power 50W; 22W (stand-by)
Drive Unit Brushless Motor
MCBF 3 million
Technical Throughput Rate Up to 30 people per minute
Barrier Movement Retract
Noise <60dB
Infrared Sensor 5 pairs (option: ≤8 pairs)
LED Indicator Support
Working Temperature -25°C to 65°C
Working Humidity 20% to 95% (non-condensing)
Working Environment Indoor / Outdoor (if sheltered)
Lane Width 600mm
Dimensions (L*W*H) 1360 * 180 * 1010 (mm)
Dimensions with Packaging (L*W*H) 1510 * 365 * 1216 (mm)
Net Weight 75kg (±5kg)
Gross Weight 100kg (±5kg)
Cabinet Material SUS304 stainless steel (option: SUS316 stainless steel)
Lid Material SUS304 stainless steel
Barrier Material Acrylic
Packing Material Wooden case
Protection Level IP34
