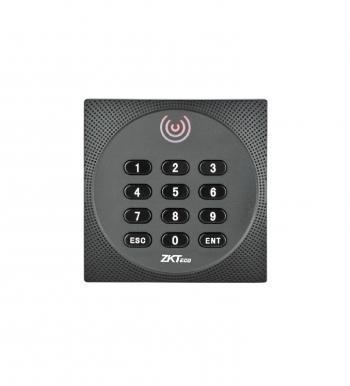

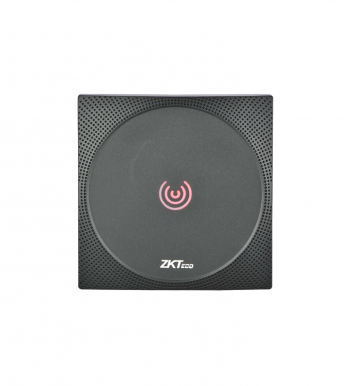

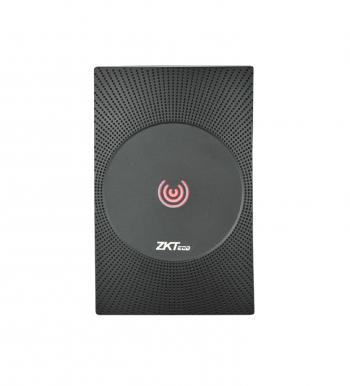

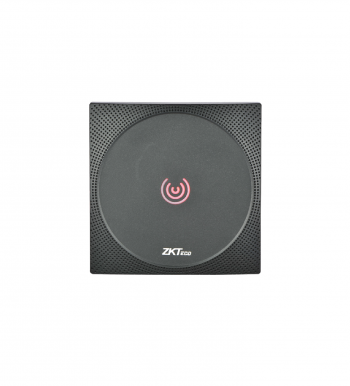

| KR610 | KR611 | KR612 | KR613 | ||||||||||
| E | E-RS | D | D-RS | E | E-RS | D | D-RS | E | E-RS | D | D-RS | ||
| Proximity | EM 125 KHz | * MF/DF 13.56 MHz |
EM 125 KHz | * MF/DF 13.56 MHz |
EM 125 KHz | * MF/DF 13.56 MHz |
EM 125 KHz * MF / DF 13.56 MHz |
||||||
| Read Range | Up to 10 cm | Up to 5 cm | Up to 10 cm | Up to 5 cm | Up to 8 cm | Up to 4.5 cm | Up to 10 cm (EM) / Up to 5 cm (MF) | ||||||
| Reading Time | ≤300ms | ||||||||||||
| Input Port | External LED Control / External Buzzer Control | ||||||||||||
| Material | ABS+PC with texture | ||||||||||||
| Output Format | 26/34 bits | 26 bits | 34/66 bits | 66 bits | 26/34 bits | 26 bits | 34/66 bits | 66 bits | 26/34 bits | 26 bits | 34/66 bits | 66 bits | 34 bits |
| Power/Current | DC 6-14V / Max.70mA | ||||||||||||
| LED | Red and Green LEDs | ||||||||||||
| Op. Temperature | -20°C to 65°C(-10° to +70°C) | ||||||||||||
| Op. Humidity | 10% to 90% relative humidity non-condensing | ||||||||||||
| Beeper | Yes | ||||||||||||
| Index of Protection | IP65 | IP65 | IP65 | ||||||||||
| Dimensions | 75x116x16 mm | 86x86x16 mm | 86x86x20 mm | 86x86x16 mm | |||||||||
| Cable length | 150cm | ||||||||||||
