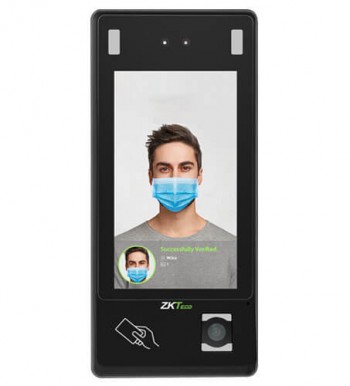

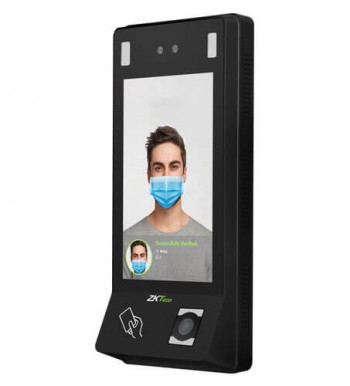

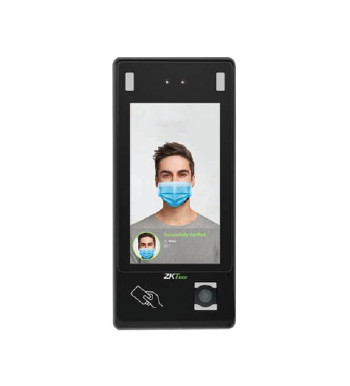

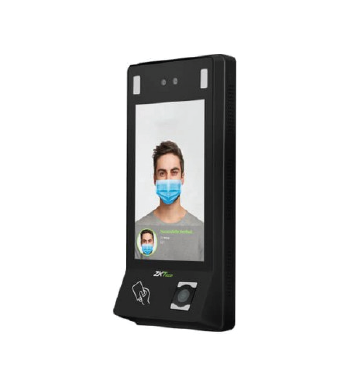

G4 Pro is equipped with a fully upgraded version of the Android 9.0 system, adding new features such as PoE power supply, and it is compatible with 4G network, satisfying various market needs including Europe, the Middle East, Africa, South Korea, Thailand, and India.
Resembles G4, G4 Pro is equipped with ZKTeco’s enhanced Visible Light Facial Recognition technology. Also, G4 Pro has installed a new mini QR code reader to scan T&A/A&C dynamic QR codes on the ZKBio CVSecurity mobile application. The reader supports QR code, PDF417, Data Matrix, MicroPDF417, Aztec scanning in third-party development projects.
ZKTeco also provides an LCDP tool which is used for 3rd party applications integration. It includes simplied bottom hardware interface, algorithm interface and some upper business logic and conguration, which can make development easier and more efficient.
| Capacity | 50,000 Users 50,000 Faces 50,000 Cards 1,000,000 Transactions |
| CPU | 64bit Octa- core Customized Computer Vision 1.8GHz CPU |
| Storage | 2GB LPDDR3 16GB eMMC |
| Screen Type | 7-inch Touch Screen 720*1280 Pixels |
| Camera | 2MP Binocular Camera |
| Communication | TCP/IP, USB Host, RS485*, Wiegand Input, Wiegand Output, Wi-Fi, Bluetooth, 4G(optional) WLAN: 2.4G, 802.11 b/g/n Bluetooth: BT2.1+EDR/3.0/4.1 LE/4.2 BLE LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28 LTE TDD: B38/B39/B40/B41 WCDMA: B1/B2/B4/B5/B8 GSM: 1800/1900MHz Note: RS485 is for RS485 readers |
| Access Control Interface | RS485 (OSDP v2.1.7), Wiegand In/Out, Lock Relay Output, Exit Button, Alarm Output, Auxiliary Input, Door Sensor, External Bell |
| Card Type | 125kHz ID card & 13.56MHz IC card Multi-tech Card Module (optional) |
| QR Code Scanner | Dynamic QR codes on the ZKBio CVSecurity mobile application QR code, PDF417, Data Matrix, MicroPDF417, Aztec scanning in third-party development projects |
| Fingerprint | Z-ID Fingerprint Sensor 30,000 Fingerprints (optional) |
| Algorithm | ZKFace 5.6.2 ZKFinger 10.0 |
| Operating Temperature | -20°C to 55°C (-4°F to 131°F) |
| Operating Humidity | <90%RH |
| Storage Temperature | -25°C to 65°C (-13°F to 149°F) |
| Storage Humidity | <90% |
| Dimensions (L * W * H) | 264mm*120mm*51mm (9.69in*4.72in*2in) |
| Facial Recognition Speed | ≤ 1s |
| Facial Recognition Distance | 0.3m to 1.2m |
| Power Supply | DC 12V, 3A IEEE 802.3af / at |
| Standard Firmware Functions | Push, Schedule Bell, Automatic Status Switch, Record Query, Access Levels, Groups, Holidays, DST, Duress Mode (Password & Fingerprint), Anti-Passback, Customization of Wallpaper & Screen Saver |
| Supported Software | ZKBio Time (Only Time & Attendance Firmware) ZKBio CVSecurity |
| Certifications | CE, FCC, ISO9001, ISO14001, ISO20000 |
