• FHT2300: Full Height Turnstile
  • FHT2311: Full Height Turnstile with RFID Access Control System
  • FHT2322: Full Height Turnstile with Fingerprint and RFID Access Control System
Power requirements AC110V/220V, 50/60Hz
Working Temperature  -28℃ 60℃
Working humidity -28℃ 60℃
Working Environment Indoor/Outdoor

Speed of throughput

RFID Maximum 30/minute
Fingerprint Maximum 25/minute
Face Maximum 15/minute
Vein Maximum 15/minute
Lane width(mm)              600
Footprint(mm*mm) 1400*1370

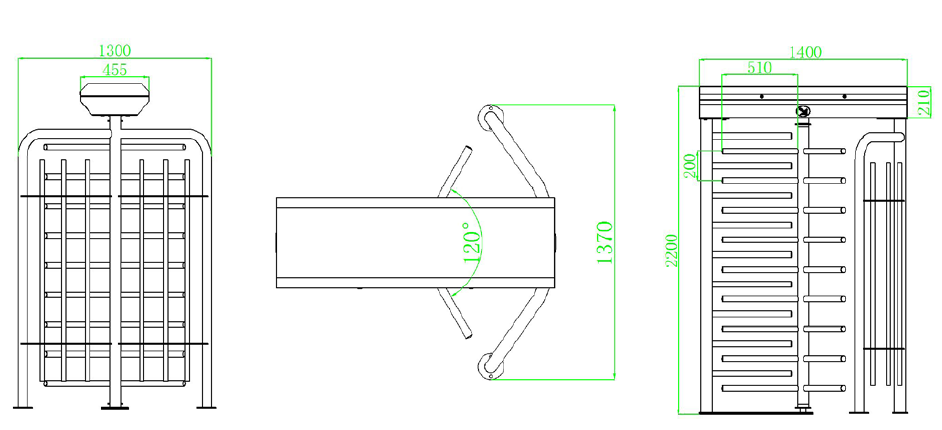

Dimension(mm) L=1400 W=1370 H=2200
LED indicator Y
Cabinet material SUS304 Stainless Steel
Barrier material SUS304 Stainless Steel
Barrier movement Rotating
Emergency mode Y
Security level High
MCBF 2 million
Ingress protection IP54

FHT2300 Series

0.33 Mb Data Sheet

Full Height Turnstile Series Installation Guide EN_v1.1_20220708

15.76 Mb Installation Guide

Full Height Turnstile User Manual-20220325

1.36 Mb User Manual
