Speed Gate Flap Barrier for High Pedestrian Flow

Fast Passage
Durable and Stable
Infrared Detection
Integrated with Biometric Authentication Options (Face, Fingerprint, RFID and QR Code)

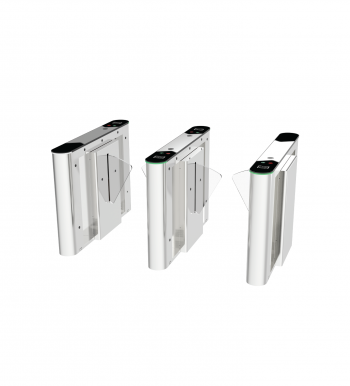

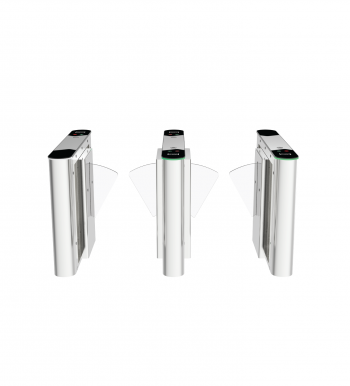

The FBL6000 Pro Series flap barier is designed for high-traffic environments, it features a rapid and responsive flap bariers that achieves a throughput rate of 30 people per minute, effectively alleviating congestion.

Constructed with SUS304 stainless steel and IPX4 protection rating, ensuring the

FBL6000 Pro for waterproof and corrosion resistance. Also, the FBL6000 Pro Series is equipped with multiple infrared sensors, anti-pinch technology, and an unauthorized access alarm system, it ensures pedestrian safety at all times. Whether in corporate offces, transit stations, or public facilities, the system quarantees a safe and reliable experience.

Designed for All-Weather Performance
- Constructed with SUS304 stainless steel, FBL6000 Pro features an IPX4 protection rating, ensuring
  waterproof and corrosion resistance, which makes it ideal for operation in outdoor environments and
  adverse weather conditions.
Seamless Integration with Biometric Security Access Control
- It can be integrated with various identity recognition devices such as RFID card readers, QR code readers, fingerprint and facial authentication devices. By matching dierent authentication devices and integrating various access control systems, it eciently manages high throughput rates, ensuring smooth pedestrian flow.
Safety Functions
- It has functions such as automatic fault detection, dry contact and switch signal input interfaces,
  adjustable automatic delayed closing, safety detection by infrared sensors, alarm for illegal intrusion
  and reverse passage, and anti-pinch function, providing all-round protection for pedestrian passage
  safety and stable system operation.
Emergency Mode
- The flap barriers will automatically open in case of power failure to ensure the rapid evacuation of
  personnel in emergency situations. The device is linked with are protection signals to open the door,
  ensuring the safe passage of pedestrians in emergency situations.

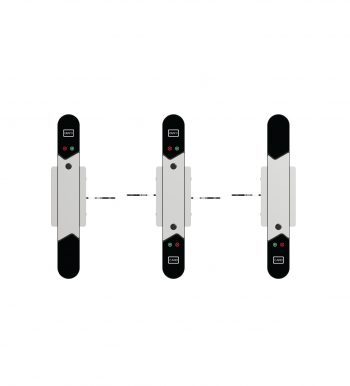

Passage Indication
- It is equipped with passage indicator lights. A green arrow indicates permission to pass, and a red
  cross indicates prohibition of passage. The indication is clear and understandable, guiding
  pedestrians to pass in an orderly manner.

Model Name	FBL6000 Pro FBL6200 Pro
Audio Indicator	Speaker
Visual Indicator	LED pictograms Steady green arrow = normal use Steady red cross = door closing
Display	N/A
Lane Type	FBL6000 Pro: Single lane FBL6200 Pro: Dual flap barriers for additional lane
Lane Width	600 mm
Lane Height	994 mm
Barrier Movement Type	Retractable Flap barrier (Acrylic / Optional: Tempered Glass)
Motor	DC brushless motor
Movement Speed	0.6s to 1s
Movement Accuracy	1.5 Degree per movement
Clutch	N/A
Cabinet Material	SUS304 Stainless steel
Lid Material	SUS304 Stainless steel
IR Sensors	Equipped with 5 pairs (standard). Support up to 9 pairs (optional).
Motherboard Function	System configuration, access mode configuration, anti-tailgate configuration.
Motherboard Communication	Fire alarm port (Relay)1, RS485 port1
Controller	C3 series controller/ InBio series controller (optional). 3rd-party controller subject to turnstile chassis space.
Credential Options	RFID reader: ProID10; Fingerprint reader: FR1500S or 3-rd party readers; QR Code reader (Static / Dynamic): QR500; Facial authentication terminal (Post mount): G4 Pro
Flow Rate	Facial Recognition: 30 passengers per minute; RFID: 20 passengers per minute; Fingerprint: 15 passengers per minute ; QR Code: 30 passengers per minute
Accessibility	Standard lane (600mm) : adult
Power Supply	AC110-220, 50/60 Hz
Power Rating	40W
Fire Signal	Input for voltage-free contact
Noise Level	Less than 60 dB
MCBF	>5 million
Net Weight	FBL6000 Pro: 100 kg FBL6200 Pro: 70 kg
Gross Weight	FBL6000 Pro: 150 kg FBL6200 Pro: 90 kg
Dimensions ( LWH )	FBL6000 Pro: 1414 * 300 * 994 mm FBL6200 Pro: 1414 * 300 * 994 mm
Dimensions with Packing ( LWH )	FBL6000 Pro: 1510 * 780 * 1230 mm FBL6200 Pro: 1510 * 400 * 1230 mm
Operating Temperature	-20°C to 70°C
Operating Humidity	0% to 95% RH (non-condensing)
Certifications	CE, FCC
Ingress Protection	IPX4
Supported Software	ZKBio CVAccess / ZKBio CVSecurity (Depends on equipped access controller)
Safety Features	Power off unlock device / Fire alarm active door release
Security Features	Anti-intrusion, wrong way enter alarm Automatically close / lock door no one pass
Product Delivery	Pre-assembled for easy installation
Application Environment	Indoor and Outdoor
Site Preparation	Flat and level finished floor (optional base plate for unfinished floors)
Security Level	Middle
Emergency Mode	Flap barrier unlocks automatically during emergencies
Packing Material	Wooden Box
