FaceKiosk-H13C | ZKTeco Middle East
FaceKiosk-H13C/H13C[TD]
  • Support MF Module, Fingerprint, Ticket Printer & QR Code Scanner
  • Support Temperature Detection Module (Optional)
  • Support 1:1 and 1:N face comparison

FaceKiosk-H13C, our 13.3-inch touch screen multipurpose facial recognition smart Kiosk with Android system, is designed to provide friendly and interactive user experience by incorporating fingerprint, ticket printing, QR code, and Mifare module in it.

FaceKiosk-H13C has a range of optional module functions available based on FaceKiosk series, including a built-in Mifare card reader and fingerprint sensor, which can verify the user's identity through not only facial recognition but also a fingerprint and smart card even hybrid verification.

In addition to collecting and verifying the identity information, it also supports small ticket printing, two-dimensional code scanning, and yet can be used as queuing machines as well as self-service machines.

Moreover, the hardware interface and diversified functions can meet the different needs of different users in different scenarios.

ZKTeco EDK (Facial Recognition, Age, and Gender Assessment) based on the Android platform is combined with a touch screen for facilitating the rapid deployment of third-party apps, providing customers with high quality and stable hardware development environment.
Relying on the ZKTeco technology and synergizing with ZKBioSecurity, BioTime, and other ZKTeco software, it can be applied to many scenes and fields such as conference display, e-learning classes, time & attendance, access control, visitor self-service, and so on.

  • Support MF Module, Fingerprint, Ticket Printer & QR Code Scanner
  • Support Temperature Detection Module (Optional)
  • Support 1:1 and 1:N face comparison
  • Support TCP/IP, Wi-Fi
  • Interactive operation experiences
  • Integrated binocular camera with anti-spoofing function
  • The combination of barcode and printer can meet different customer needs
  • Unique registration, one facial template per user
  • Strong flexibility and adaptability in applications
  • Elegant appearance
  • Temperature Measurement Distance: 30 ~ 50cm (1 ~ 1.64ft)
  • Temperature Measurement Accuracy: ±0.3°C (±0.56°F)
  • Temperature Measurement Range: 34 ~ 45°C (93.2 ~ 113°F)
Attendance Record Capacity 100000
Facial Template Capacity 10000
User Capacity 10000
Fingerprint Capacity 10000
MF Cards 10000

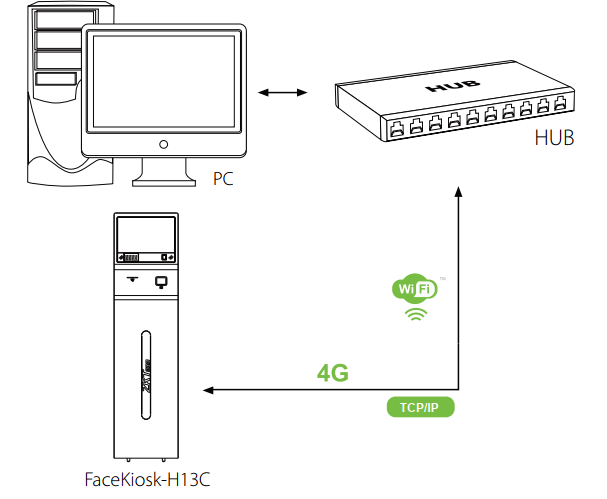

Communication TCP/IP, Wiegand, Wi-Fi
Screen Dimensions 13.3-inch capacitive touch screen
Resolution 1920*1080 pixels
Communication Ports 1*RJ45, TF card slot, 1*HDMI, RS232/485
Camera Pixel 2-megapixel
QR Code Module
Barcode, QR Code
Ticket Printer
Line Thermal Printer  Printing speed: 100mm/s (max.)  Paper width: 58±0.5mm
Operating System Android 5.1.1
RAM 2GB DDR3
ROM 16GB
GHz 1.8GHz
CPU Quad-core A17 1.8GHz (ZKTeco boosted)
Power Supply 12V-3A
Operation Environment Operating Temperature: 0 ~ 50°C (32 ~ 41°F) Operating Humidity: <90% Storage Temperature: -40 ~ 60°C (-40 ~ 140°F) Storage Humidity: 20% ~ 90%
Dimensions (L*W*H) 354 * 50 * 1420 mm (13.94 * 1.97 * 55.91 in)



Body Temperature Detection Specifications (FaceKiosk-H13C[TD] only):



Preventative Measures Mask detection Body temperature detection
Temperature Measurement Distance 30 ~ 50cm (1 ~ 1.64ft)
Temperature Measurement Accuracy ±0.3°C (±0.56°F)
Temperature Measurement Range 34 ~ 45°C (93.2 ~ 113°F)
';
