FaceKiosk-H10A
FaceKiosk-H10A
  • Centralized management of the platform, comprehensive data statistics, and clear conference data
  • Face or card verification for participants to check in and access control
  • Email notifications for schedule confirmation
  • Access authority management
  • The green and red lights visually display the occupancy of the conference room. When users occupy a conference room, the red light will be on. The green light is on when the conference room is idle.
  • Support multiple languages (English, Arabic, French, Indonesian, Portuguese,  Russian, Thai, Turkish, Spanish, and Korean)

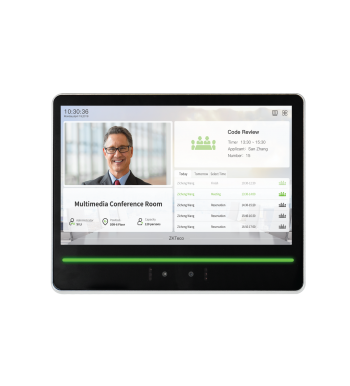

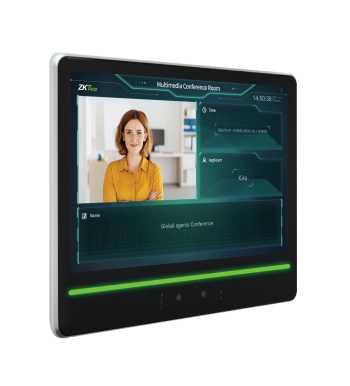

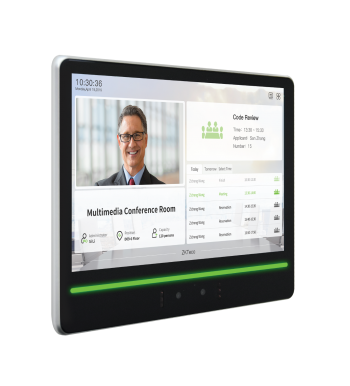

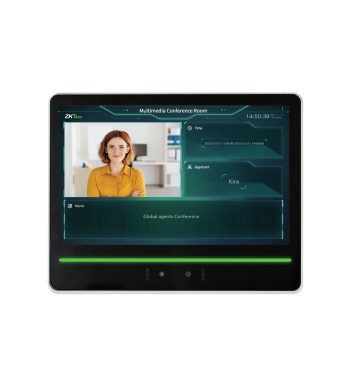

FaceKiosk-H10A is a facial recognition terminal that supports smart reservation and scheduling in corporate meeting rooms.

FaceKiosk-H10A is embedded with a wide binocular dynamic camera and RFID card reader. Meeting participants can verify their identity through facial recognition or IC card reading.

SPECIFICATIONS

 Capacity User:10,000
Face:10,000
Card :10,000
Total Transaction: 200,000
 Screen LCD screen size : 10.1-inch capacitive touchscreen
Screen scale : 16:9
Display Resolution : 1280*800
 Core parameters CPU:ARM Cortex-A17 Quad-core 1.8 GHz
OS:Android 7.1
ROM:8G
RAM :2G
Communications: TCP/IP, Wi-Fi
Card Type: IC Card
Interface: USB*1,RJ45*1,DC*1
Camera :2MP Wide Binocular Dynamic Camera
Visual Indicator: 2 Status Lights (Red Light and Green Light)
Dimensions(L*W*H):241.87*193.87*28mm(9.52*7.63*1.10in)
 Basic Parameters Gross Weight :1.8kg
Standby Power Consumption:≤0.5W
Operating Power Consumption:<25W
Power Supply:12V 3A
Application Environment:Indoor, Semi Outdoor
Operating Temperature:-10℃ to 50℃ (14 °F to 122°F)
Storage Temperature:-20 to 60℃ (-4 °F to 140°F)
Certificates:ISO9001, ISO14001
Software:Armatura One; ZKBio Time
