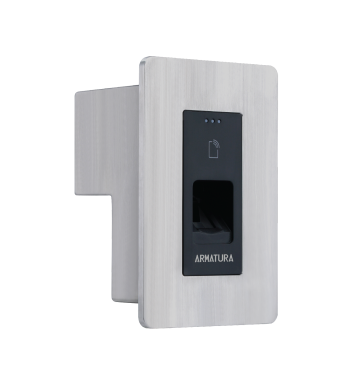

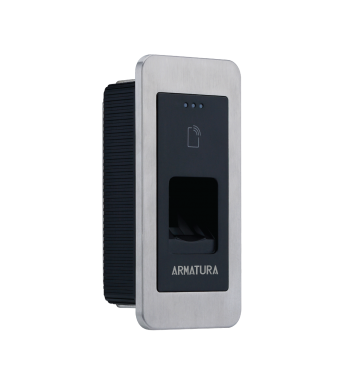

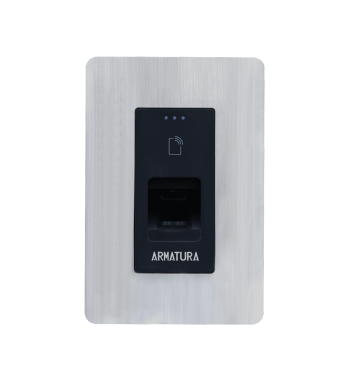

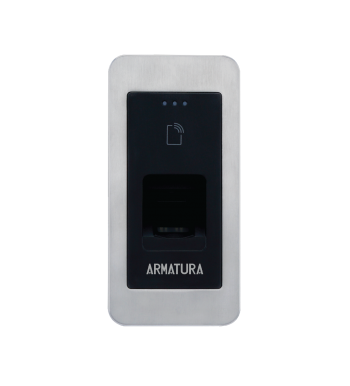

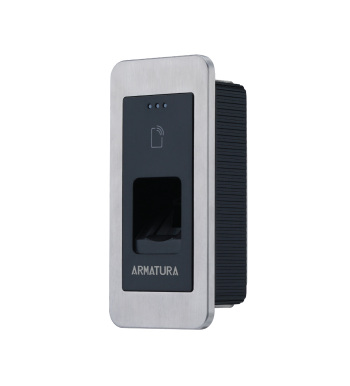

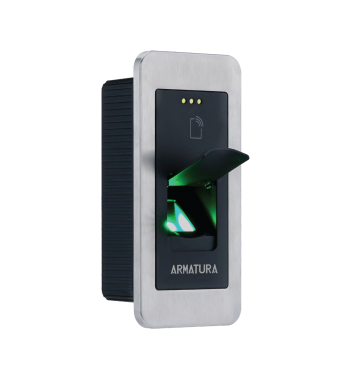

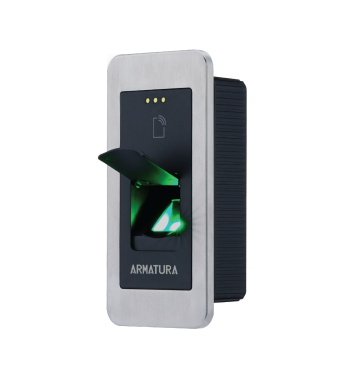

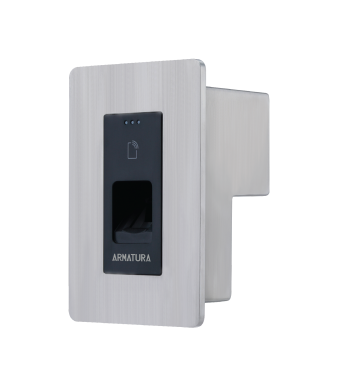

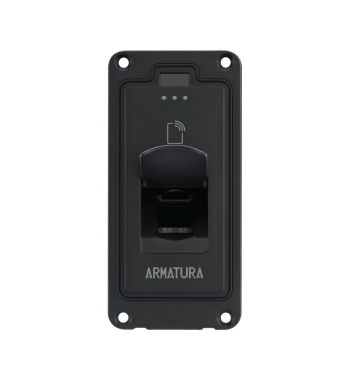

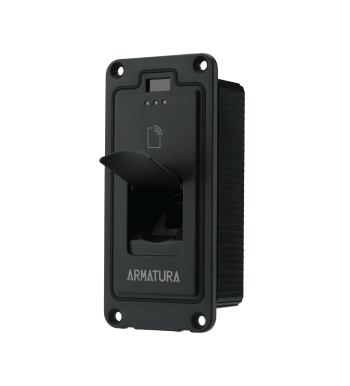

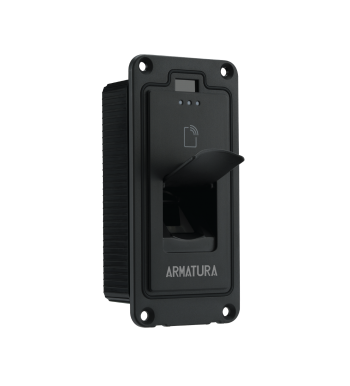

| Model Name | EP30CF |
| Operating Frequency / Standards |
125 kHz
13.56 MHz
2.4 GHz Bluetooth®
|
| Functions | RFID, Bluetooth, Fingerprint |
| Communications & Panel Connection | OSDP (v2.2) via RS485 |
| RFID Reading Distance |
13.56MHz & 125kHz: Up to 2.3"/60 mm (depending on environment and transponder)
Up to 393.7"/ 10m with a Bluetooth Smartphone (configurable distances on each reader)
|
| Data Protection |
AES128 (Secured Communication between Reader & Controller)
Secure Data Storage in EAL6+ Certified Crypto Chip
|
| Fingerprint Algorithm | AMTFingerprint v10.0 |
| Visual Indicator | RGB LEDs (Configurable By 'Armatura Connect' Mobile APP) |
| Audio Indicator |
Internal buzzer with adjustable intensity
(Configurable By 'Armatura Connect' Mobile APP)
|
| Power Requirement / Power Supply | 9 VDC to 24 VDC |
| Operating Temperature | -4°F - 131°F /-20°C to 55°C |
| Dimensions (L*H*D) | With Metal Case: 2.59" L x 5.28" H x 1.54" D (65.9 x 134.2 x 39.1mm) Without Metal Case: 2.57" L x 5.26" H x 1.54" D (65.2 x 133.7 x 39.1mm)
|
| Tamper Switch | Magnetic tamper detection system |
| Certifications | CE, FCC, UL294(Coming Soon)，RoHs3.0, WEEE |
| Mounting | Flush Mount |
| Protection / Resistance | Weather & Dust Proof Protection Rating compliant with IP65 |
