Elite Access
  • 2MP starlight CMOS sensor camera with WDR function
  • 8" touch screen with 400 lux
  • IP68 & IK04

Elite Access is a new high-level facial recognition terminal with extremely powerful facial recognition capability supported with ZKTeco’s customized powerful CPU and ultra-large capacity of facial templates, a maximum of 50,000 facial templates for 1:N recognition.

With its powerful core and the latest facial recognition algorithm, Elite Access rapidly recognizes a face within 0.3 seconds, while effectively preventing any kinds of print attack with its strong anti-spoofing algorithm. Besides, Elite Access is equipped with a 2MP low-light WDR camera and backed by an international standard rating of IP68 and IK04 which guarantees high-quality facial recognition and outdoor durability under challenging lighting conditions (0.5lux - 50,000lux) and extreme weather from -30°C to 60°C.

Elite Access's high corrosion resistance has also been proven so the terminal is suitable for exterior and interior installation environments with different levels of salinity and humidity such as industrial and coastal areas.

  • Ultra-large capacity: 30,000 facial templates (standard) or 50,000 facial templates (optional) for 1:N facial authentication
  • Unrivaled facial recognition speed (less than 0.3 seconds per face)
  • 2MP starlight CMOS sensor camera with WDR function, which enables the terminal to recognize faces under challenging lighting environment (0.5 lux – 50,000 lux)
  • Anti-spoofing algorithm against print attack (laser, color, and B/W photos), videos attack, and 3D mask attack
  • Smart energy-saving design; a microwave detector will wake up the terminal when it precisely detects the distance between the user and the device is 3 meters (~9.84 feet) or less
  • Integrated 125 kHz prox card reader (optional Mifare)
  • 8” touchscreen with 400 lux, which offers high visibility under strong and direct light
  • Supplement lighting with adjustable brightness
  • Multiple communication methods: TCP/IP, RS485, RS232, Wi-Fi (optional)
  • IP68 dust-proof and waterproof standard and IK04 vandal-proof standard
  • Wide range of working temperature (-30 ~ 60°C; -22 ~ 140°F)
  • Consistent and reliable anti-corrosion protection: the plastic part of the terminal was not cracked and the metal part was not corroded after the salt fog test using 5% NaCl of around 6.5-7.2 pH at 35°C for 240 hours
Capacity
Faces 30,000 (standard) / 50,000 (optional)
Users 50,000
Transactions 1,000,000
User Photos 20,000
Event Photos 10,000
Compatibility Security Relay Box / Wiegand / RS485 / RS232 Slave Reader / With FP / RFID / Barcode (optional) / ZKBioSecurity Software
Standard Functions Access Levels, Groups, Holidays, DST / Duress Mode, Anti-Passback / Record Query, Custom Wallpaper & Screen Saver, Tamper Switch Alarm

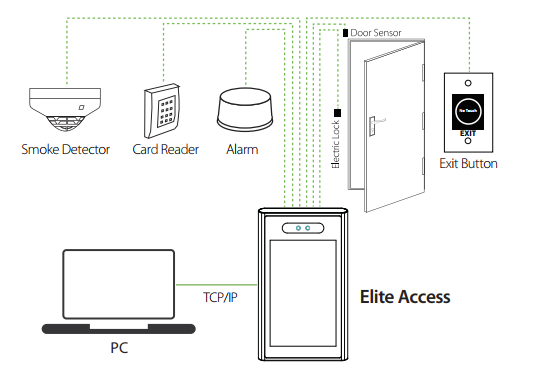

Access Control Interfaces Lock Relay Output / Alarm Output / Auxiliary Input / Exit Button / Door Sensor
Special Functions IP68 & IK04
Corrosion Resistant (GB/T2423.17-2008)
0.3s High Speed Facial Recognition
Alive Body Detection
HTTPS Encryption (optional)
Event Snapshot
Communication TCP / IP, RS485 / RS232 / Wiegand Input / Output / Wi-Fi (optional)
Power
Operating Voltage 12V DC
Current Draw <2,000mA
Hardware 900MHz Dual Core Customized CPU
512MB RAM / 8G Flash
125KHz EM Reader / 13.56MHZ MF (optional)
2MP WDR Low Light Camera
Hi-Fi Audio
Microwave Distance Detection Sensor
8" High Brightness IPS Touch LCD
Reset Button & Tamper Switch
Additional Information
Face Algorithm ZKLiveFace 5.8
Working Temperature -30°C ~ 60°C (-22°F ~ 140°F)
Working Humidity ≤93%
Storage Temperature -40°C ~ +65°C -40°F ~ +149°F)
Storage Humidity ≤93%
Net Weight 1,483g
Dimensions (H*L*D) 245.6*144*25.0mm
';

Elite Access Datasheet

0.33 Mb Data Sheet
2020-02-24

Elite Access User Manual

5.96 Mb User Manual
2020-02-24

Elite Access Quick Start Guide

1.29 Mb Quick Start Guide
2020-02-24
