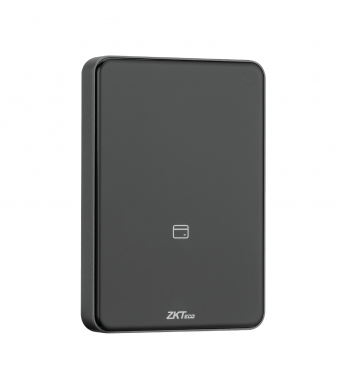

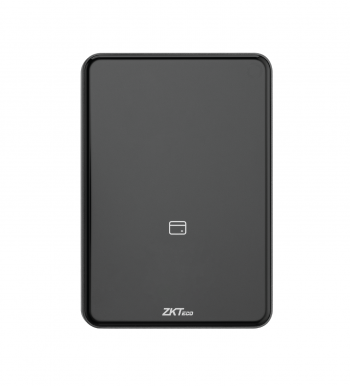

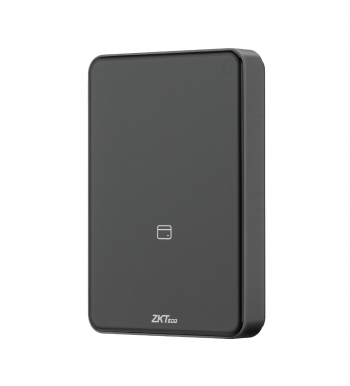

CR100RW is a high-performance contactless RFID reader/writer designed for access control and time & attendance systems. Combining 125 kHz proximity card and 13.56 MHz smart card read and write capability, data encryption, and batch card issuance, the CR100RW delivers all essential functions within a single device. Equipped with a powerful SDK, it supports running applications directly on the reader and enables on-site firmware upgrades, ensuring seamless integration and simplified maintenance.
|
Model |
CR100RW |
| Operating Frequency | 13.56 MHz +125 kHz (Dual-Frequency) |
| Supported Card Type | ID card, IC card, DESFire card, CPU card, FeliCa, ISO/ IEC 15693 tag, NFC Tag, CEPAS card and NTAG |
| Reading Time | ≤500 ms (typical) |
| Reading Distance | 0~10mm(depending on environment and transponder) |
|
Communication Interface |
USB 2.0 (Type-C) |
| Audio Indicator | Internal buzzer |
| LED Indicators | Red (card reading failed) Green (card reading successful) Blue (breathing blue light, standby) |
|
Working Voltage |
5V |
| Operating Temperature | -20℃ - 60℃ |
| Operating Humidity | 10%-90% RH (non-condensing) |
| Dimensions | 112 mm × 78 mm × 21.9 mm |
| Certifications | CE, FCC, Equivalent to RoHS |
