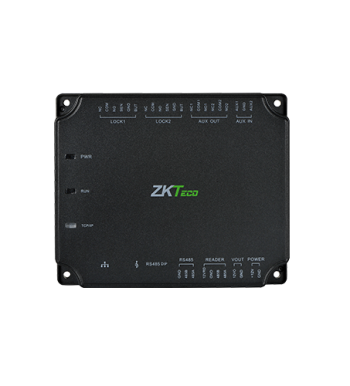

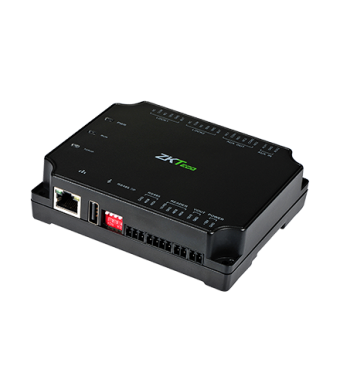

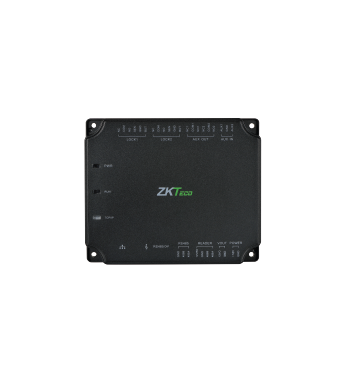

C2-260
  • Compact size
  • Communication: TCP/IP, RS485 (extension), RS485 (reader)
  • Controlling two doors by default; max. 10 (with DM10s)

C2-260 is an IP-based two doors mini control panel. It supports TCP/IP communication through LAN or WAN network, and RS485 communication which allows an extension to RS485 devices like DM10, AUX485, WR485.

The series is a perfect match for the web-based software ZKBioAccess to provide RFID/ Biometric Security solution. C2-260 can control two doors by default. It can extend to 8 DM10s at most that it can support up to 10 doors.

  • Compact size
  • Communication: TCP/IP, RS485 (extension), RS485 (reader)
  • Controlling two doors by default; max. 10 (with DM10s)
  • Wiegand Reader: WR485 (RS485 to Wiegand)
  • AUX IN: extend to 4 (AUX485)
  • Advanced Access Control
Model C2-260
Number of Doors Supported by Default 2
Number of Auxiliary Inputs 2
Number of Auxiliary Outputs 2
RS485 Extension Port 1
RS485 Reader Port 1
Number of Readers Supported 4
Types of Readers Supported RS485 card reader, Wiegand reader (WR485)
DM10 (Single-Door Extension Board) (Optional) Max. 8
AUX485 (RS485-4 Aux. IN Converter) (Optional) 2
WR485 (RS485-Weigand Converter) (Optional) 4
Card Capacity 30,000
Log Capacity 200,000
Communication TCP/IP, RS485
CPU 32-bit 1.0GHz
RAM 64MB
Power 9.6V - 14.4V DC
Dimensions (L*W*H)  116.47*96.49*31.40 mm
Operating Temperature -10°C to 50°C / 14°F to 122°F
Operating Humidity 20% to 80%
';
