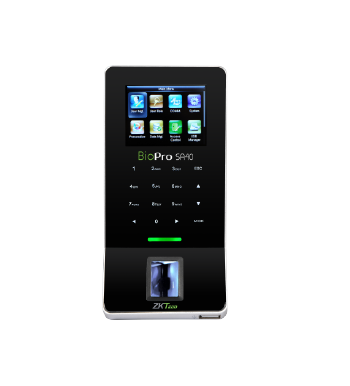

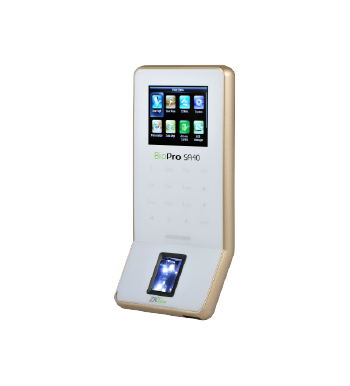

BioPro SA40

2.4-inch TFT color screen and Touch keys
Ultra thin and elegant design
Network interface by TCP/IP or RS485

BioPro SA40 is an ultra-thin fingerprint time attendance and access control terminal with BioID sensor and Wi-Fi, which offers unparalleled performance with an advanced algorithm for reliability, precision, and excellent matching speed. BioPro SA40 features the fastest commercial-based fingerprint matching algorithm and ZK high-performance, high-image quality infrared detection fingerprint sensor.

BioPro SA40 provides a superior touching experience with touch keypad and offers flexibility for standalone installation or with any third-party access control panel that supports standard wiegand signal. TCP/IP, RS485, and Wi-Fi are also available that the device can be used in different networks.

2.4-inch TFT color screen and Touch keys
Ultra thin and elegant design
Full Access Control Features: Anti-passback, access control interface for 3rd party electric lock, door sensor, exit button, alarm
Standard Wi-Fi
Network interface by TCP/IP or RS485
Built-in auxiliary input with enhanced flexibility to link with wired detector or emergency switch
Multiple Verification Modes: Multi-verification methods (card is optional) providing user various choices

Display	2.4-inch TFT LCD Color Screen
Fingerprint Capacity	3000
Card Capacity	5000(Optional) ID or mifare card
Transaction Capacity	30,000
Sensor	BioID Sensor/ Z-ID Sensor (optional)
Algorithm Version	ZKFinger VX10.0
Communication	RS232/485, TCP/IP, USB-host,Wi-Fi
Access Control Interface	3rd Party Electric Lock, Door Sensor, Exit Button, Alarm
Wiegand Signal	Input, Output
Aux. Input	1ea for linkage function
Functions	DST, Automatic Status Switch, Record query, T9 input, 14 digit user ID, Anti-passback, Scheduled-Bell, ADMS, Printer(Optional)
Power Supply	12V DC,3A
Operating Temperature	0 °C- 45 °C
Operating Humidity	20%-80%
Dimension(LxWxH)	159.8x80.7x19.4mm
