AMTL-UHF-Mini Tag
AMTL-UHF-Tag

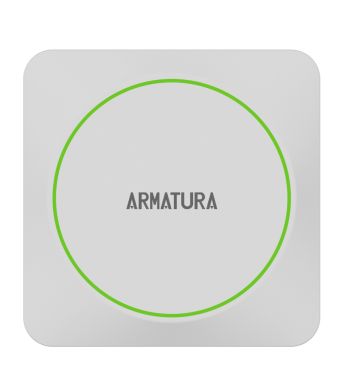

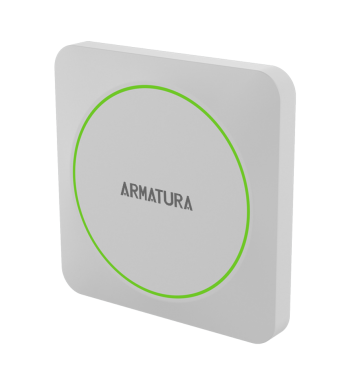

AMTL-UHF-10 is a long-range RFID reader for access control. The design of this UHF standalone readervterminal is an upgraded version of AMTL-UHF-10. LED interactive experience in different scenarios, and easy to operate. Supports Armatura One Security Platform, can debug parameters on the reader web, and reached IP66 protection level rating for waterproof and dust proof. AMTL-UHF-Tag and AMTL-UHF Mini Tag is an ultra-high frequency chip card with higher reading rate, long reading distance, high security, expandable storage, and better sensitivity. These two tags can be used with UHF reader.
Armatura One is the ultimate “All-in-One” web-based security platform developed by Armatura. It contains multiple integrated modules: Personnel, Access Control,
Time & Attendance, Elevator, Visitor, Parking Management, Video Management System, Office, Entrance Control, FaceKiosk, Defence, Data Monitor, Building Automation and Intrusion.
Card Capacity |
5000 cards |
CapacityLog |
30,000 Transactions |
Reading Distance |
TCP / IP |
Access Control Interface |
Wiegand In, RS485,3rd Party Electric Lock, Door Sensor, Exit Button, Alarm |
Dimension |
12.17" W x 12.17" L x 2.74" H(309 x 309 x 69.5mm) |
Access Control Functions |
LevelStandard access functions, anti-passback |
Operating Frequency |
9dBi |
Output Power |
10dBm to 30dBm |
PowerMaximum Power Cosumption |
<2W |
CosumptionProtection Level |
Weather & Dust Proof Protection Rating compliant with IP66 |
Supporting Software |
Armatura One Security |
Operating Voltage |
DC 9V to 12V |
