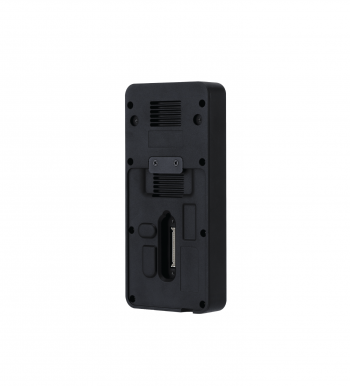

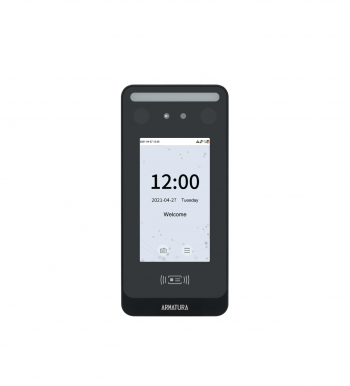

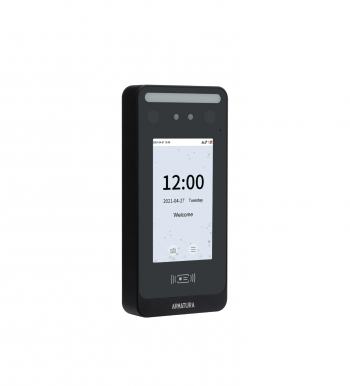

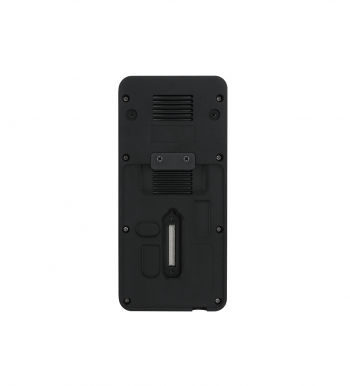

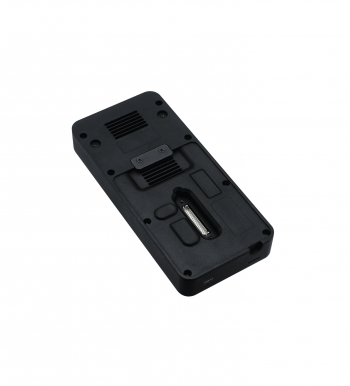

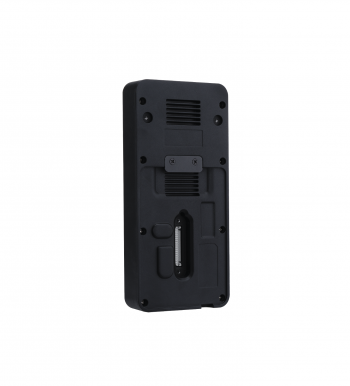

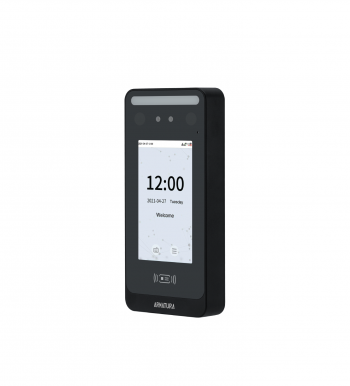

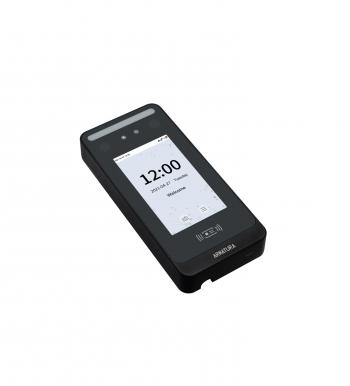

OmniAC30
All Weather Outdoor Multi-tech Smart Standalone Terminal
- Multi-Biometric technology combining palm and face recognition
- IP66 water & dustproof protection rating
- Supports 125 kHz and 13.56 MHz frequency credentials
- Supports multiple mount types (Single gang/ European/ Asian box)
| Primary Power | 12 to 24 VDC (3A min @12V) |
| POE | Supported |
| RS-485 connection | Port 1: RS-485 standard/ OSDP V2.1.7 |
| CPU | 1.2GHZ Quard Core ARM Processor |
| NPU | 2.4TOPS NPU |
| Memory | 8 GB Flash + 1 GB RAM |
| Camera | Face Automatic Exposure / Palm Automatic Exposure / Face tracking / Palm tracking / WDR / HDR / 50Hz to 60Hz Automatic Adaption / Dual Camera / CMOS 2MP （Output image 720P*1280P） |
| Primary Host Communication | Ethernet: 10/ 100 Mbps, auto MDI/ MDIX Complies with TLS 1.2 for end-to-end secure communication channel |
| Ethernet network connection | Port 1:10/ 100 Mbps, auto MDI/ MDIX |
| Data Protection | Complies with TLS 1.2 for end-to-end secure communication channel (Secured Communication between Standalone Terminal & Server) AES128 (Secured Communication between the Standalone Terminal & OSDP Readers & Access Control Panels) |
| Number of Ports | 1*TCP/ IP / 1*RS-485 / Input: 4ch TTL Inputs / Output: 1ch TTL Output / 2 relays |
| Inputs | Wiegand in, Button, Sensor in, Aux Input |
| Outputs | 2 relays with dry contacts, Wiegand Output, Lock, Alarm |
| Normally Open Contact Rating | 5A @30Vdc resistive |
| Normally Closed Contact Rating | 5A @30Vdc resistive |
| Tamper Switch | Magnetic tamper detection system |
| On-Board Monitor | Size: 5", Resolution: 1280*720, Touch Screen，TFT |
| Audio Indicator | Internal speaker with adjustable intensity (Configurable on UI) |
| MIC | Supported |
| Video Phone | Supported |
| User Capacity | 50,000 |
| RFID Card Capacity | 50,000 (1:N) / 50,000 (1:1) |
| Maximum RFID Card Number Length | Wiegand In & Out (up to 64 bits) |
| Face Capacity | 10,000 (1:N)/ 50,000 (1:1) |
| Palm Capacity | 5,000 (1:N)/ 20,000 (1:1) |
| RFID Reading Distance | 13.56MHz & 125kHz: Up to 1.96"/ 50 mm (depending on environment and transponder) |
| Face Recognition Distance | Dual Camera Liveness Detection On: 15.7" - 55.1" (40cm - 140cm) Single Camera Liveness Detection On: 15.7" - 78.7" (40cm - 200cm) |
| Palm Recognition Distance and Angle Tolerance | 7" - 15.7" (18cm - 40cm) / Pitch +/35, Yaw +/- 60, Roll +/-35, Blend +/-30 |
| Face Recognition Speed | 100ms (Field Test Result) |
| Live Face Detection (Anti-Spoofing) | Support |
| Recommend Installation Height | Recommend Installation Height: 55" (140cm) (Using the plate with tilt angle) 59" (150cm) (Plate with horizontal angle) |
| Palm Recognition Speed | 140ms (Field Test Result) |
| Transaction Buffer | Transaction Buffer |
| Access group | 99 |
| On-Board Access Point Control | 1 access point on board |
| On-Board Reader Support | 1(OSDP over RS-485) or 1 (Wiegand Input) |
| Protection / Resistance | Weather & Dust Proof Protection Rating compliant with IP66 |
