Modern Aesthetic Design

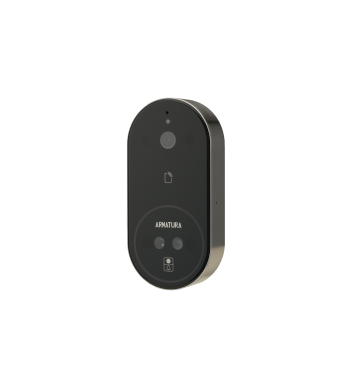

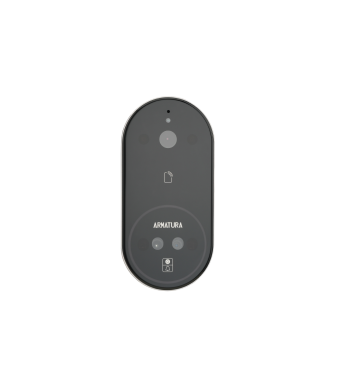

• The build of the FT10 blends a high-quality metal enclosure with a tempered glass panel. Frontier design, elegant oval arc profile, leading the new trend of intelligent identification terminal, to bring users a new practical and reliable experience.

Dual Installation Mode

• The FT10 terminal offers a dual installation mode. It can function as a standalone terminal, directly communicating with the Armatura One server via TCP/IP. It can also serve as a face-authentication reader (coming soon) when paired with AHSC-1000 and AHDU series controllers via OSDP over RS485 communication.

Superior Protection Level

• IP66 and IK07 Certified with IP66 Water and dustproof ratings, our readers are designed to withstand dust, dirt, and rain, ensuring reliable performance in challenging environments. Additionally, with a certified IK07 Vandal-proof rating, they offer enhanced protection against tampering and vandalism.

Advanced Security

• Secure communication: OSDP(V2.2) over RS-485 communication between the FT10 and access control panels. Using AES-128 encryption standards ensures the highest levels of data protection & security.Secured Data Storage: The utilization of Certified EAL6+ encryption chips elevates data protection performance to the highest security level, ensuring top-notch financial-grade security.

Supports Multi-Card Types

• Supports 125kHz and 13.56MHz frequency credentials. Supports various card types including EM, MIFARE, DESFire, FeliCa, HID Prox/iCLASS/Seos, etc.

Multi-tech Card & Mobile Credentials

• Supports multi-card types in a standard package with various optional RFID modules that cover up to over 10 extra advanced secured RFID protocols, which almost cover most of the end-user requests, enabling high flexibility for multi-card types and mobile credentials situations.

Wide Input Voltage

• The device is compatible with 12V-24V input voltages.

Multi-Factor Authentication Capability

• Offering credential options of palm, face, Mobile Credentials, physical cards and QR codes. *EM, MIFARE, DESFire, FeliCa, HID Prox/iCLASS/Seos, etc. *Integrate advanced multiple biometric authentication methods such as palm and face code scanning for visitors & employees. *QR code scanning for visitors & employees.

Video Intercom

• The FT10 supports SIP video intercom function suitable for most visitor scenarios. Two-way audio streaming with echo and noise cancellation lets you easily communicate with visitors.

Installation Made Easy

• Robust design & form factor makes this device easy to install. PoE option allows for minimal use of cabling and lowers the cost of installation. FT10 supports multiple mount types (Single gang/ European/ Asian box) to meet most scenarios worldwide. Mounting accessories for speed gates are also available.

Unrivaled Palm and Face Authentication Performance

• ARMATURA’s Multi-Biometric technology combines palm and face authentication with our unique deep learning algorithm to give users an efficient authentication experience. Industry-leading combination of visible and NIR infrared authentication technology provides exceptional authentication accuracy and he industry's top-notch anti-spoofing protection.

Sleep-and-Wake Mode

• In sleep mode, the breath light flashes alternately. In wake mode, the ring light is highlighted white. This setting can reduce the unnecessary heat loss caused by the machine in the case of undetected, better protect the machine and long-term performance.

Better Images, Faster Authentication

• This device supports palm/ face tracking, which can more intelligently capture the user's biometrics and prevent the user's biometrics from continuing to be
  compared after verifying. At the same time, the palm/ face Automatic Exposure function enables the device to obtain higher-quality images which improves the authentication accuracy.
