ZKX10080
ZKX10080
  • Adjustable belt speed
  • Fingerprint console board
  • Video surveillance

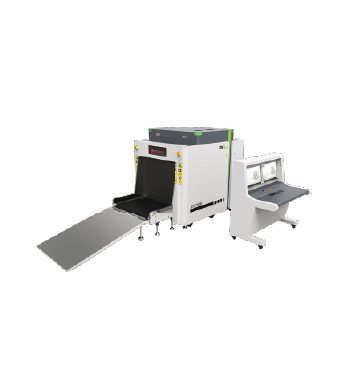

ZKX10080 X-ray inspection system increases the operator’s ability to identify potential threats; the device is designed to scan the objects up to a size of 100 × 80cm. It uses reliable high-quality dual-energy X-ray generator. With the superb image algorithm, ZKX10080 could offer clear scanning image, which allows operators to identify potential threat items visually. Also, ZKX10080 equipped with a lowered conveyor height to make it easier to put the luggage on.

ZKX10080 has innovative biometric identify function for operators, improving the security of a system and preventing the operator from forgetting the password. The conveyor could be folded to reduce the package volume so that could save the transportation cost. With modernly designed side door, the maintenance would be much easier.

Highlights

  •  Adjustable belt speed
  • Large baggage and parcel screening
  • Folding design for easy loading

Standard

  • Fingerprint console board
  • Dual monitor operation desk

Optional

  • Video surveillance
  • Face recognition
  • Auto-start function
  • Bi-directional scanning
  • Rat expelling function

SPECIFICATIONS

Tunnel Size

W1006mm × H803mm

Speed

0.2 - 0.4 m/s

Height of Transmission Belt

370 mm

Maximum Load

200 kg (Adequate distribution)

Wire Resolution

38 AWG

Space Definition

Horizontal Φ1.0mm \ Vertical Φ2.0mm

Penetrate Definition

32 AWG

Penetration

34mm steel board

Monitor

21.5 inch LED X 2

System Function

High-density alert, Explosive/ Drug auxiliary detect, TIP, Luggage counter, date/time display, User management, Training.

Film Safety

ASA/ISO1600 standard of film safety



X-RAY SYSTEM

Tube Voltage

160 Kv

Cooling

Seal oil cooling / 100%

Radiation Leak Dosage

0.2 μ Gy/h (5cm from the surface)



INSTALLATION SPECIFICATION

Package Size

L2200mm × W1500mm × H1750mm

Package Size of Console Desk

L1320mm × W900mm × H1320mm

Package Weight

1150KG+135KG (Console desk)

Power Consumption

1 kVA

Noise

53.8 dB(A)
